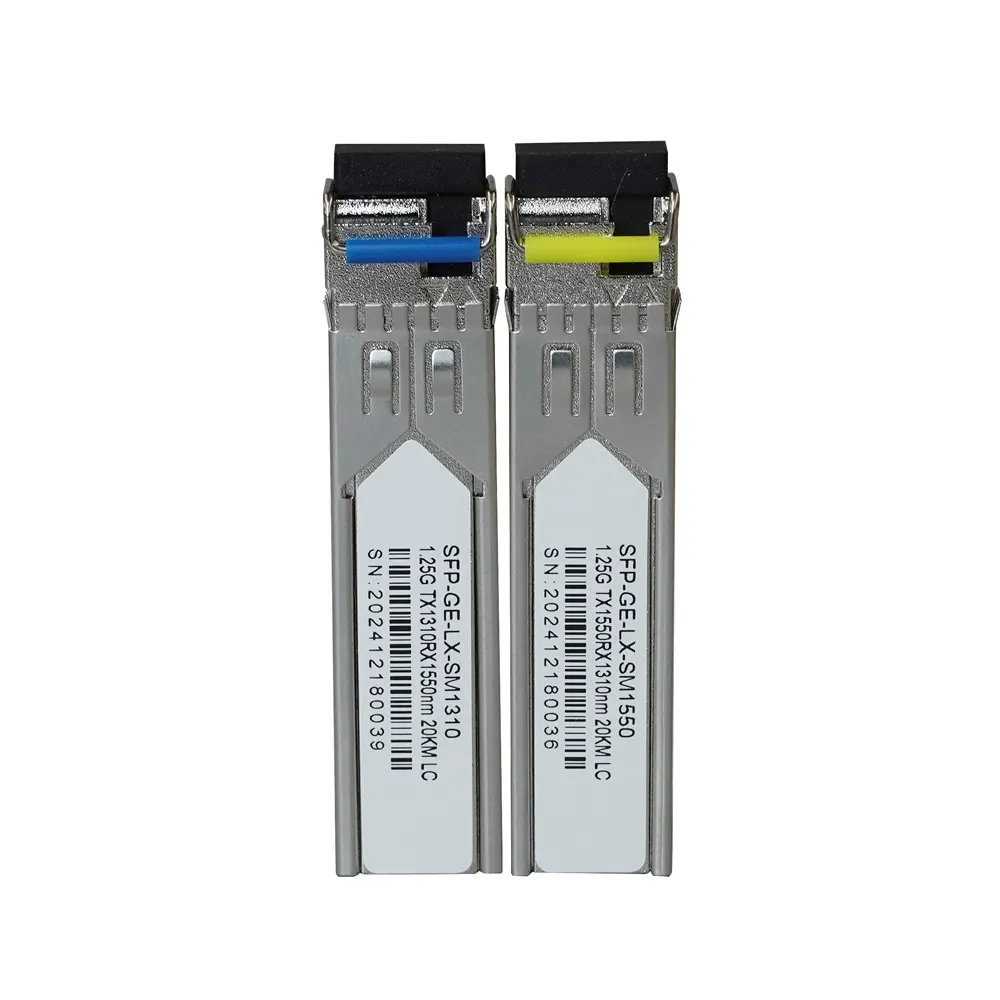

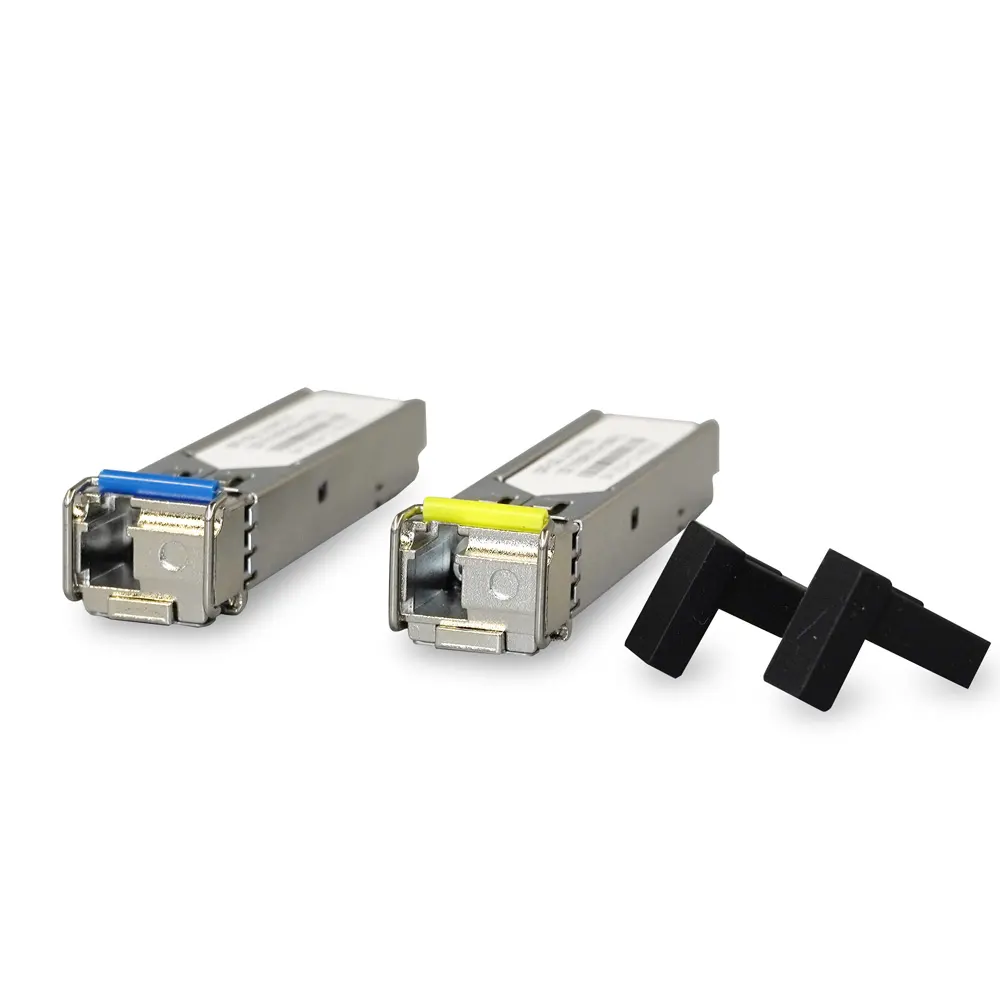

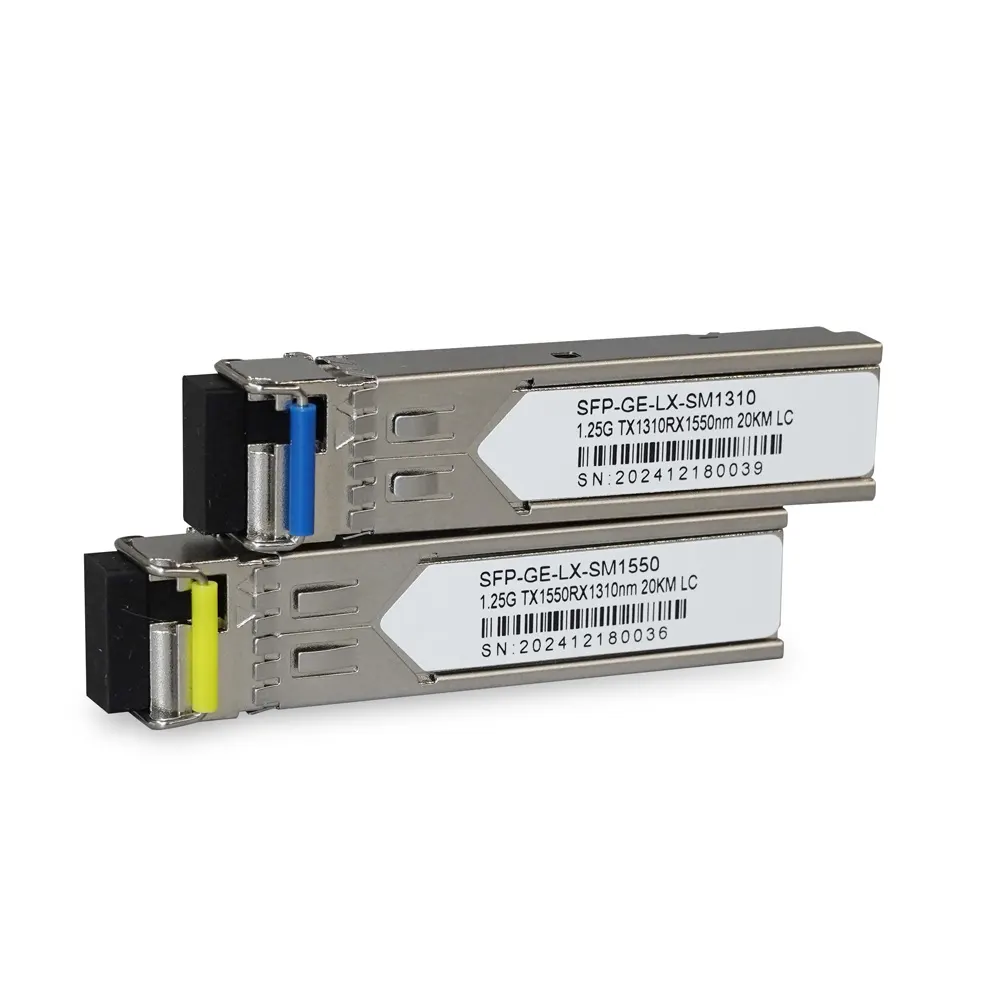

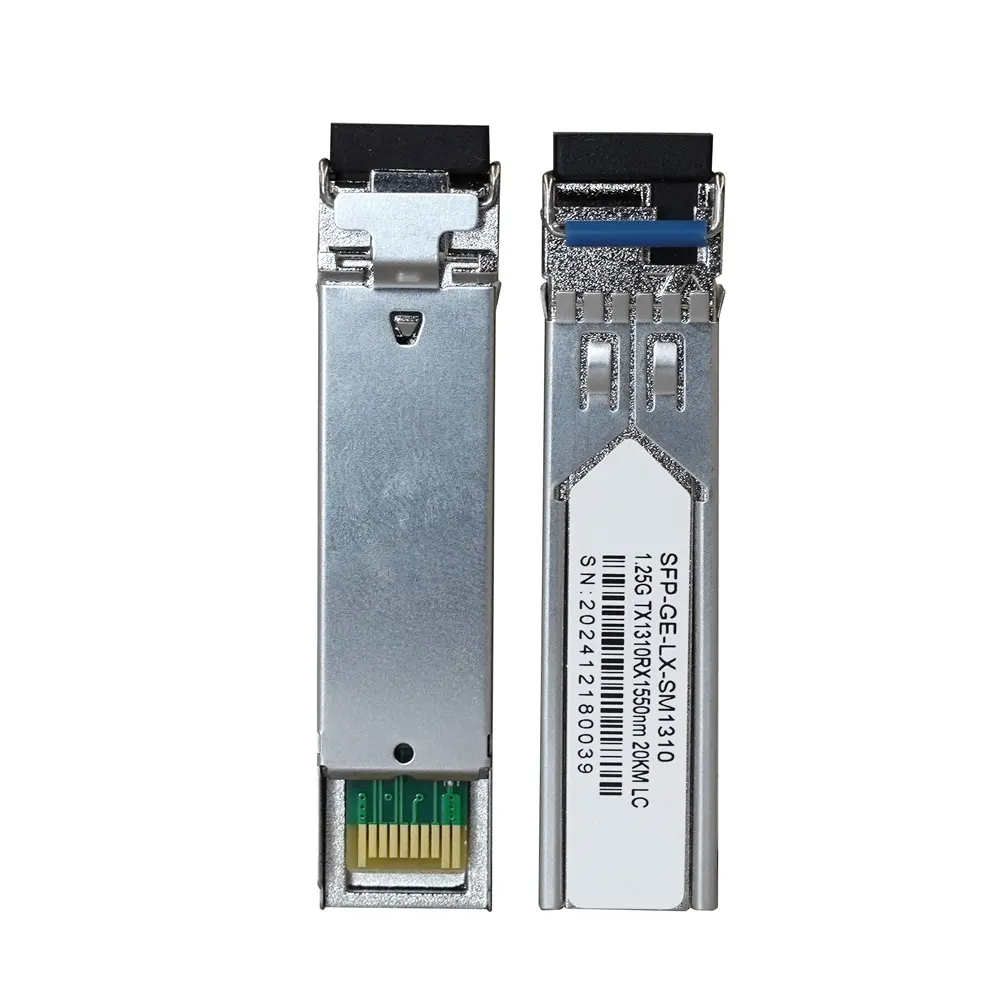

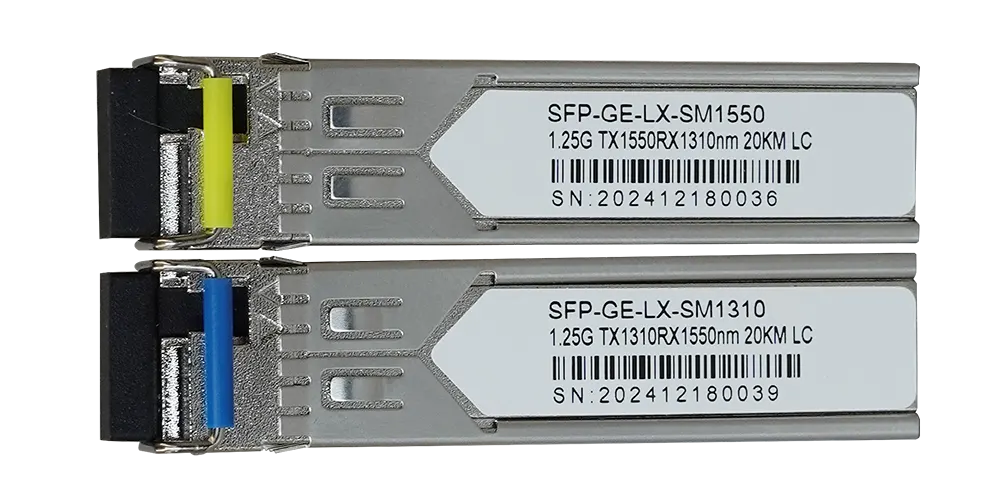

1.25G SFP Module BIDI – Transceiver for Gigabit Ethernet and Fibre Channel
- Data Rate: Up to 1.25Gb/s
- Connector: Single LC
- Transmitter Wavelength TX1310/RX1550: 1310nm FP laser transmitter
- Transmitter Wavelength TX1550/RX1310: 1550nm DFB laser transmitter
- Receiver Wavelength TX1310/RX1550: 1490nm InGaAs PIN receiver
- Receiver Wavelength TX1550/RX1310: 1310nm InGaAs PIN receiver
- Transmission Distance: Up to 20km on 9/125µm SMF
- Power Supply: Single +3.3V
- Power Dissipation: <800mW
Free Quote
Product Overview
The 1.25G SFP Module BIDI is a high-speed, bidirectional transceiver designed for Gigabit Ethernet and 1x Fibre Channel applications. With a maximum transmission distance of 20 kilometers on single-mode fiber (SMF), this module is ideal for long-distance data communication. It features a single LC connector, hot-pluggable SFP footprint, and is available in both commercial and industrial temperature ranges.
Key Features of 1.25G SFP Module BIDI
- Data Rate: Up to 1.25Gb/s
- Wavelength:
- TX1310/RX1550: 1310nm FP laser transmitter / 1490nm InGaAs PIN receiver
- TX1550/RX1310: 1550nm DFB laser transmitter / 1310nm InGaAs PIN receiver
- Transmission Distance: Up to 20km on 9/125µm SMF
- Power Supply: Single +3.3V
- Power Dissipation: <800mW
- Operating Temperature:
- Commercial: 0°C to +70°C
- Industrial: -40°C to +85°C
- Compliance: SFP MSA SFF-8074i, RoHS, FCC, IEC, FDA
Applications
The SFP Module is suitable for a wide range of applications, including:
- Gigabit Ethernet
- 1x Fibre Channel
- Long-distance data communication
Technical Specifications of 1.25G SFP Module BIDI
| Parameter | Value |
|---|---|
| Data Rate | 1.25Gb/s |
| Wavelength | 1310nm/1550nm (TX/RX) |
| Transmission Distance | Up to 20km |
| Connector | Single LC |
| Power Supply | +3.3V |
| Power Dissipation | <800mW |
| Operating Temperature | Commercial: 0°C to +70°C Industrial: -40°C to +85°C |
| Compliance | RoHS, FCC, IEC, FDA |
Why Choose Our SFP Module?
Our 1.25G SFP offers:
- High Performance: Reliable data transmission at 1.25Gb/s over 20km.
- Flexibility: Available in both commercial and industrial temperature ranges.
- Compliance: Meets industry standards including RoHS, FCC, and IEC.
- Low Power Consumption: Power dissipation of less than 800mW.
