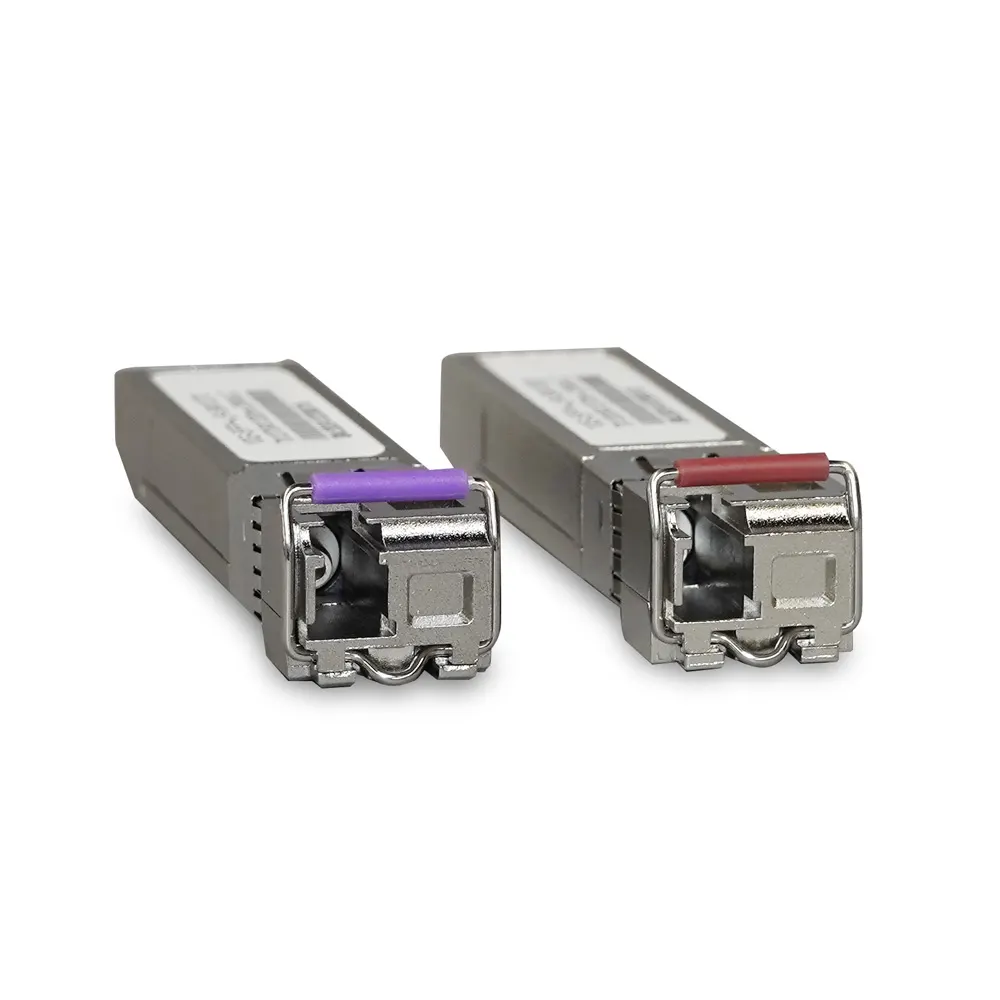

10G SFP+ BiDi Transceiver – 20km Single Fiber 10G Ethernet Module
- Form Factor: SFP+
- Data Rate: 1~11.3Gbps (No CDR) / 9.95~11.3Gbps (With CDR)
- Wavelength: TX1270/RX1330 or TX1330/RX1270
- Transmission Distance: Up to 20km over SMF
- Connector Type: LC/UPC
- Laser Type: DFB Laser
- Receiver Type: PIN-TIA
- Diagnostics: 2-wire interface for digital diagnostic monitoring
- Power Supply: Single +3.3V
- Operating Temperature: Commercial 0~70°C / Industrial: -40~85°C
- Compliance: IEEE 802.3ae, RoHS6
- Dimensions: Standard SFP+ form factor
- Applications: 10G Ethernet, Data Centers, Telecom, and Enterprise Networks
Free Quote
Product Overview
The 10gb sfp+ transceiver BiDi is a high-performance optical module designed for 10 Gigabit Ethernet applications. It supports single-fiber bidirectional communication, enabling data transmission over distances of up to 20km using single-mode fiber (SMF). With wavelengths of TX1270/RX1330 or TX1330/RX1270, this transceiver is ideal for data centers, telecom, and enterprise networks.
Key Features of 10gb sfp+ transceiver
- High-Speed Data Transmission: Supports data rates from 1Gbps to 11.3Gbps, ensuring compatibility with 10G Ethernet standards.
- Single-Fiber BiDi Technology: Utilizes a single fiber for both transmitting and receiving data, reducing fiber infrastructure costs.
- Long Transmission Distance: Capable of transmitting data up to 20km over single-mode fiber.
- DFB Laser & PIN-TIA Receiver: Ensures high reliability and performance in various network environments.
- Digital Diagnostic Monitoring: Integrated 2-wire interface for real-time monitoring of transceiver performance.
- Wide Operating Temperature Range: Available in both commercial (0~70°C) and industrial (-40~85°C) temperature ranges.
- RoHS6 Compliance: Environmentally friendly and compliant with RoHS6 standards.
Technical Specifications of 10gb sfp+ transceiver
| Parameter | Details |
|---|---|
| Form Factor | SFP+ |
| Data Rate | 1~11.3Gbps (No CDR) / 9.95~11.3Gbps (With CDR) |
| Wavelength | TX1270/RX1330 or TX1330/RX1270 |
| Transmission Distance | Up to 20km over SMF |
| Connector Type | LC/UPC |
| Laser Type | DFB Laser |
| Receiver Type | PIN-TIA |
| Power Supply | Single +3.3V |
| Operating Temperature | Commercial: 0~70°C / Industrial: -40~85°C |
| Compliance | IEEE 802.3ae, RoHS6 |
Applications
The 10G SFP+ BiDi Transceiver is widely used in:
- Data Centers
- Telecommunication Networks
- Enterprise Networks
- High-Speed Ethernet Applications
Ordering Information
Choose from the following models based on your requirements:

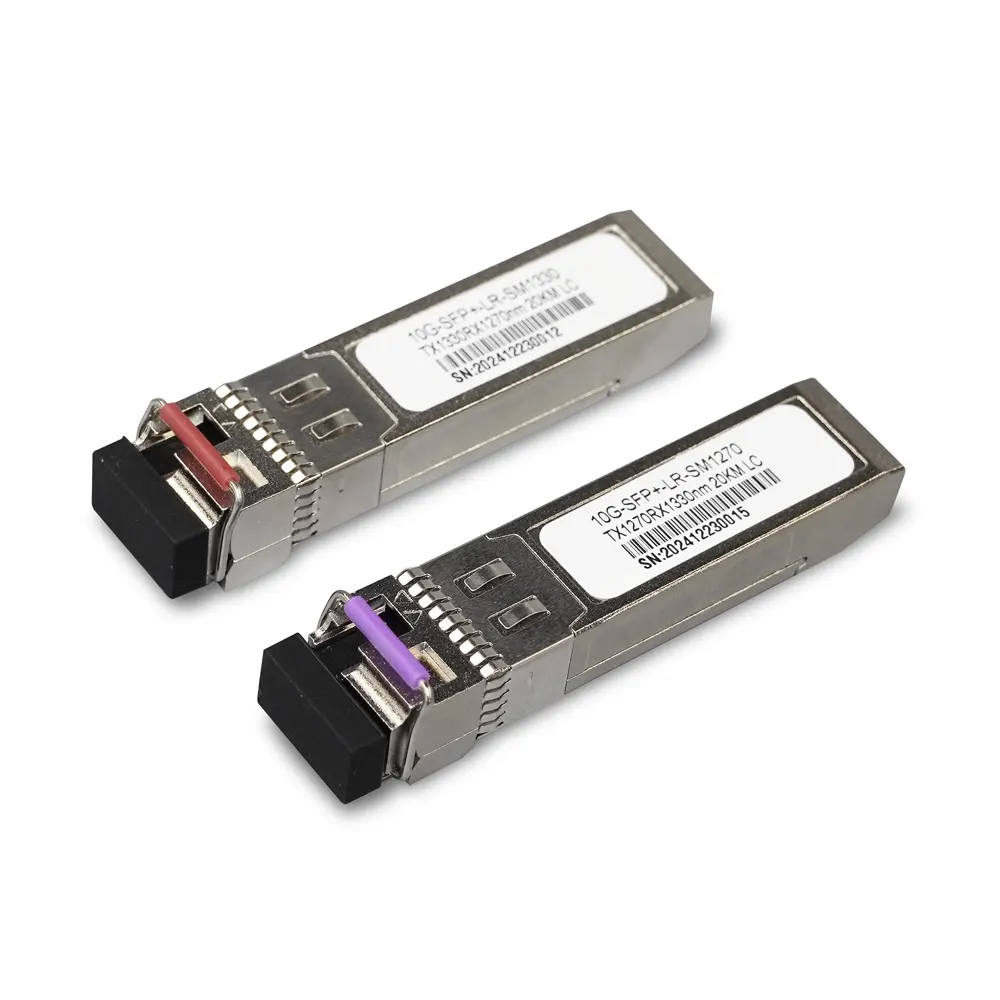

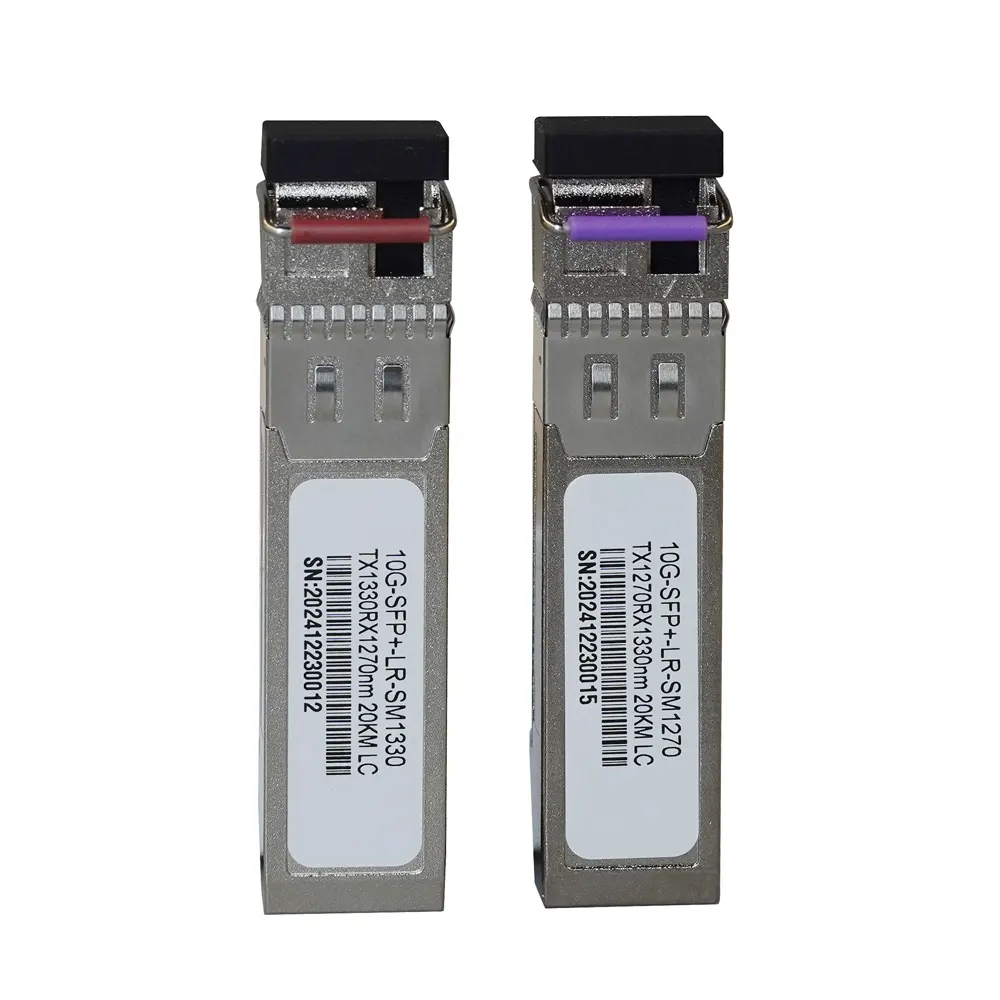

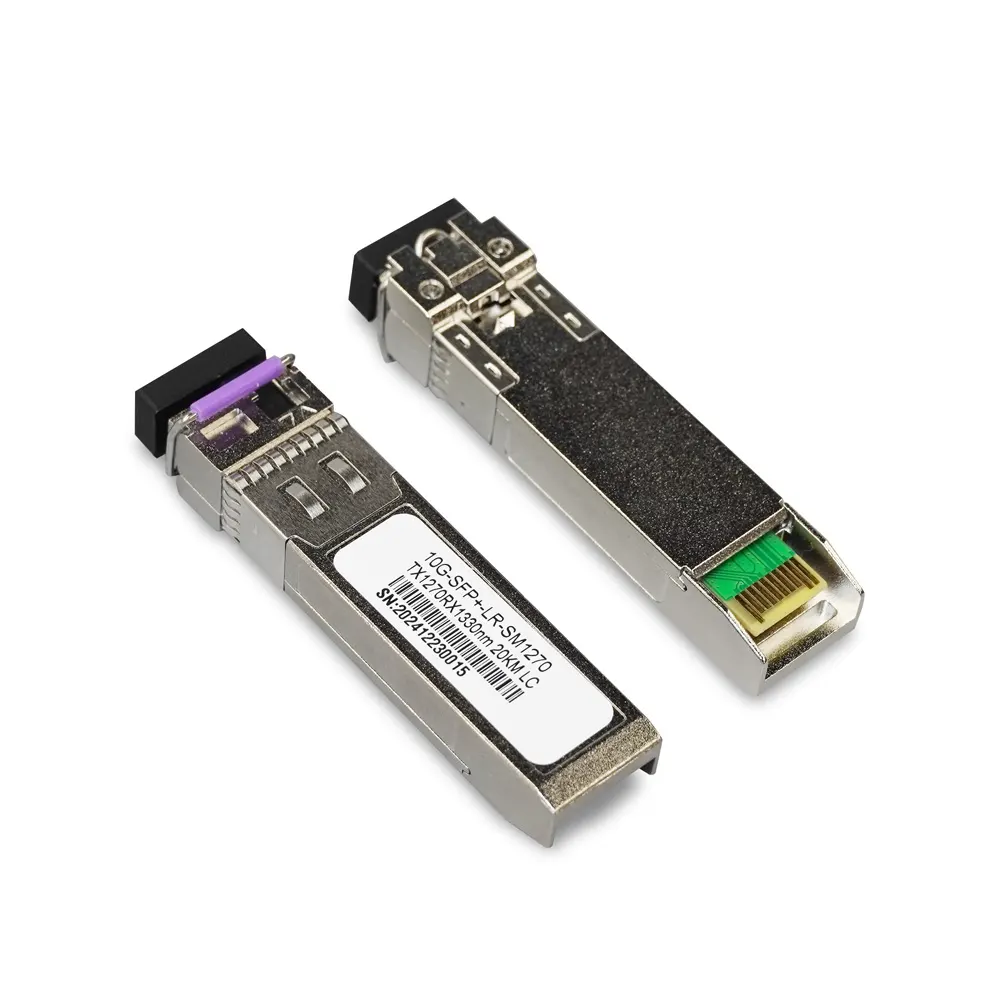

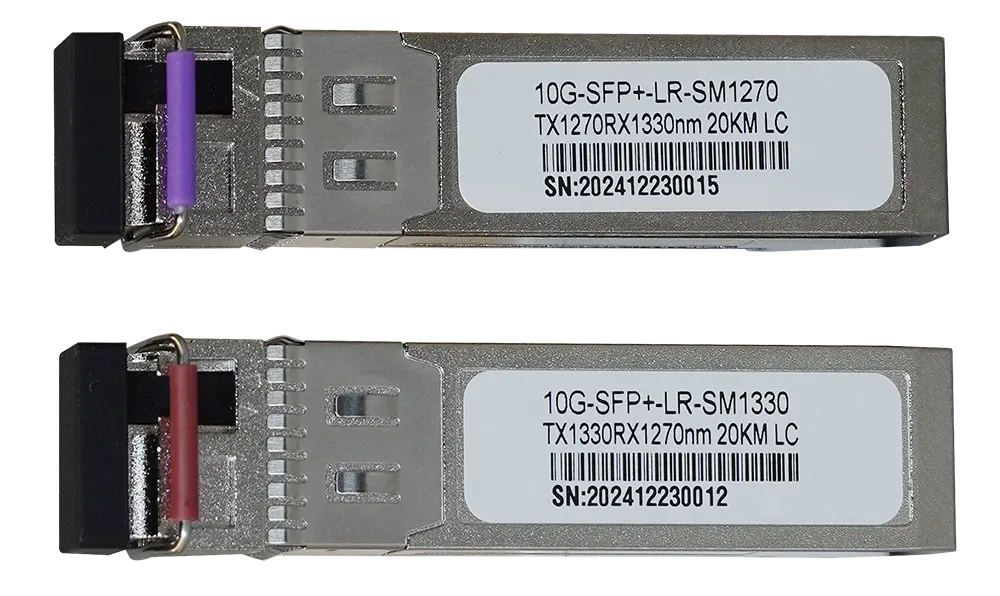

- SFP+ 10G BIDI 20KM (TX1270/RX1330): Commercial or Industrial temperature, with or without CDR.

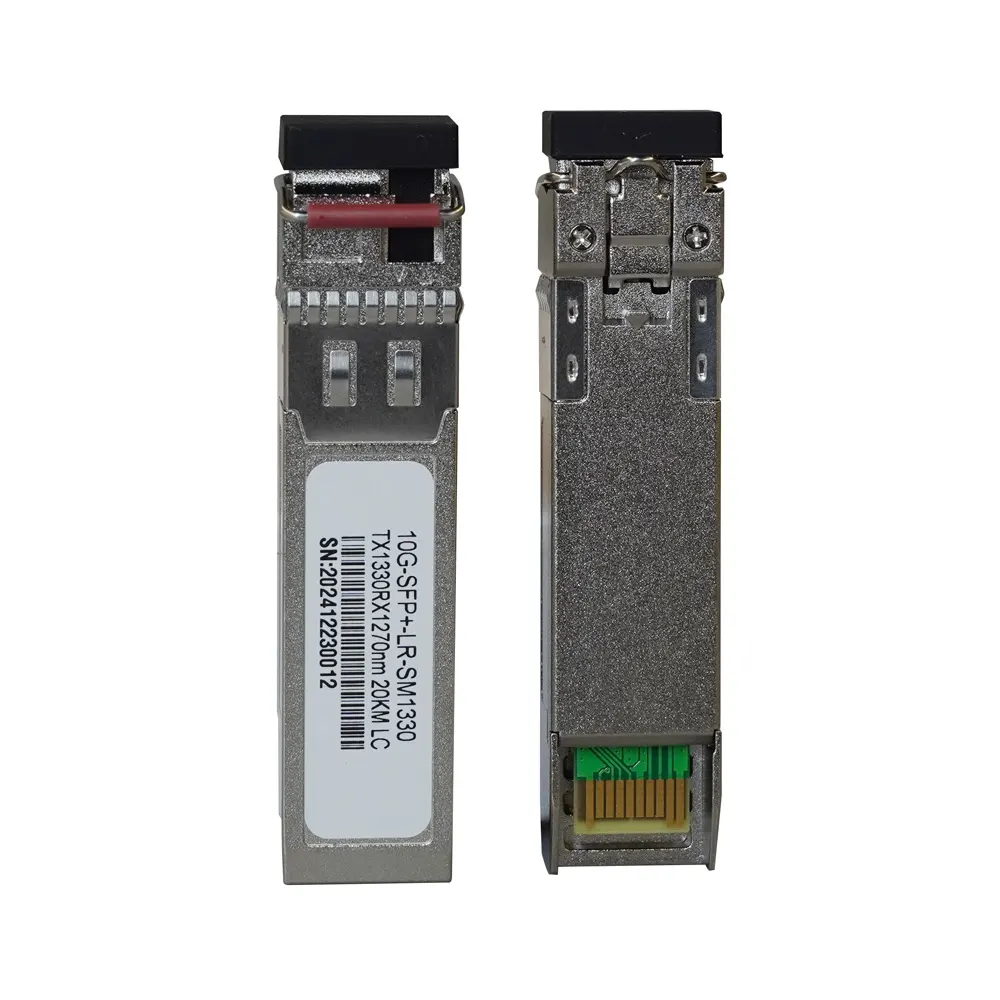

- SFP+ 10G BIDI 20KM (TX1330/RX1270): Commercial or Industrial temperature, with or without CDR.
