10GPON XGPON Mini ONU Router – 1GE + 2.5GE LAN Port

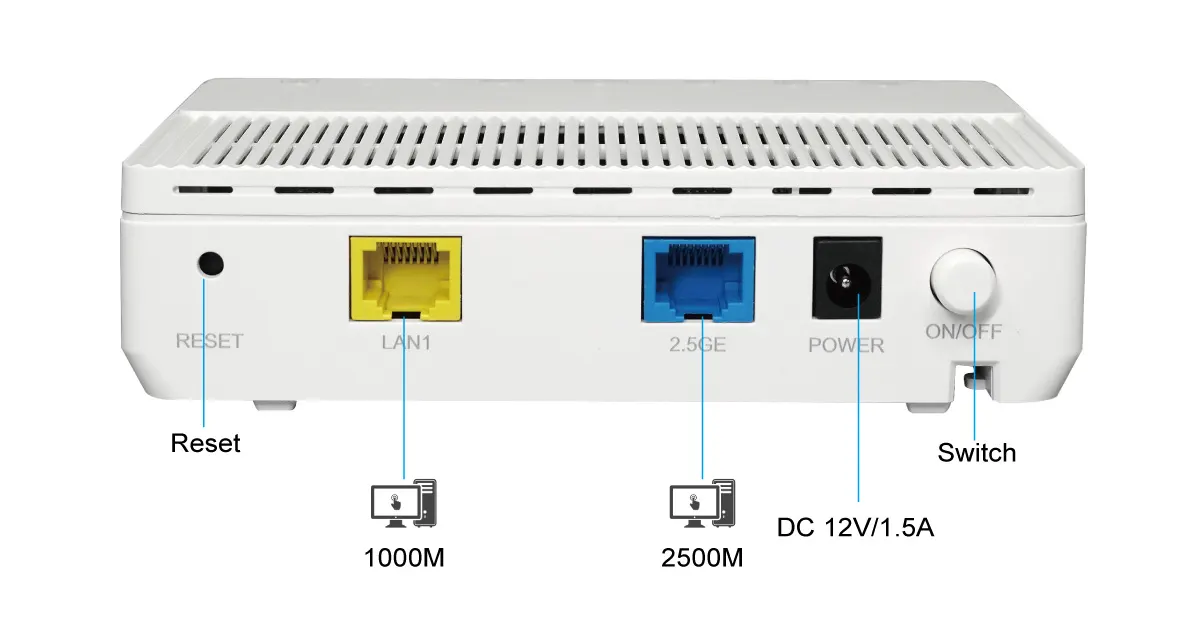

- 1 2.5G RJ45 port
- 1 1G RJ45 port
- 1 Reset button
- 1 Power button
- 1 LED button
- 1 SC/UPC or SC/APC interface
- 1 DC interface
- Dimensions: 130mm x 90mm x 38mm (Length x Width x Height)
- Power consumption: ≤10W
- Power supply: 12V/1A
- XGPON port wavelength: upstream 1270 nm, downstream 1577 nm
- XGPON downlink rate: 10Gbps, uplink rate: 2.5Gbps
Free Quote
Overview
The 10GPON XGPON Mini ONU XG1200 is a high-performance ONU Router designed for enterprise campuses, video backhaul, and other high-demand scenarios. It offers a downstream transmission rate of 10Gbps and an upstream rate of 2.5Gbps, ensuring high-quality voice, data, and HD video services.
Key Features of 10GPON XGPON Mini ONU
- Dual Ethernet Ports: 1 x 2.5Gbps and 1 x 1Gbps RJ45 ports for high-speed connectivity.
- XGPON Support: Compliant with ITU-T G.987.3, G.988, and G.989 standards.
- Advanced QoS: Supports 8 queues with strict priority, rate limitation, and service flow classification.
- Layer 2 & 3 Features: Includes VLAN tagging, MAC learning, PPPoE, DHCP, NAT/NAPT, and IPv6/IPv4 dual stack support.
- Multicast Support: IGMP v2/v3, IGMP snooping, and MLD v1/v2 for efficient multicast traffic handling.
Technical Specifications of 10GPON XGPON Mini ONU
| Category | Specification |
|---|---|
| Hardware | 256MB Flash, 512MB DDR4, 130mm x 90mm x 38mm, ≤10W power consumption |
| Ports | 1 x 2.5G RJ45, 1 x 1G RJ45, 1 x SC/UPC or SC/APC, 1 x DC |
| XGPON Interface | Class B+, 10Gbps downstream, 2.5Gbps upstream, 1270nm/1577nm wavelengths |
| Management | OMCI, Web UI, TR069, Telnet/SSH, Dual-system software backup |
| Environment | Operating Temperature: 0℃ ~ 45℃, Storage Temperature: -20℃ ~ 70℃ |
Applications
The XG1200 is ideal for:
- Enterprise Campuses
- Video Backhaul
- High-Speed Internet Access
- VoIP and HD Video Services
