1GE EPON Mini ONU – Cost-Effective Fiber Optic Modem for FTTH Networks
- PON ports (1.25G) for fiber uplink connection.
- 1 10/100/1000M Ethernet port for connecting to user equipment.
- Power supply: 12VDC, power consumption is 6W.
- Working temperature: 0~55℃, storage temperature: -30~60℃.
- Relative humidity: 10-90% (non-condensing).
Free Quote
Product Overview

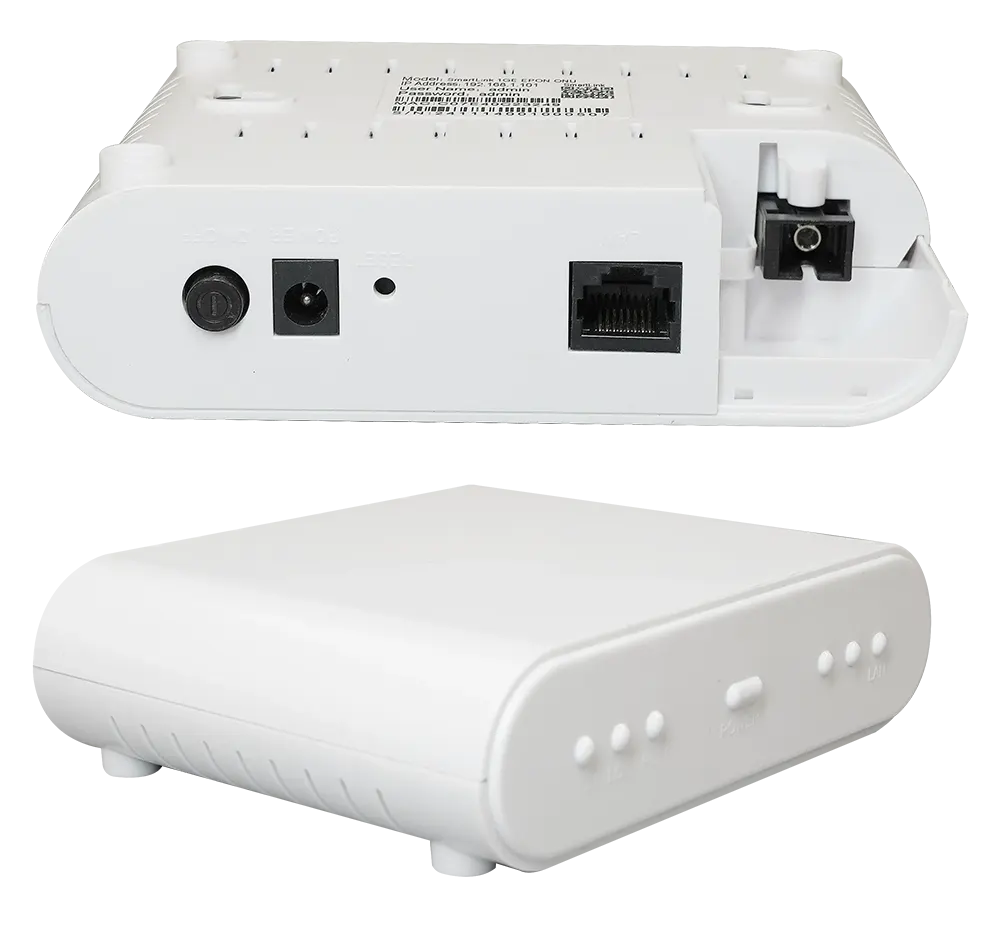

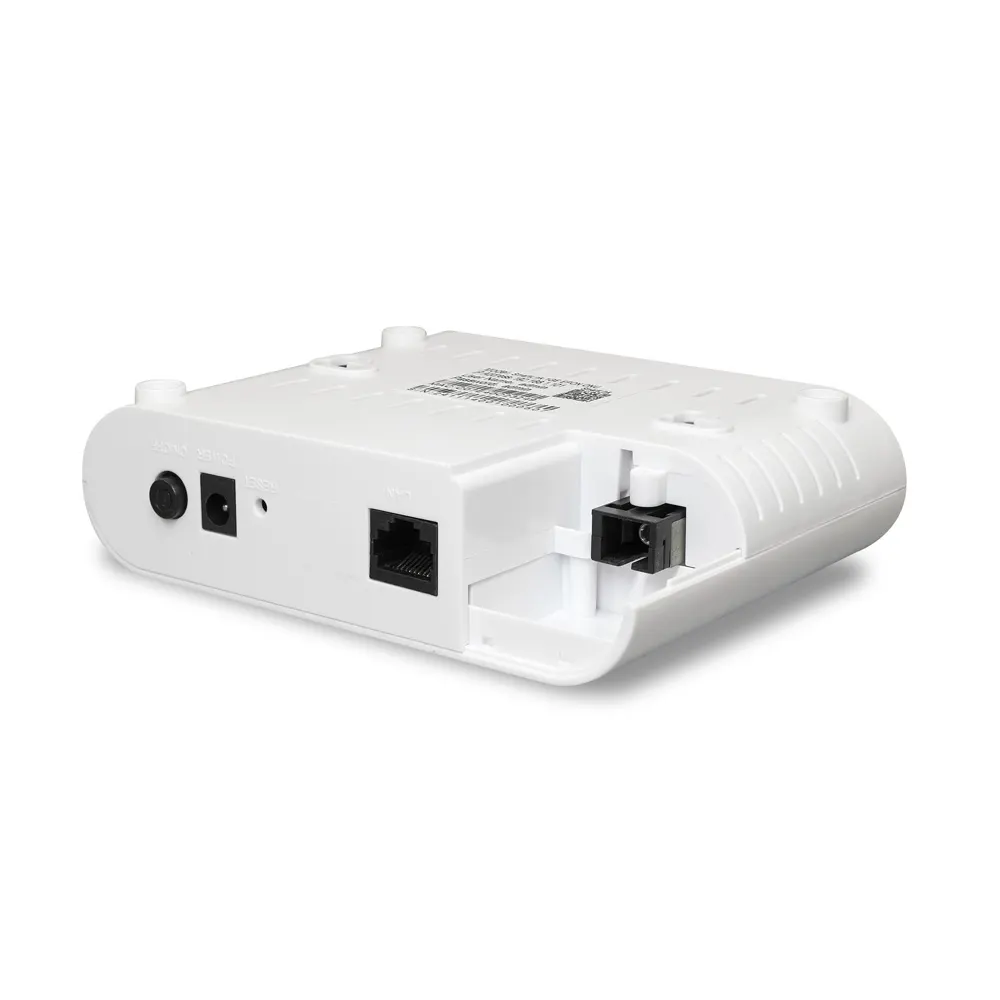

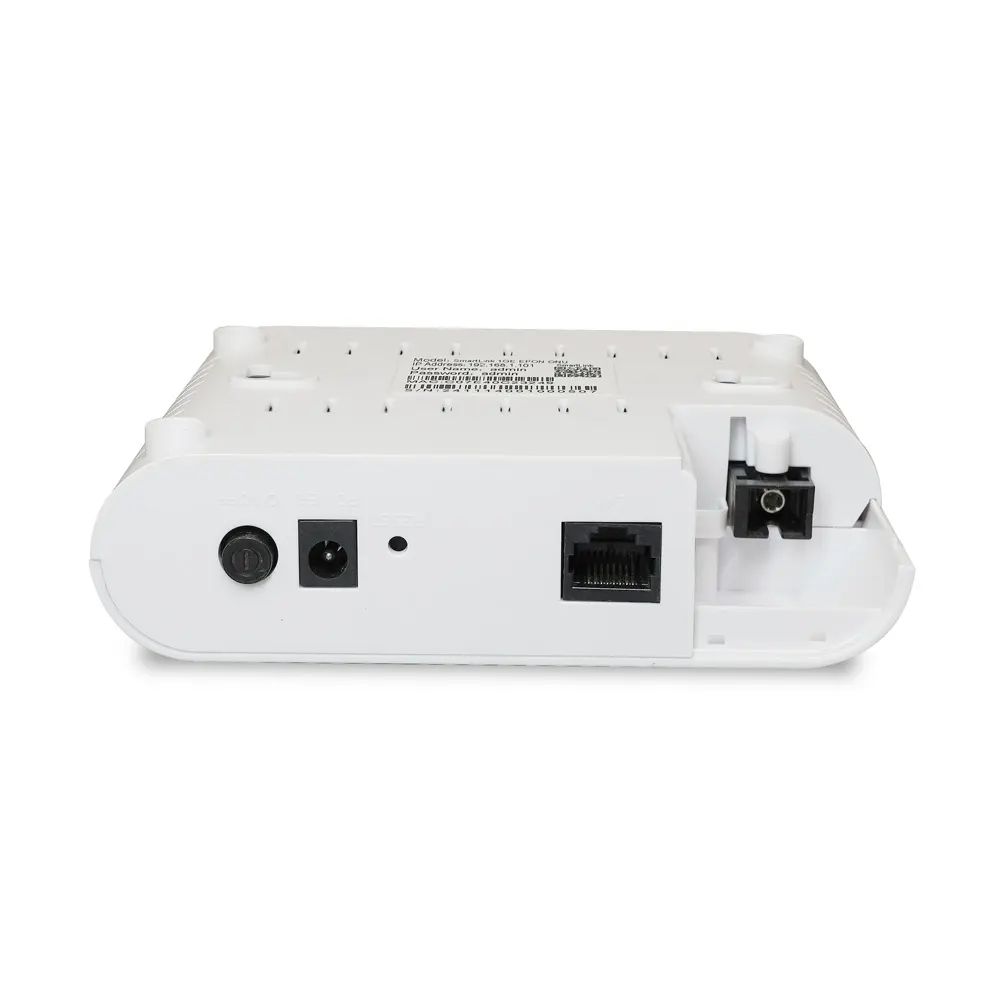

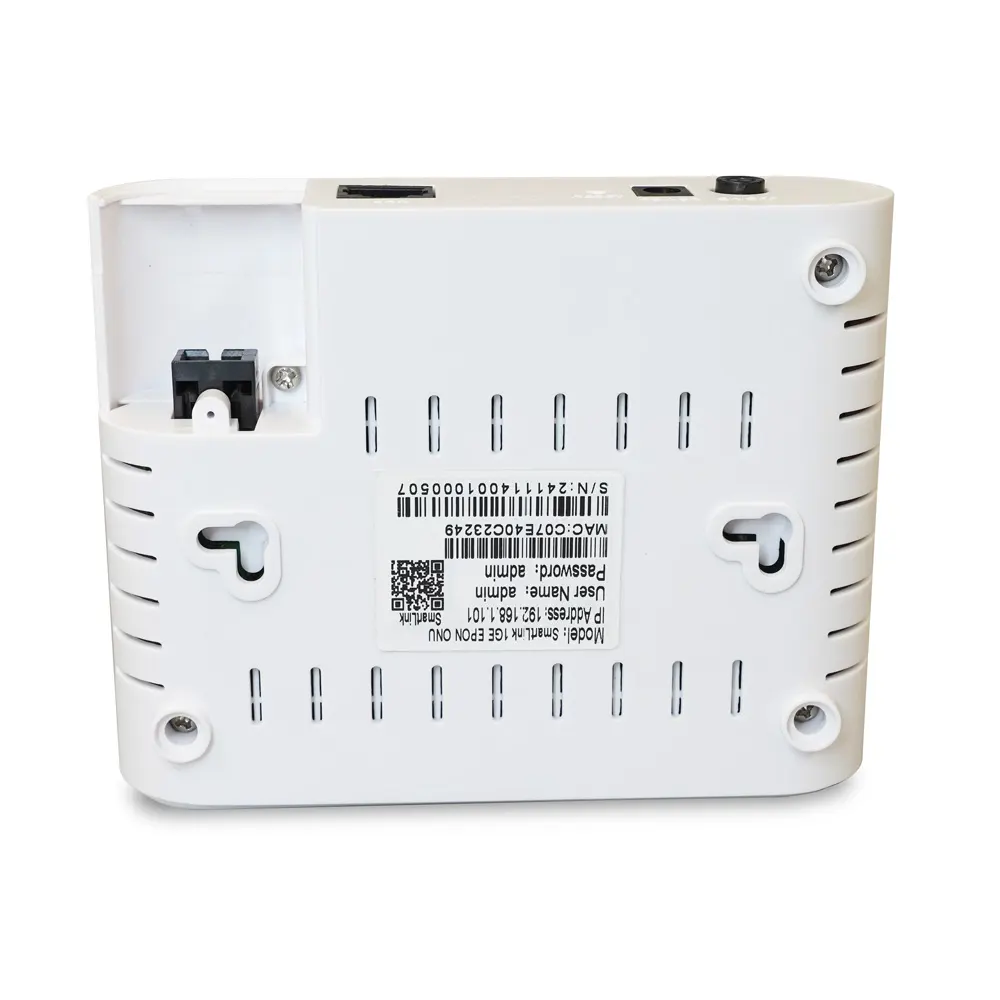

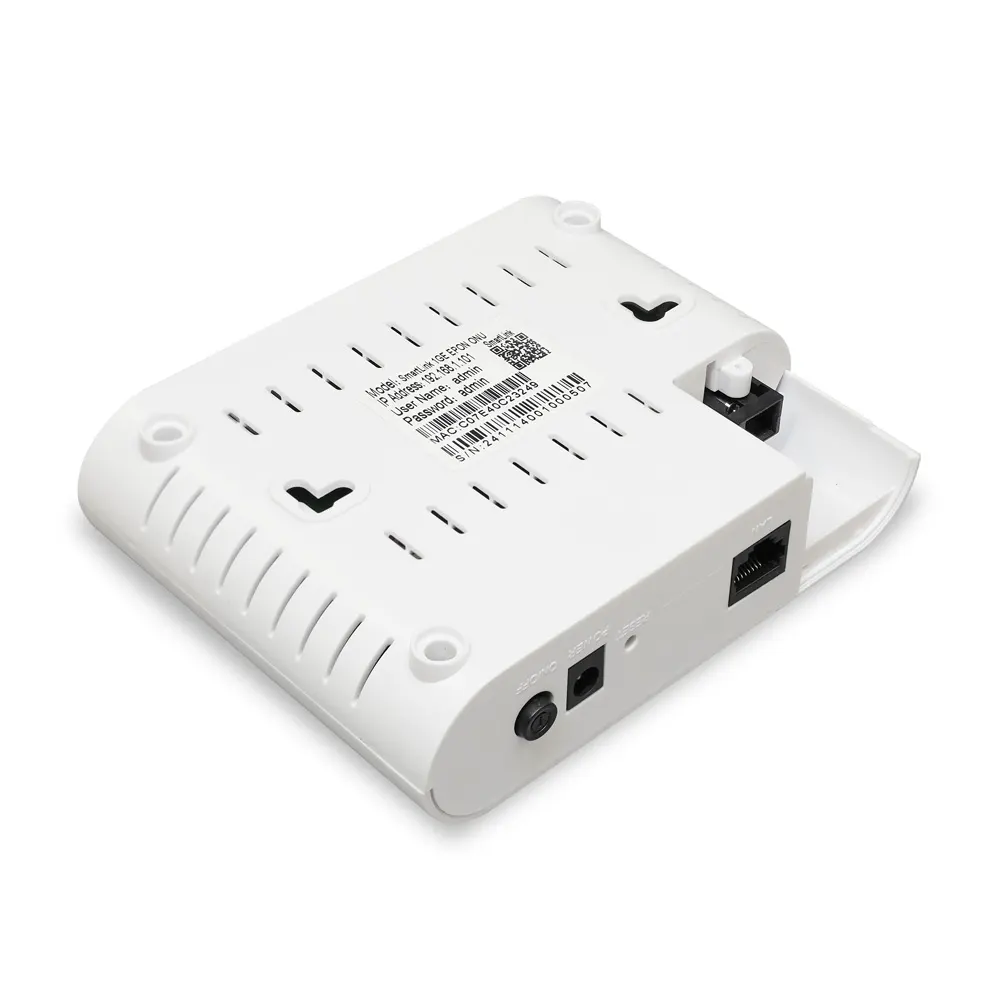

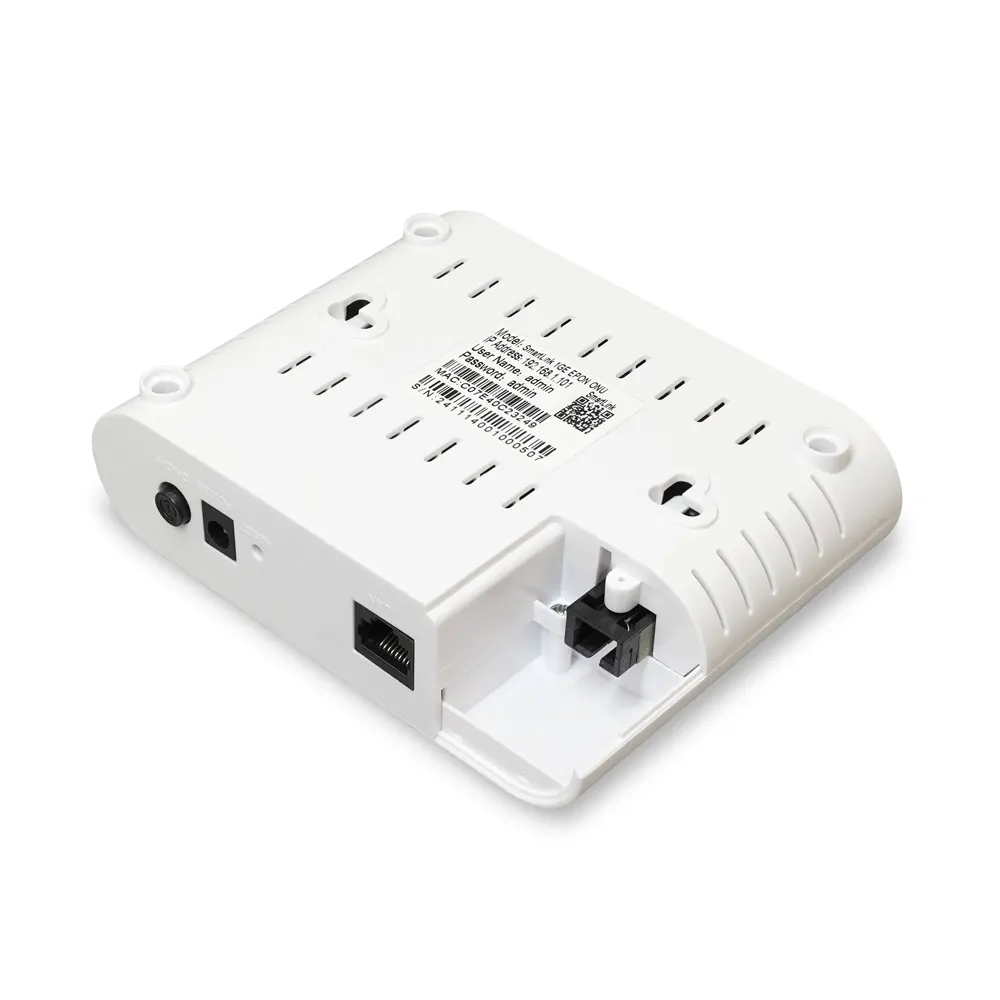

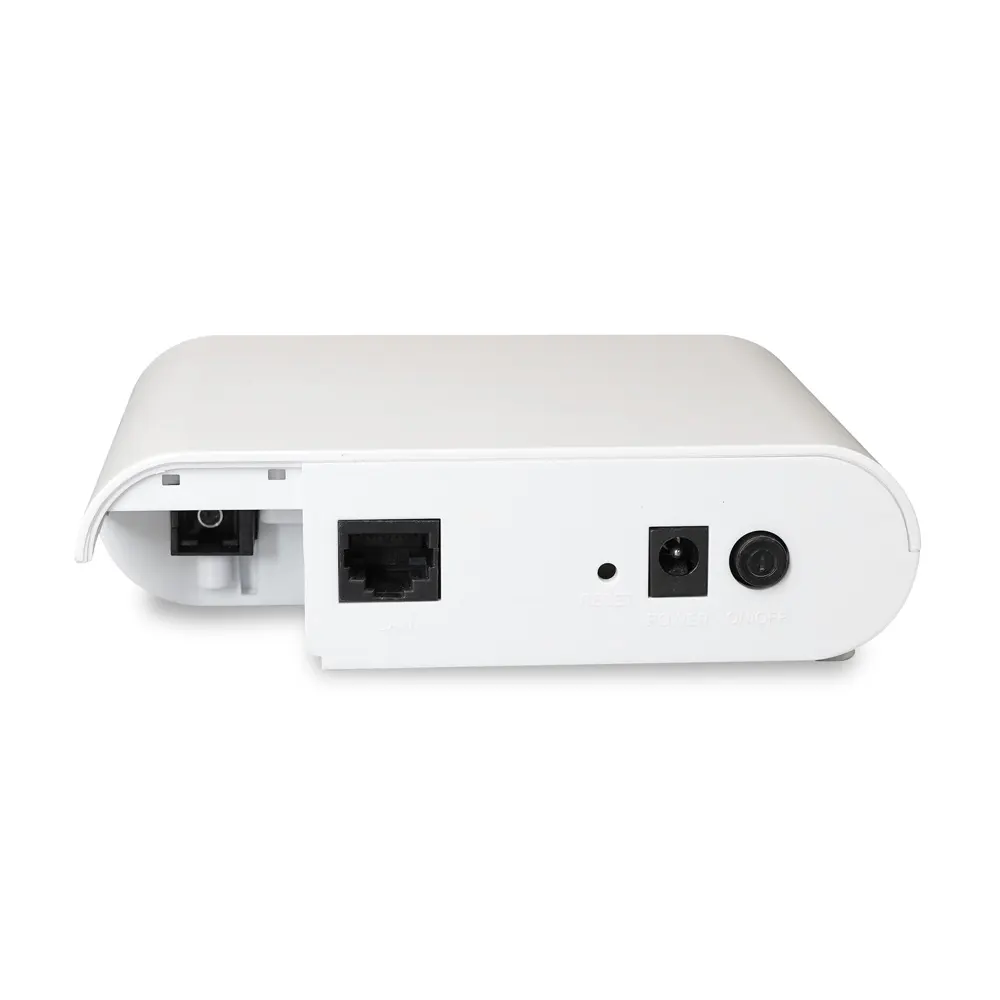

The E62 is a compact and cost-effective 1GE EPON Mini ONU designed for FTTH (Fiber-to-the-Home) networks. It complies with IEEE 802.3ah standards and supports high-speed data services, making it an ideal choice for residential and small business applications.
Key Features of 1GE EPON Mini ONU
- Compliant with IEEE 802.3ah and China Telecom EPON standards (V2.1).
- 1 PON Port (1.25G) for fiber uplink connection.
- 1 Gigabit Ethernet Port (10/100/1000M) for high-speed data transfer.
- Supports VLAN (802.1Q) with up to 4094 VLANs.
- Advanced QoS (Quality of Service) features, including traffic classification, priority marking, and traffic shaping.
- Supports Dynamic Bandwidth Allocation (DBA) for efficient bandwidth management.
- Built-in IGMP Snooping for multicast traffic optimization.
- Lightning protection for power supply and service ports.
- Low power consumption (6W) with 12VDC power supply.
Technical Specifications of 1GE EPON Mini ONU
| Ports | 1 PON Port (1.25G), 1 Gigabit Ethernet Port (10/100/1000M) |
|---|---|
| Power Supply | 12VDC |
| Power Consumption | 6W |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -30°C to 60°C |
| Relative Humidity | 10% to 90% (non-condensing) |
Applications
The Mini ONU is perfect for:
- FTTH (Fiber-to-the-Home) networks.
- Residential high-speed internet access.
- Small business networks requiring reliable fiber connectivity.
- Multimedia services such as IPTV and VoIP.
Why Choose E62?
The E62 stands out as a cost-effective and high-performance solution for FTTH networks. Its compact design, advanced features, and compliance with industry standards make it a reliable choice for both residential and commercial use.
