1GE Fiber Optic ONU | Low-Power Consumption ONU for FTTH Networks

Product Overview

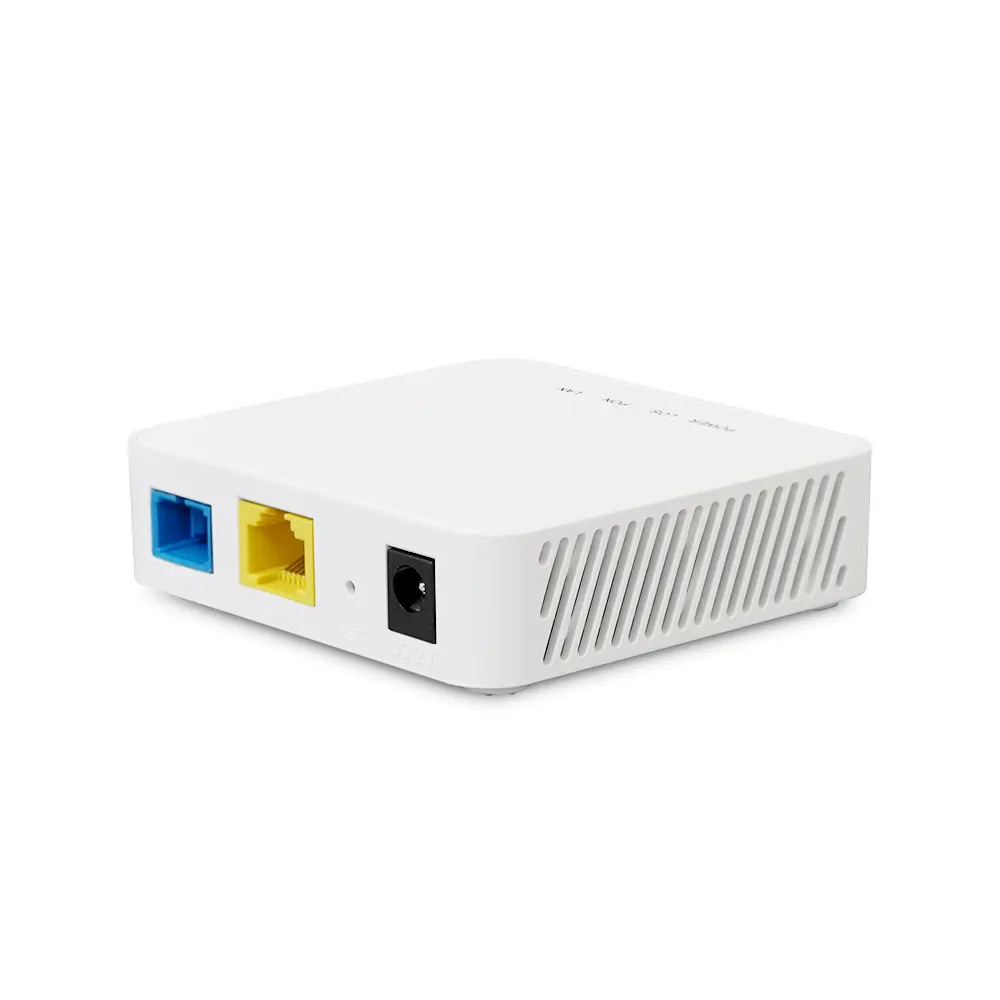

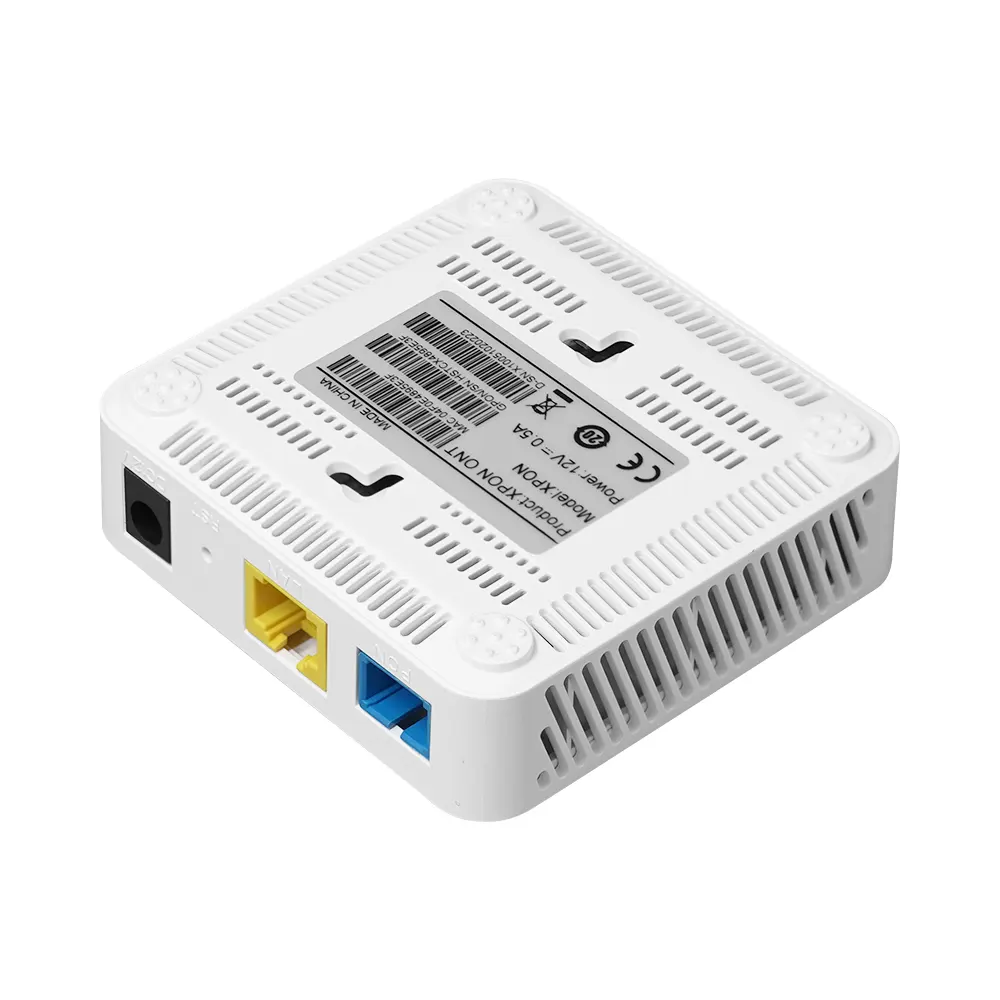

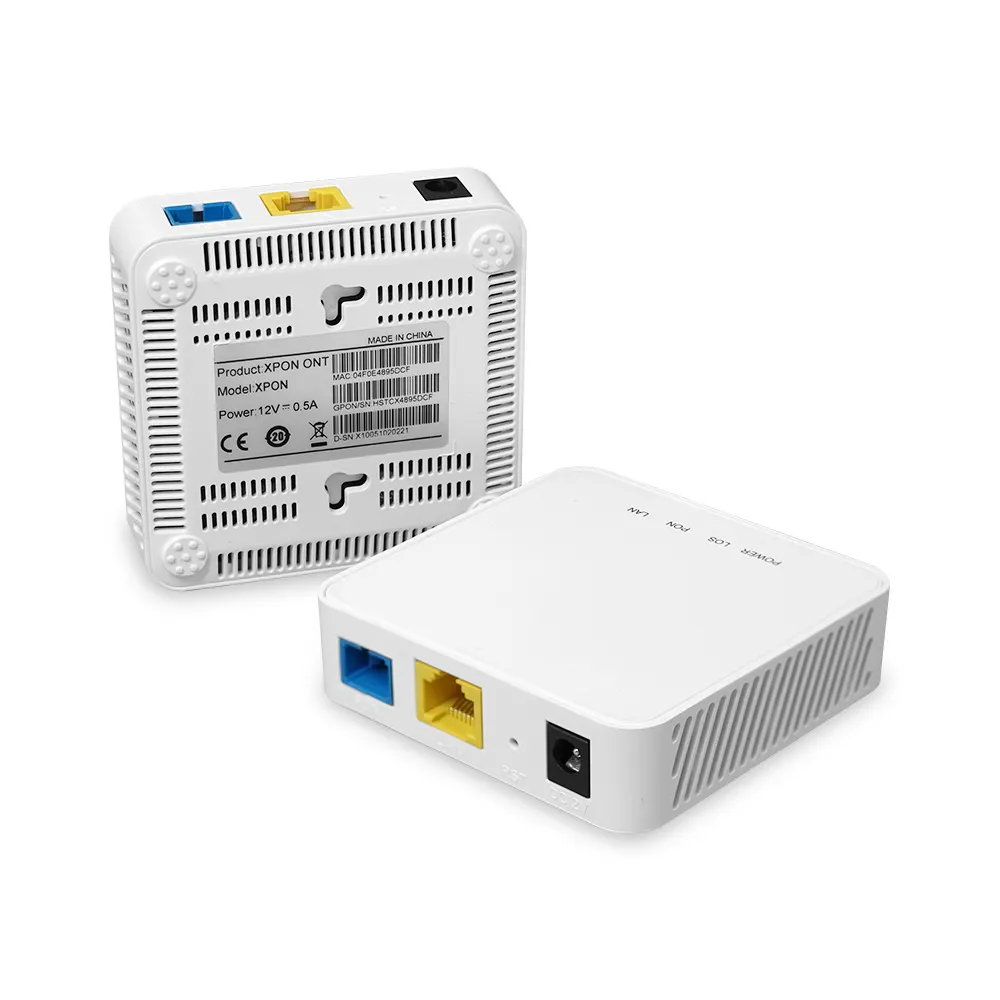

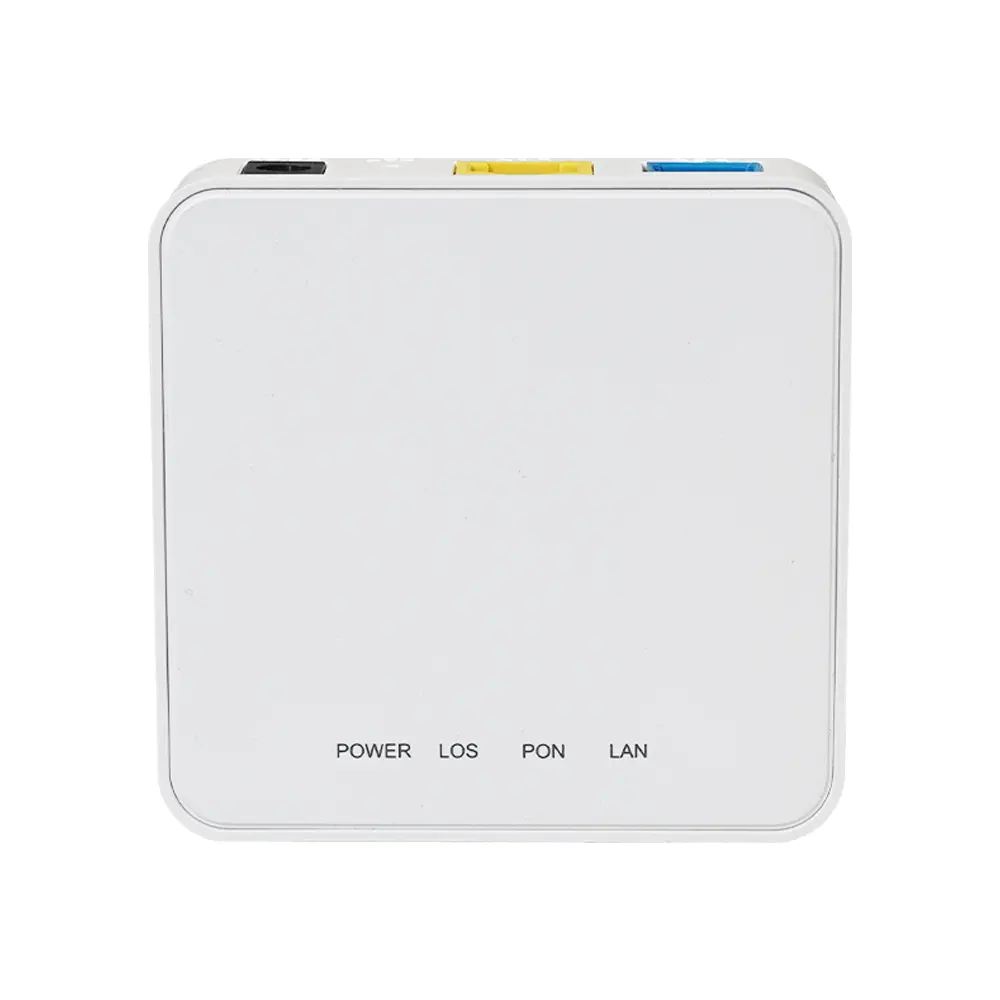

The X31M 1GE Fiber Optic ONU is a state-of-the-art Optical Network Unit designed for Fiber-to-the-Home (FTTH) networks. This compact and efficient device supports both EPON and GPON modes, making it ideal for various data service applications in FTTH scenarios. With its high performance and low power consumption, the X31M ONU is perfect for operators looking to deliver reliable and high-speed internet services.

Product Specifications

Hardware Specifications of 1GE Fiber Optic ONU

• Size: 90*90*24mm
• Optical Signal Access: EPON/GPON
• User Interface: 1GE
• Indicator Lights: POWER/PON/LOS/LAN
• Buttons: Power Switch Button, Reset Button
• Weight: 95g
• Power Adapter Input: 100V ~ 240V AC, 50Hz ~ 60Hz
• Power Supply Requirement: 12V DC, 0.5A
• Power Consumption: <6W
• Working Temperature: -10°C ~ +45°C
• Environment Humidity: 5% ~ 95% (Non-condensing)

PON Interface of 1GE Fiber Optic ONU

• Module Type: SC/UPC or SC/APC
• Working Wavelength: Up 1310nm, Down 1490nm
• TX Optical Power Value: 0.5 ~ 4dBm
• RX Optical Power Sensitivity: ≤-28dBm
• Transmission Distance: 0 ~ 20km
• Transmission Rate: GPON: Up 1.244Gbps; Down 2.488Gbps | EPON: Up 1.244Gbps; Down 1.244Gbps

Ethernet Interface

• Interface Type: RJ45
• Interface Parameters: 1 x 10/100/1000Mbps auto-adaptive Ethernet interface

Features

• GPON working mode compliant with IEEE 802.3ah & ITU-T G.984.x standards
• EPON working mode compliant with IEEE 802.3ah specification and OAM protocol
• Supports WEB configuration function
• Layer 2 Switching with support for 802.1Q VLAN, 802.1P QoS, Bandwidth Control, Spanning Tree, etc.
• Layer 3 Home Gateway/CPE features with Hardware NAT, supports Route mode, etc.
• Supports IPv4/IPv6 dual mode
• Supports Firewall function and IGMP multicast feature
• Supports LAN IP and DHCP Server configuration
• Supports Port Forwarding and Loop-Detect

Highlights

• Compatible with 95% of third-party OLTs (including Huawei, ZTE, Fiberhome, BT-PON, etc.)
• Supports EPON/GPON mode and automatic mode switching
• Supports Route PPPoE/DHCP/Static IP and Bridge mode
• Supports ONU auto-discovery, Link detection, and remote software upgrade
• Supports AES-128 algorithm for data encryption of downlink data

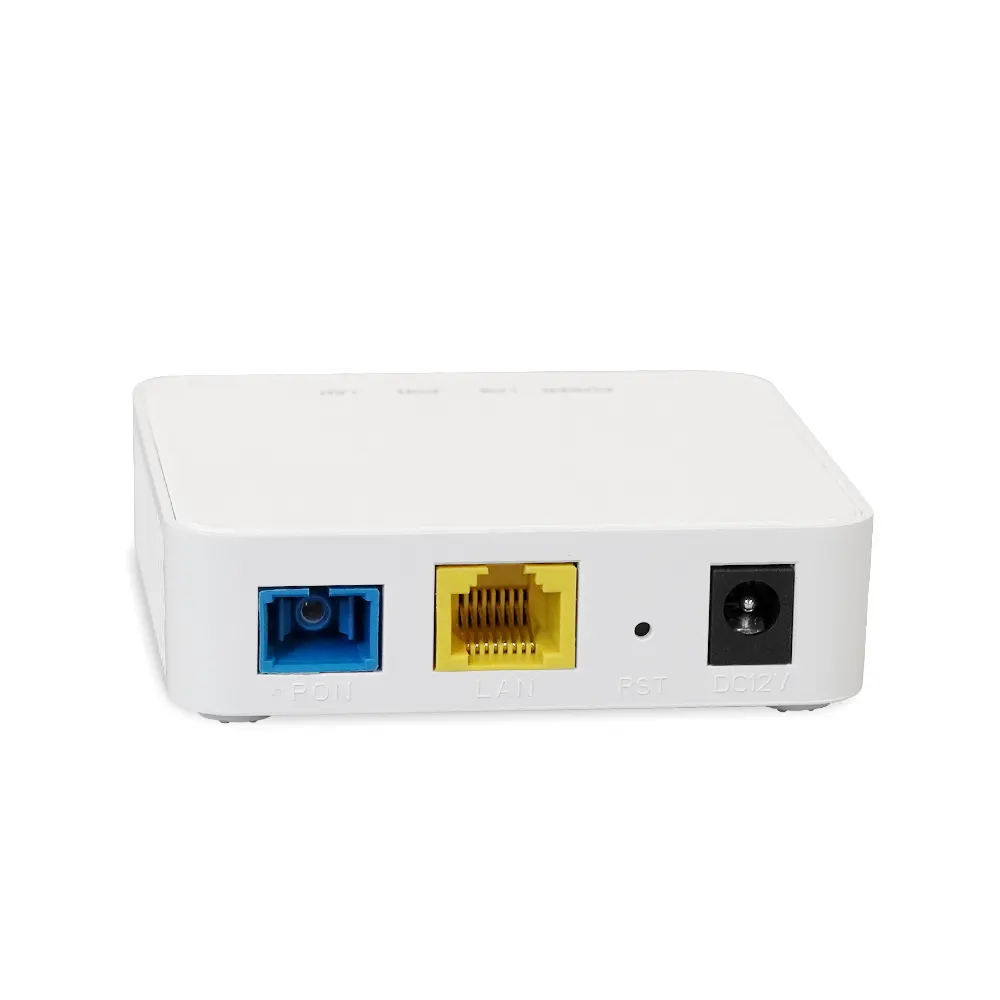

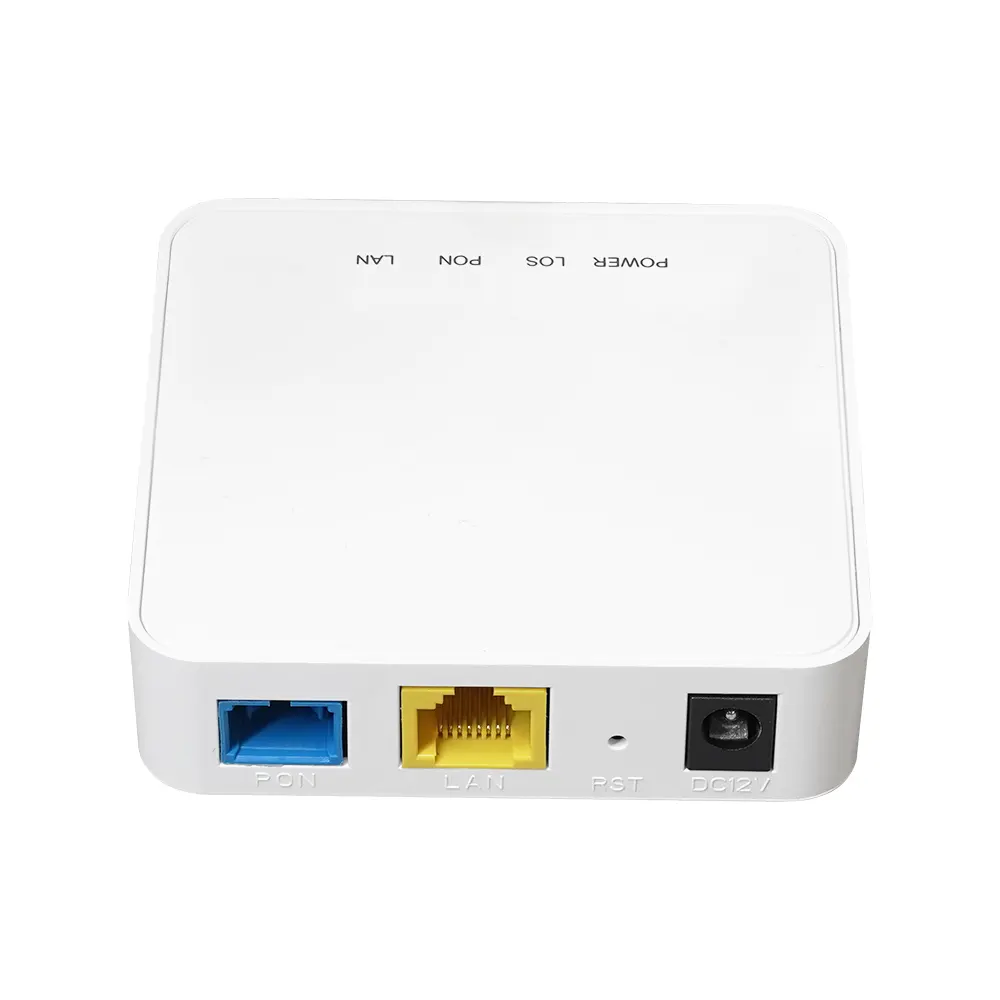

Interface

• 1 PON
• 1 LAN
• 1 RST (Reset Button)
• 1 DC12V (Power Interface)
