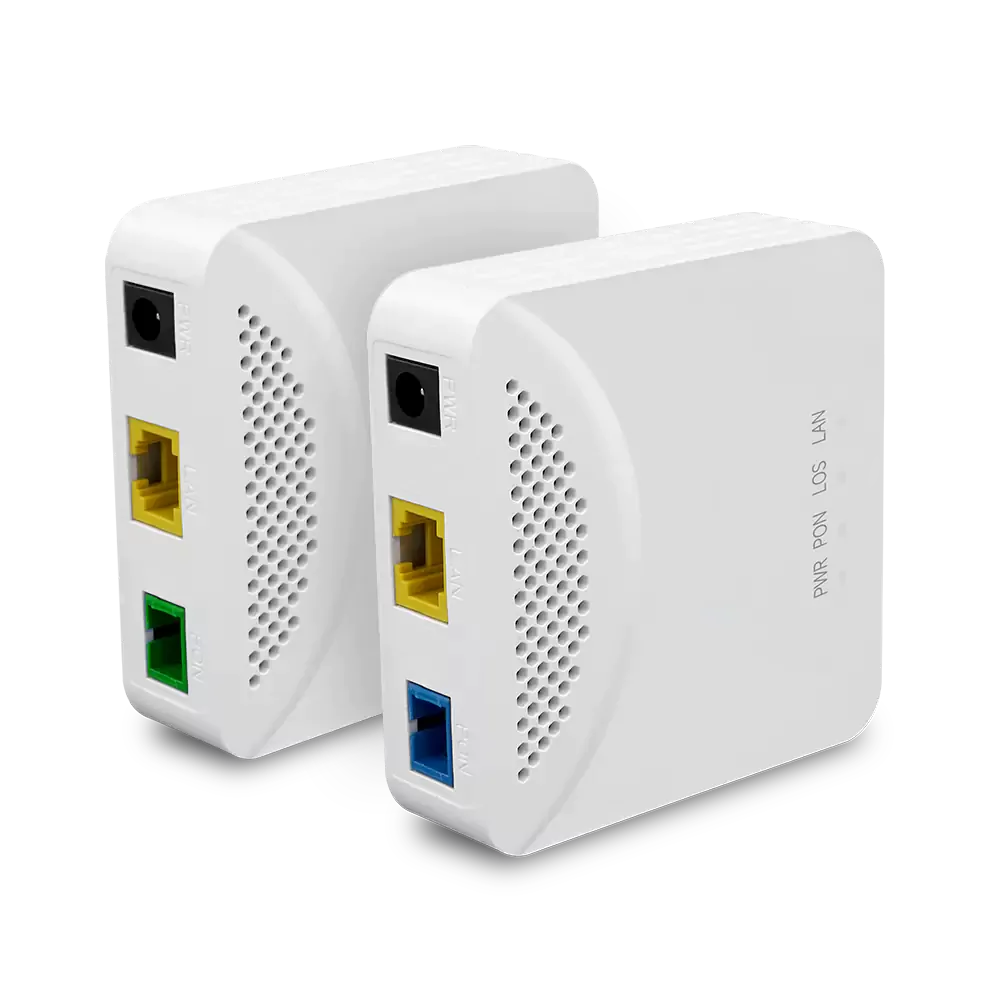

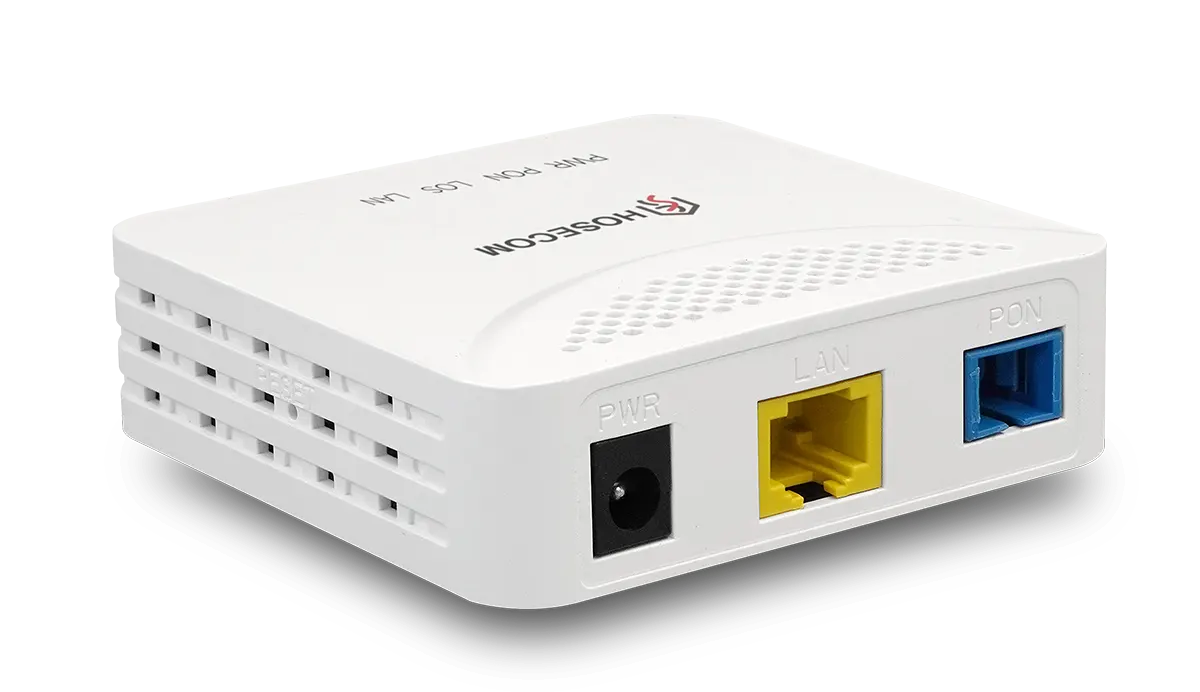

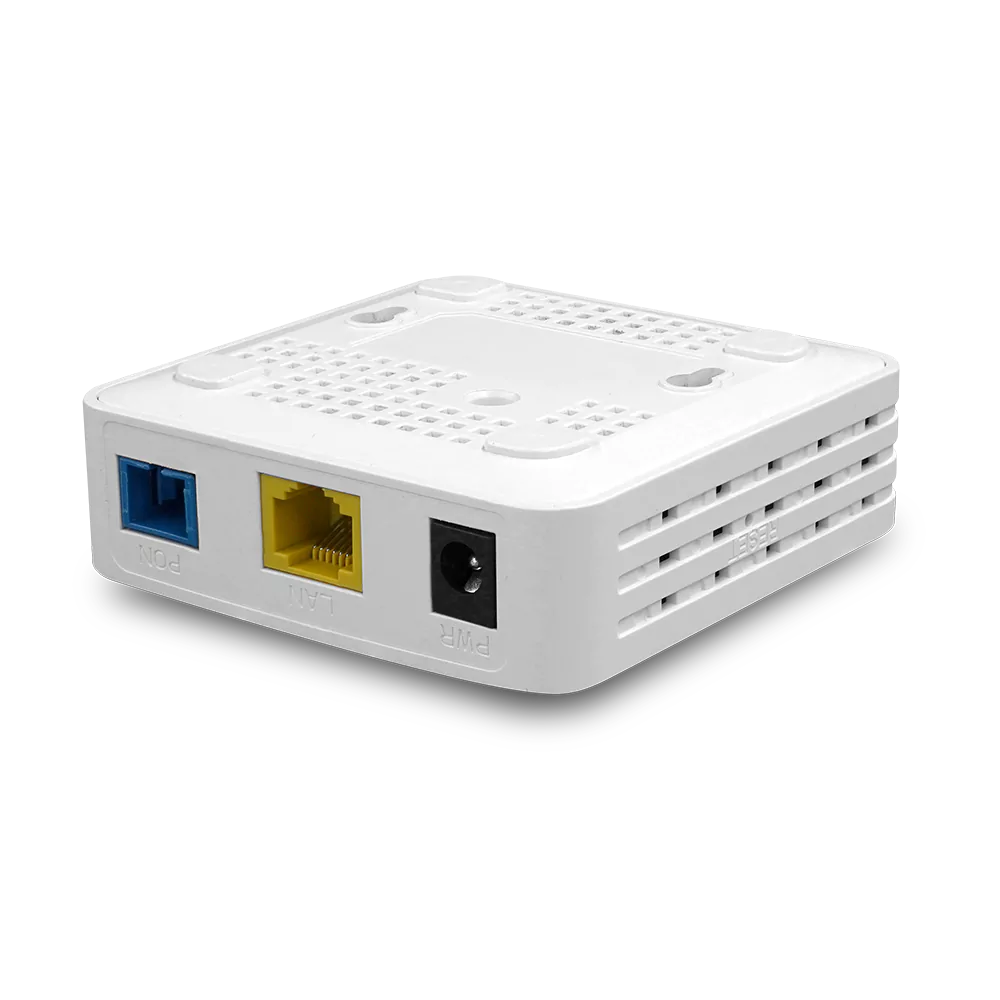

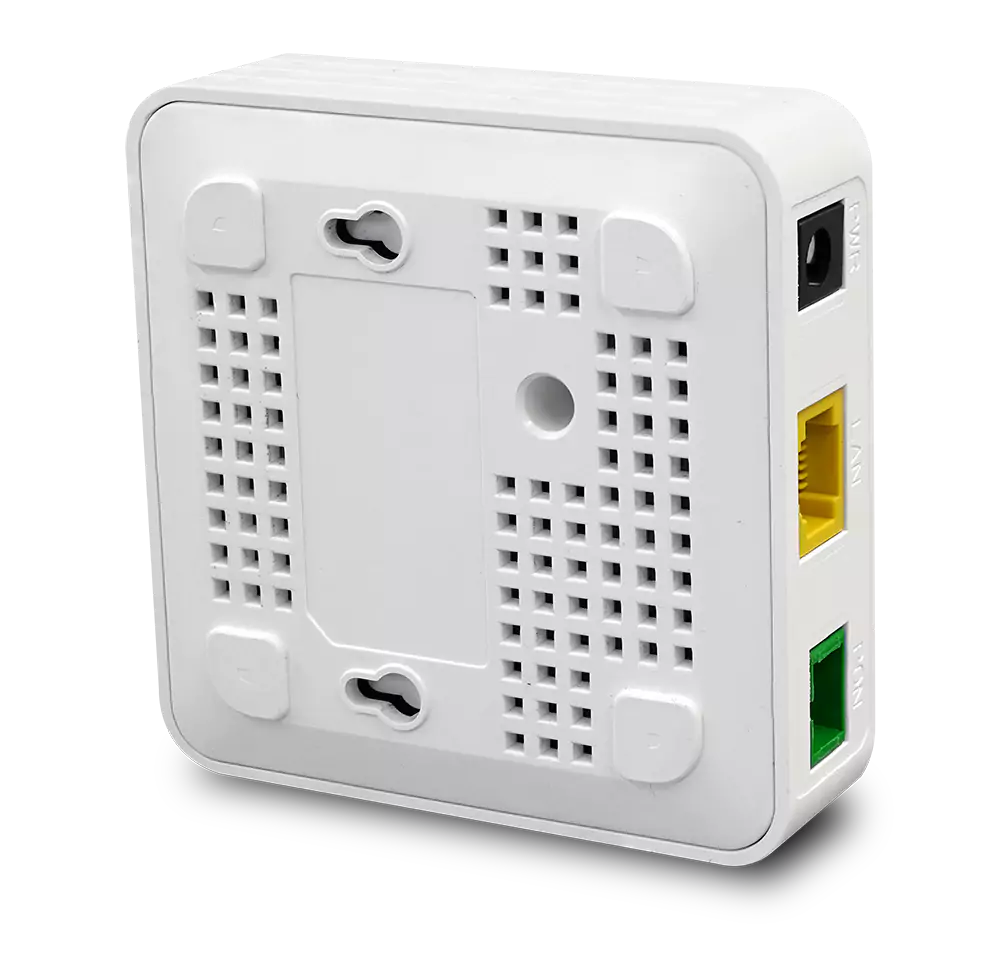

1GE MINI ONU MODEM | Optical Network Unit for EPON/GPON Networks
Interface: 1 10/100/1000M Ethernet interface (RJ45), 1 EPON/GPON adaptive interface (SC-UPC/SC-APC)
Transmission distance: up to 20 kilometers
PON mode: GPON: uplink 1.25Gbps, downlink 2.5Gbps, EPON: uplink and downlink both 1.25Gbps
Optical reception sensitivity: GPON: ≥-28dBm, EPON: ≥-27dBm
Dimensions: 80mm (L) x 80mm (W) x 23mm (H)
Operating Temperature: 0°C ~ 60°C
Operating Humidity: 10% ~ 85% (non-condensing)
Storage Temperature: -40°C ~ 80°C
Storage Humidity: 5% ~ 95% (non-condensing)
Power Input: 12V/0.5A DC
Power Consumption: < 3W
Management: Web, TELNET, TR069, OAM, OMCI
Free Quote
Product Overview
Key Features of 1GE MINI ONU MODEM
- 1GE Ethernet Interface: 1 x 10/100/1000M RJ45 port for high-speed connectivity.
- EPON/GPON Adaptive: Supports both EPON and GPON modes with a transmission distance of up to 20KM.
- Advanced Security: Supports data encryption, port isolation, and ACL for secure data transmission.
- Dynamic Bandwidth Allocation (DBA): Ensures efficient bandwidth usage.
- Easy Management: Supports Web, TELNET, TR069, OAM, and OMCI for easy configuration and monitoring.
- Compact Design: Small form factor (80mm x 80mm x 23mm) for easy installation.
- Power Efficiency: Low power consumption (< 3W) for energy-saving operation.
Technical Specifications of 1GE MINI ONU MODEM
| Interface | 1 x 10/100/1000M Ethernet (RJ45), 1 x EPON/GPON (SC-UPC/SC-APC) |
|---|---|
| PON Mode | EPON & GPON adaptive |
| Transmission Distance | Up to 20KM |
| Optical Power | GPON: -28dBm to +5dBm, EPON: -27dBm to +4dBm |
| Dimensions | 80mm (L) x 80mm (W) x 23mm (H) |
| Operating Temperature | 0°C to 60°C |
| Power Supply | 12V/0.5A DC |
| Power Consumption | < 3W |
Management & Indicators
- Management: Web, TELNET, TR069, OAM, OMCI
- Indicators:
- POW: Power status (On/Off)
- PON: ONU registration status (On/Blinking/Off)
- LOS: Optical signal status (On/Off)
- LAN: LAN port status (On/Blinking/Off)
Applications
The ONU MODEM is ideal for:
- Fiber-to-the-Home (FTTH) networks
- Small and medium-sized businesses (SMBs)
- Multi-dwelling units (MDUs)
- Enterprise networks
