2 Port Gigabit ONU Fiber Modem – 1GE 1FE XPon Router with 2.4G Wifi
- 1 Gigabit Ethernet Interface (1GE)
- 1 100 Gigabit Ethernet interface (1FE)
- 1 POTS (traditional telephone service) interface
- PON port: 1 G/EPON optical interface, supporting single-fiber transmission.
- Optical wavelength: upstream 1310nm, downstream 1490nm.
- Power supply: External 12V/1.5A power adapter.
Free Quote
Product Overview

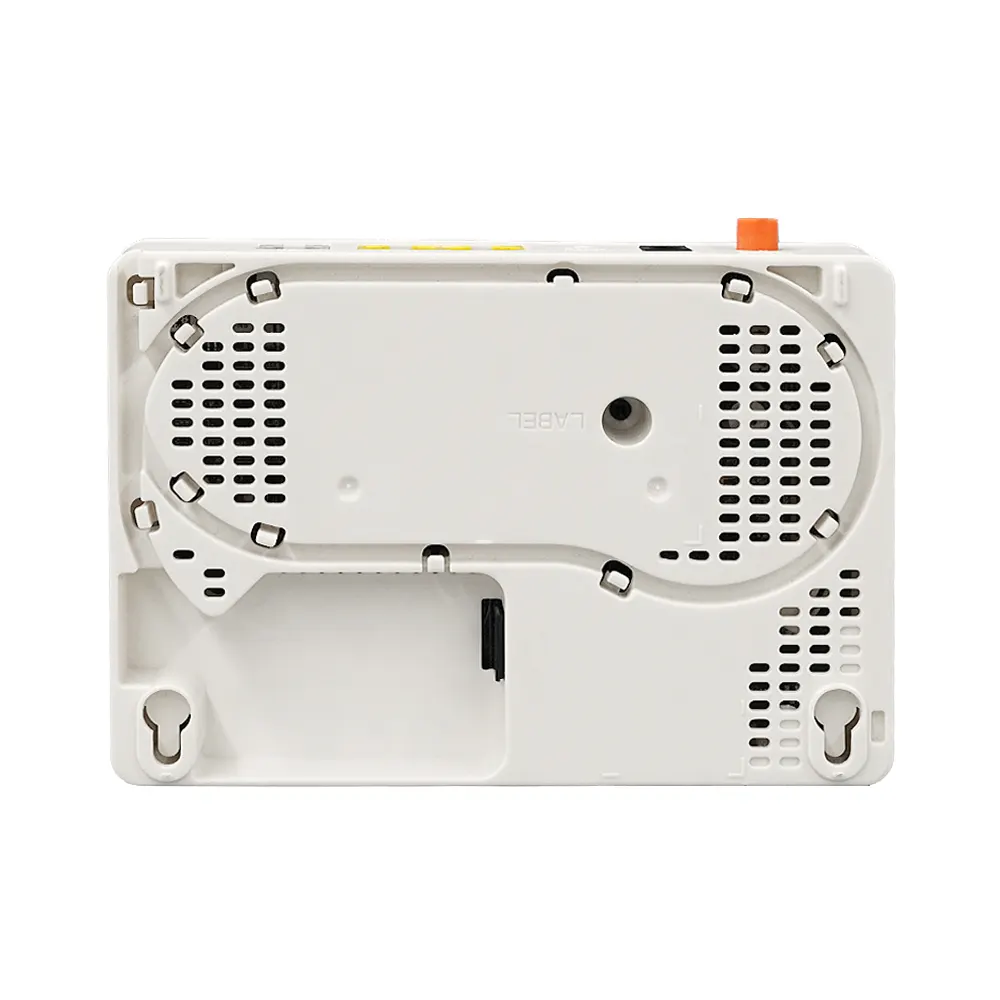

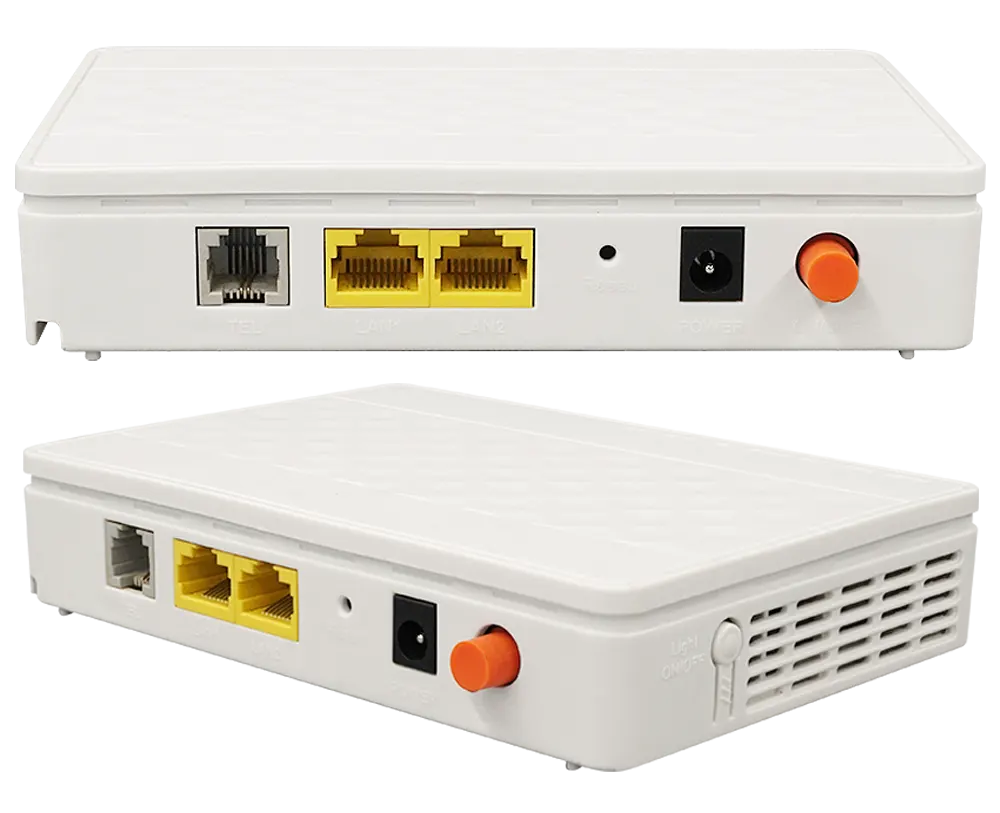

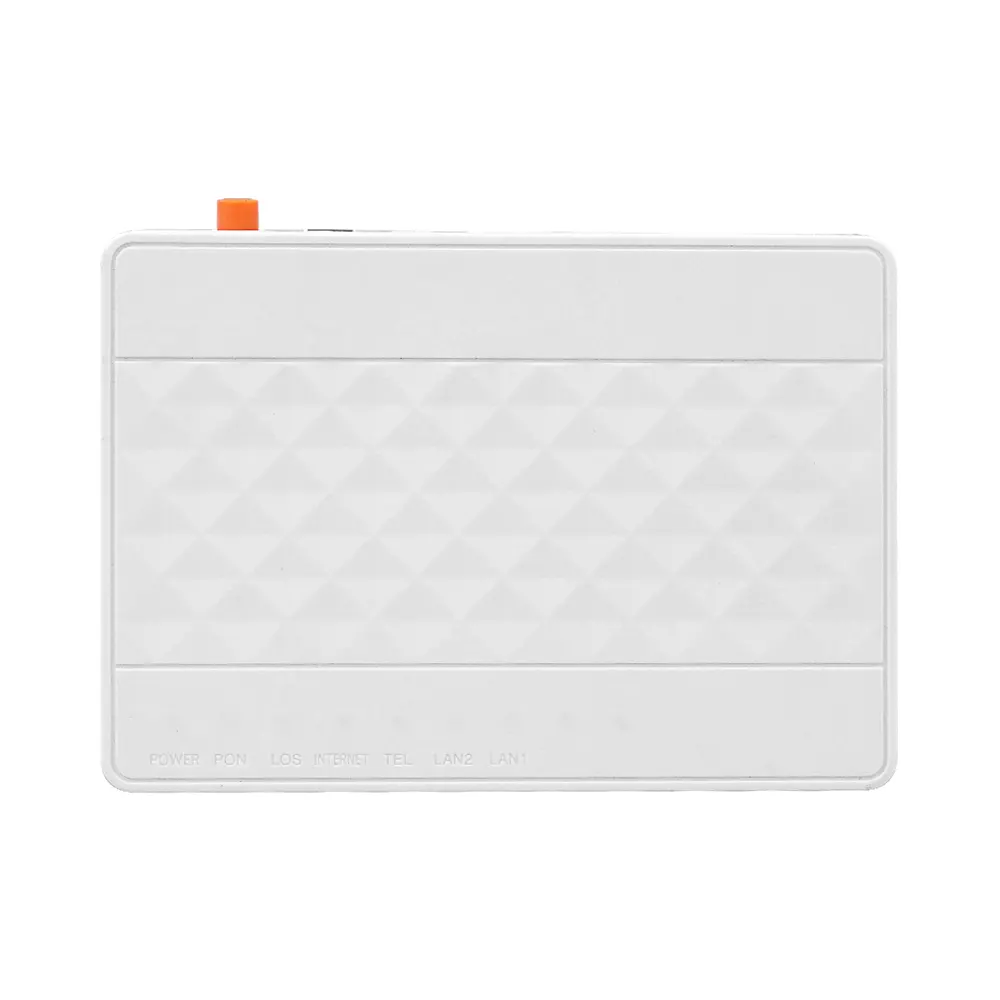

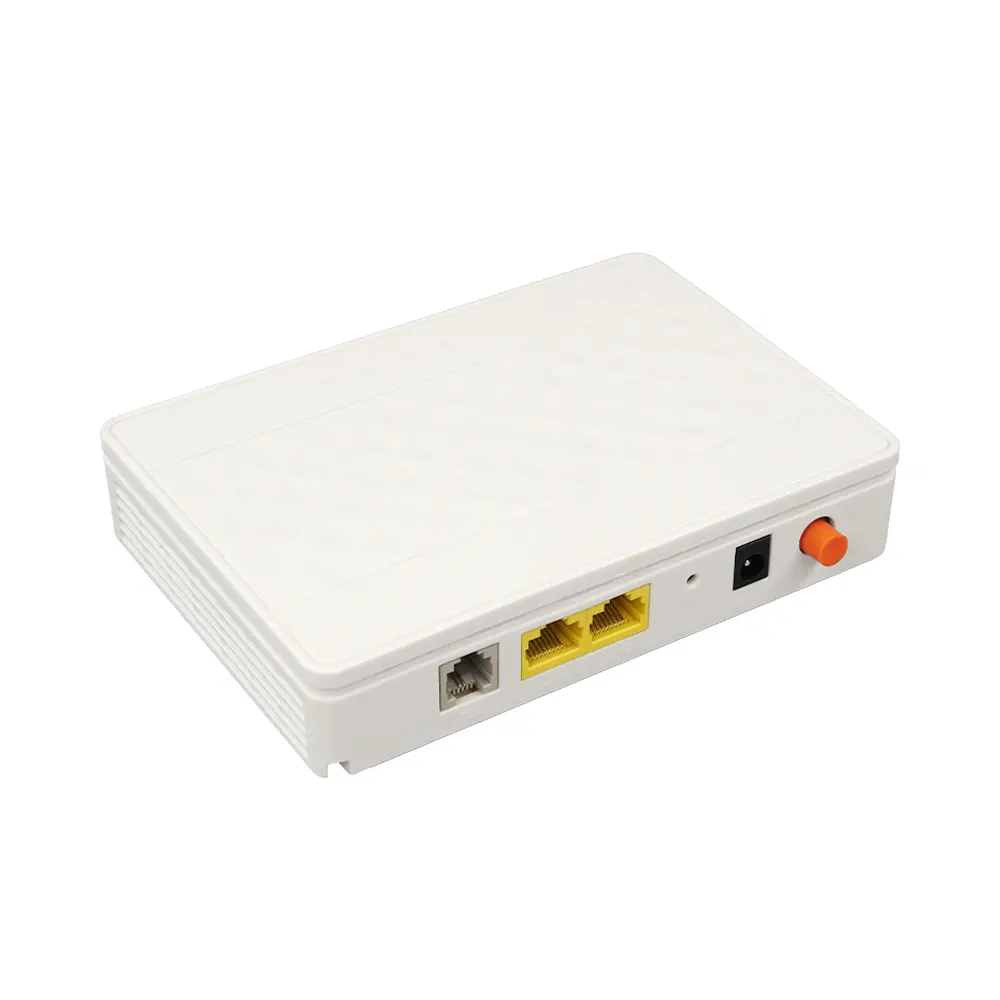

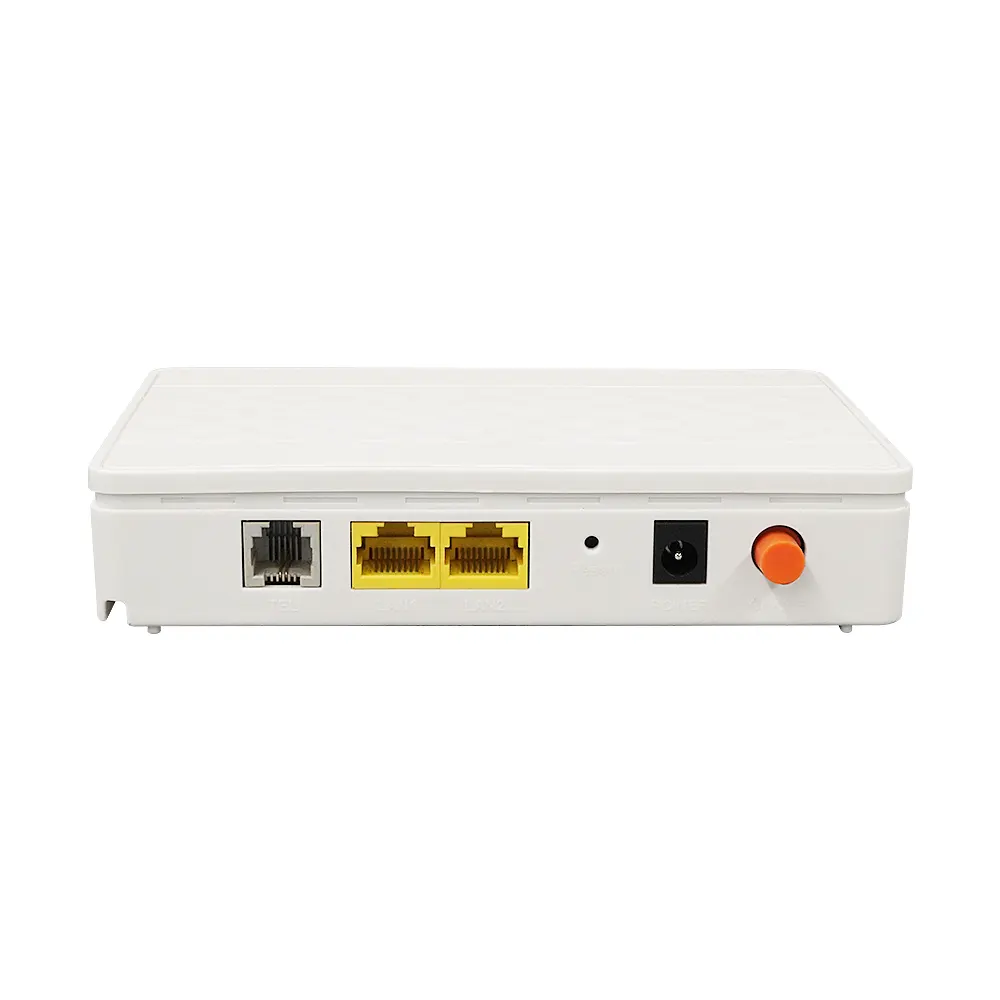

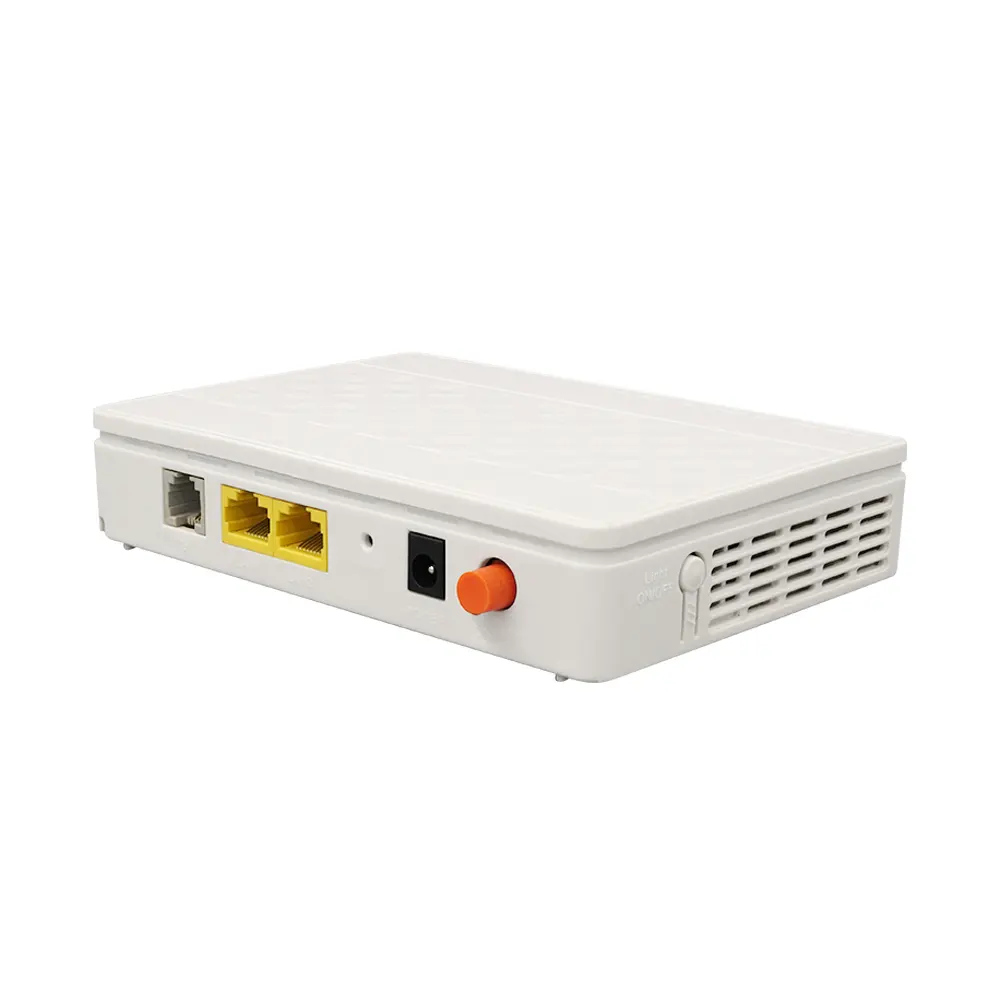

The X62 is a high-performance 2 port Gigabit ONU fiber modem designed for home and small business use. This multi-service XPON terminal supports 1GE, 1FE, and 1POTS interfaces, providing reliable internet, VoIP, and wireless connectivity. Built on mature GPON and EPON technologies, it ensures high reliability, easy management, and flexible upgrades.
Key Features of 2 Port Gigabit ONU Fiber Modem X62
- HGU ONU Product Modality: Supports bridge and NAT modes.
- Wireless Access: 802.11b/g/n wireless access with speeds up to 300Mbps.
- VOIP Support: Integrated VOIP port for connecting normal telephones.
- Power Supply: 12V/1.5A external power adapter.
- Compliance: Fully compliant with IEEE 802.3ah and ITU-T G.984 standards.
VOIP Features
| Item | Parameter |
|---|---|
| Call Protocol | SIP, seamless compatibility with all popular call agents |
| Voice Coding | ITU-T G.711/G.723.1/G.729, auto-negotiate with call agent |
| IP Address Assignment | Dynamic PPPoE/DHCP Client and static IP |
| Call Loss | Less than 0.01% |
| Functions | Echo cancellation, high/low speed fax support, multi-party conferencing, and more |
Hardware Parameters OF 2 Port Gigabit ONU Fiber Modem X62
| Item | Parameters | Specification |
|---|---|---|
| PON Port | 1 G/EPON Optical Interface | Single Fiber: 1*SC/UPC Fiber |
| Rate | Upstream/Downstream | GPON: 1.244Gbps/2.488Gbps, EPON: 1.25Gbps |
| Wavelength | Tx/Rx | 1310nm/1490nm |
| Optical Output Power | GPON/EPON | GPON: +0.5~+5dBm, EPON: -1~+4dBm |
| Sensitivity | GPON/EPON | GPON: -28dBm, EPON: -26dBm |
| LAN | 1*10/100/1000Mbps and 1*10/100Mbps | Full/Half-Duplex, RJ45, Auto-MDI/MDI-X |
| POTS | 1 FXS | RJ11 |
| Wireless | IEEE802.11b/g/n | 300Mbps, 2T2R, 2 External Antennas |
| Power | External DC | 12V/1.5A power supply adapter |
| Power Consumption | <9W |
Environmental Specifications
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -40°C to 85°C
- Operating Humidity: 10% to 90% (Non-condensing)
- Storage Humidity: 10% to 90% (Non-condensing)
Functions
- GPON Feature: Compliant with ITU-T G.984 GPON standard, FEC, dynamic bandwidth status report, QoS scheduling.
- EPON Feature: IEEE 802.3ah EPON standard, 20Km transmission distance, OAM management.
- Gateway Feature: Supports Router and Bridge modes, NAT, NAPT, DHCP, PPPoE.
