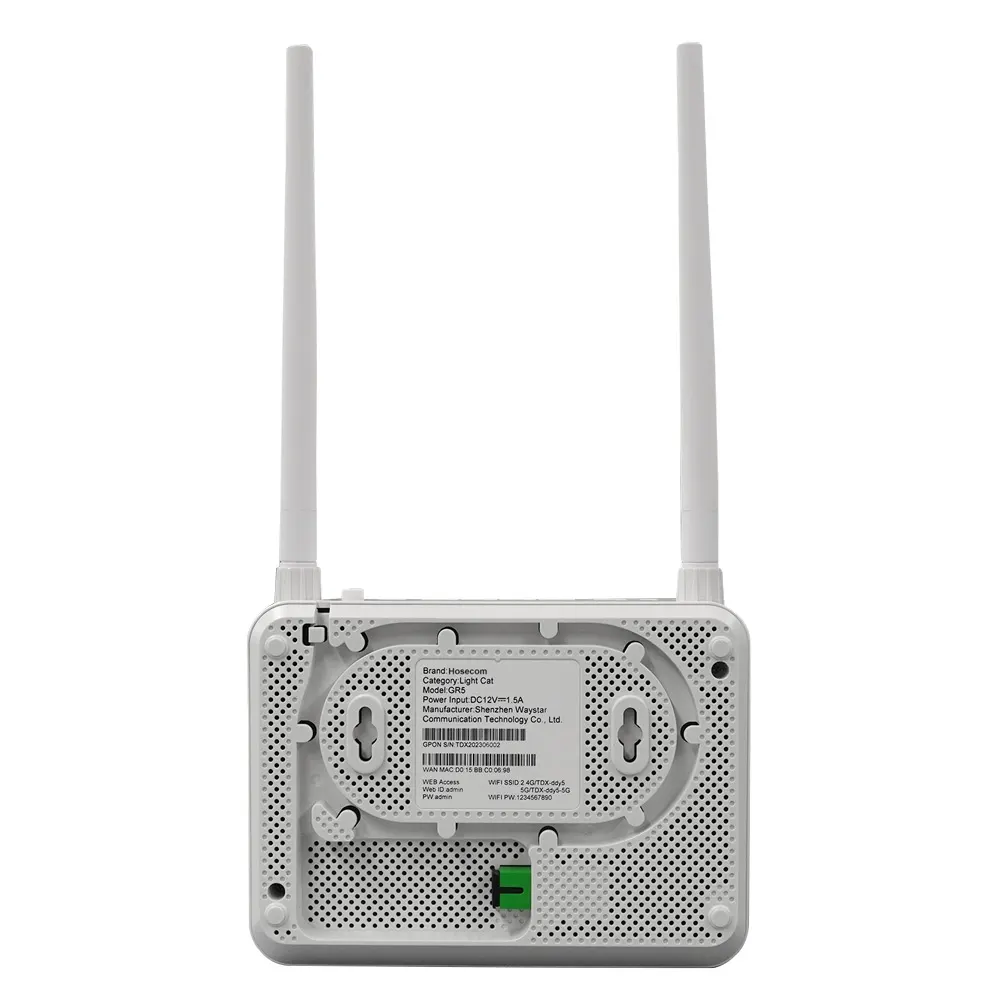

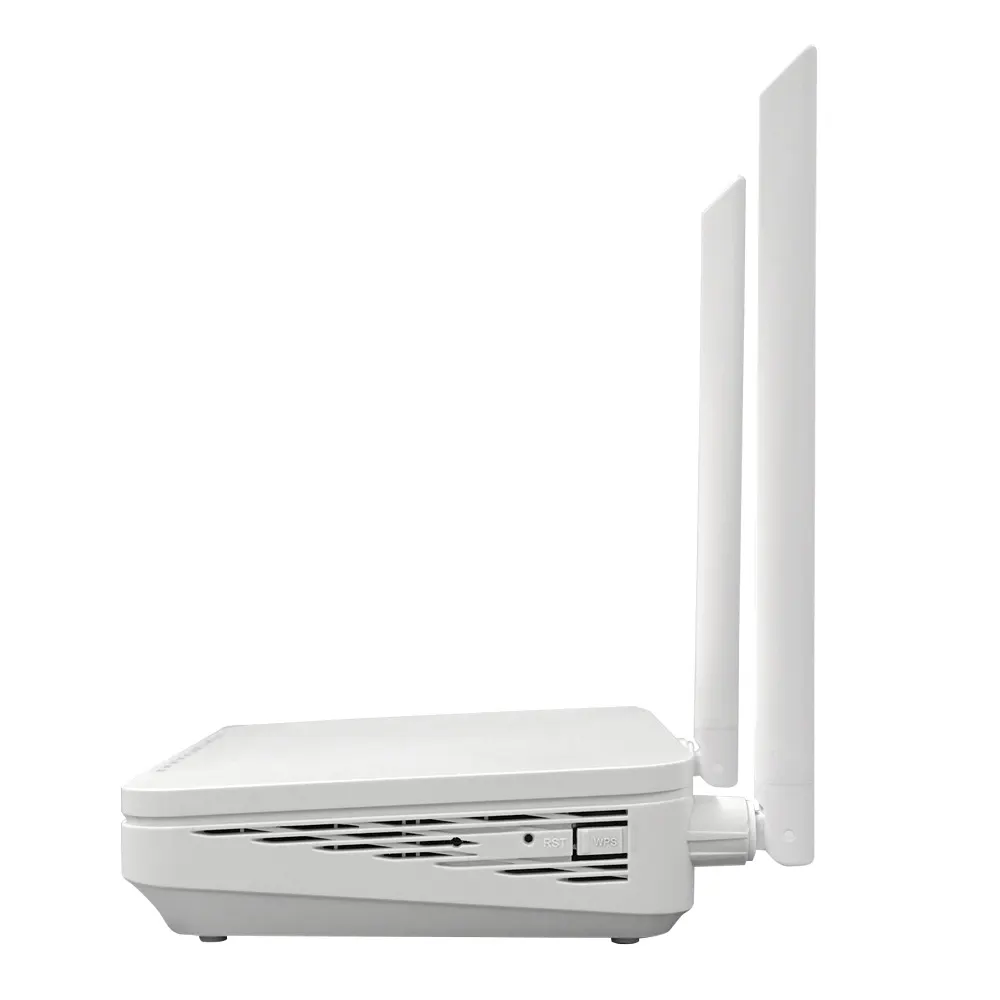

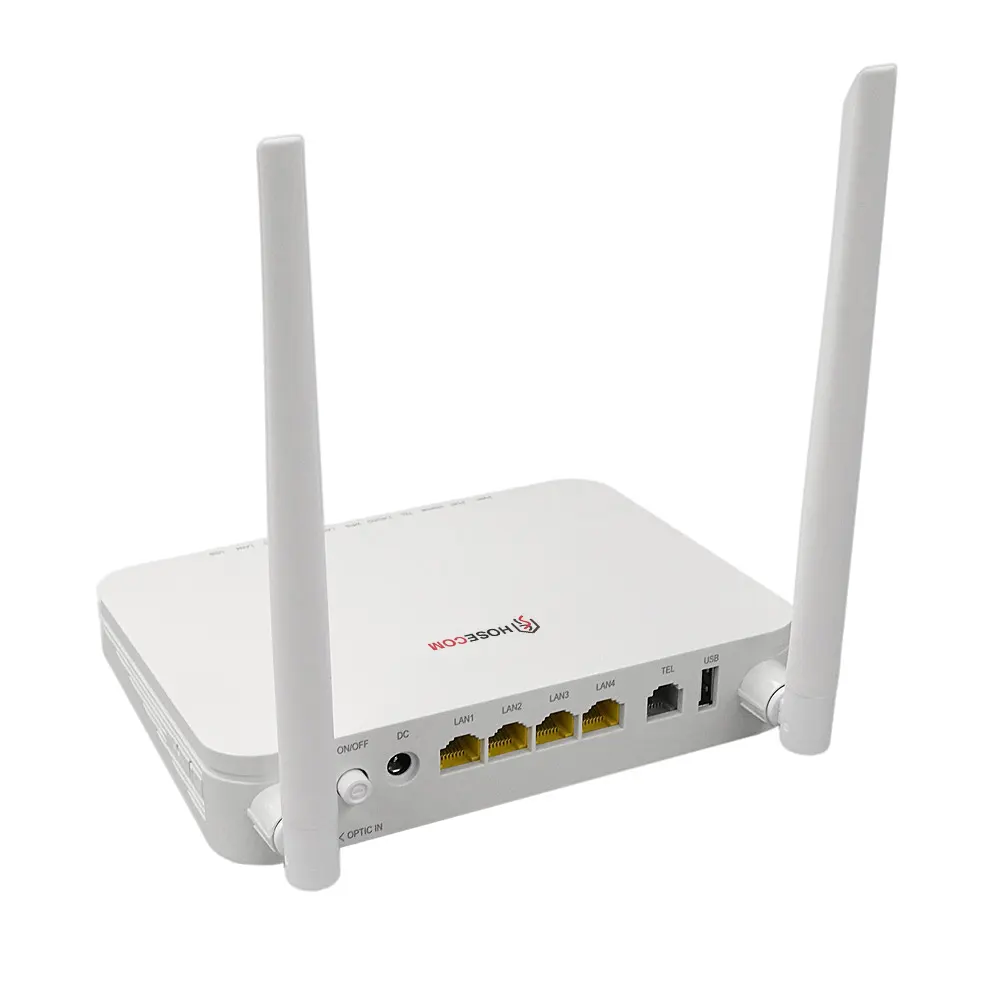

4GE AC1200 XPON ONU | Dual-Mode ONU for Fiber-to-the-Home (FTTH)
- EPON&GPON mode adaptive;
- GPON WAN port with 1.244Gbps uplink / 2.488Gbps downlinklink;
- 4x 10/100/1000BASE-T Ethernet RJ45Ports;
- 1x POTS;
- 1x USB;
- Support 802.11b/g/n speed up to300Mbps;
- Support 802.11a/b/g/n/ac speed up to867Mbps;
Free Quote
Product Overview
Key Features of 4GE AC1200 XPON ONU
- Dual-Mode Support: Automatically adapts to GPON or EPON modes for seamless integration with central office OLTs.
- High-Speed Connectivity: 4x Gigabit Ethernet ports, 1x GPON WAN port (1.244Gbps uplink / 2.488Gbps downlink), and 1x USB port.
- Dual-Band WiFi: Supports 802.11b/g/n (up to 300Mbps on 2.4GHz) and 802.11a/b/g/n/ac (up to 867Mbps on 5GHz).
- Advanced Security: WPA/WPA2/WPA3 encryption, firewall, and DoS protection for secure network access.
- VoIP Support: Integrated RJ-11 port for voice over IP services with G.711A/μ, G.729, and G.722 codecs.
- Comprehensive Management: Supports OMCI, Web GUI, FTP/TFTP/HTTP firmware upgrades, Telnet, SSH, and TR069 for easy configuration and maintenance.
Specifications of 4GE AC1200 XPON ONU
| Category | Details |
|---|---|
| Chip Model | RTL9607 + RTL8192 + RTL8812 |
| Memory | DDR3: 256MB / FLASH: 128MB |
| WiFi Chip | 2.4G & 5G: RTL8192 + RTL8812 |
| GPON Standards | ITU-T G.984 (G.984.1, G.984.2, G.984.3, G.984.4) |
| Wavelength | 1490 nm downstream / 1310 nm upstream |
| Network Protocols | 802.3 10/100/1000 Base T, 802.1Q VLAN, ANSI/IEEE 802.3 |

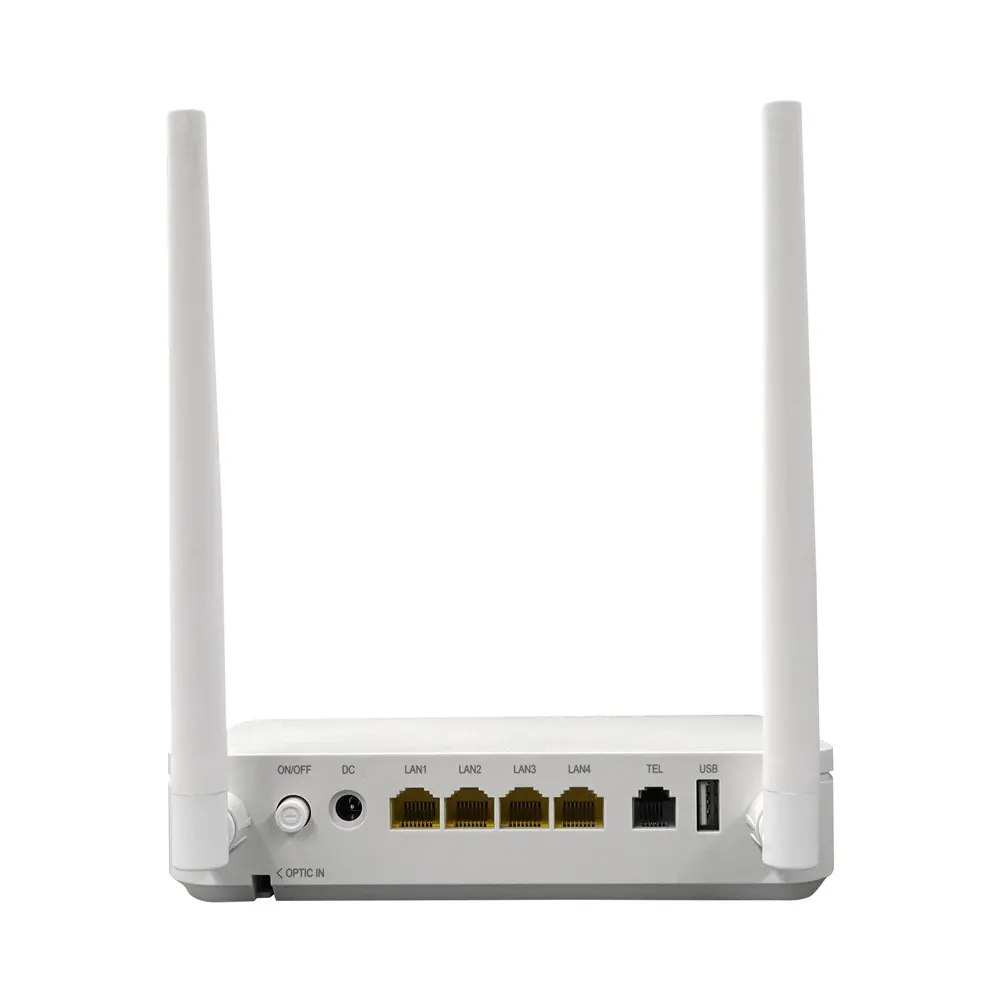

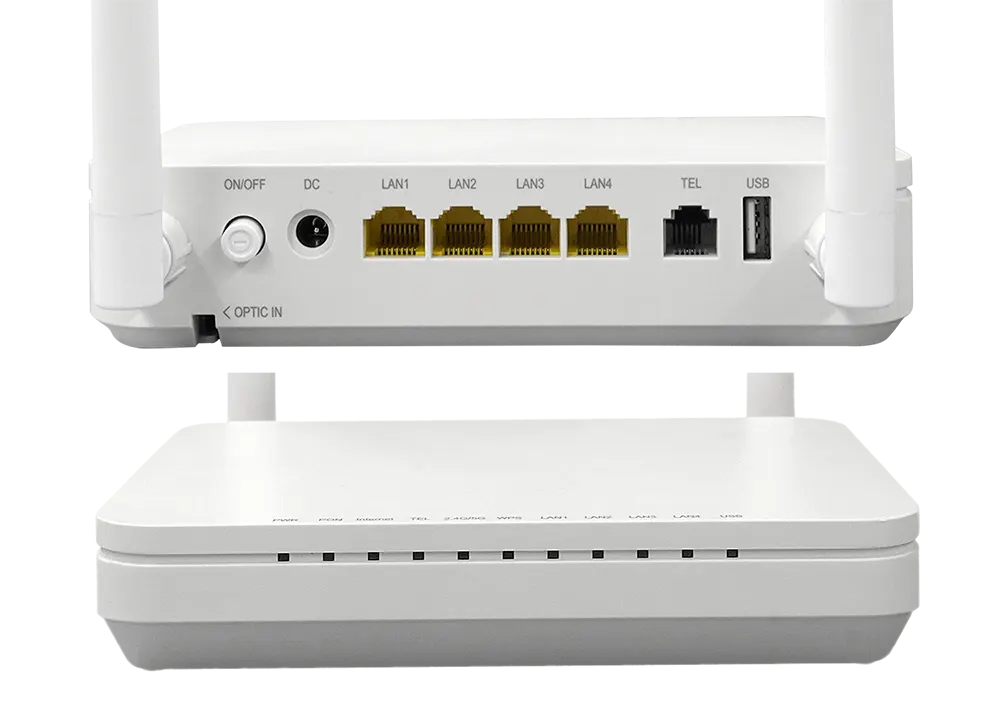

| Interfaces | 1x GPON (APC/UPC), 4x Gigabit Ethernet, 1x RJ-11 VoIP, 1x USB |
| LED Indicators | PWR, PON, Internet, TEL, 2.4G/5G, WPS, LAN1-4, USB |
| Power Supply | DC12V/1.5A |
| Dimensions | 170 x 151 x 195mm (L x W x H) |
| Operating Environment | Temperature: 0°C—40°C, Humidity: 10%—95% (non-condensing) |
Applications
The X3412 4GE AC1200 XPON ONU is ideal for:
- Fiber-to-the-Home (FTTH) deployments
- Telecom and broadcasting operator networks
- High-speed internet access with VoIP and WiFi services
- Residential and small business networks
Why Choose X3412 4GE AC1200 XPON ONU?
- Dual-Mode Flexibility: Seamlessly adapts to GPON or EPON networks, ensuring compatibility with various OLTs.
- High-Speed Performance: Delivers up to 2.488Gbps downstream and 1.244Gbps upstream for ultra-fast internet access.
- Advanced WiFi: Dual-band WiFi with speeds up to 867Mbps on 5GHz and 300Mbps on 2.4GHz.
- Robust Security: Protects your network with WPA/WPA2/WPA3 encryption and firewall features.
- Easy Management: Offers multiple management options, including Web GUI, Telnet, SSH, and TR069.
