CATV Wifi ONU AX3000 – GPON EPON ONT Modem Wifi 6 Optical Network Terminal for FTTX

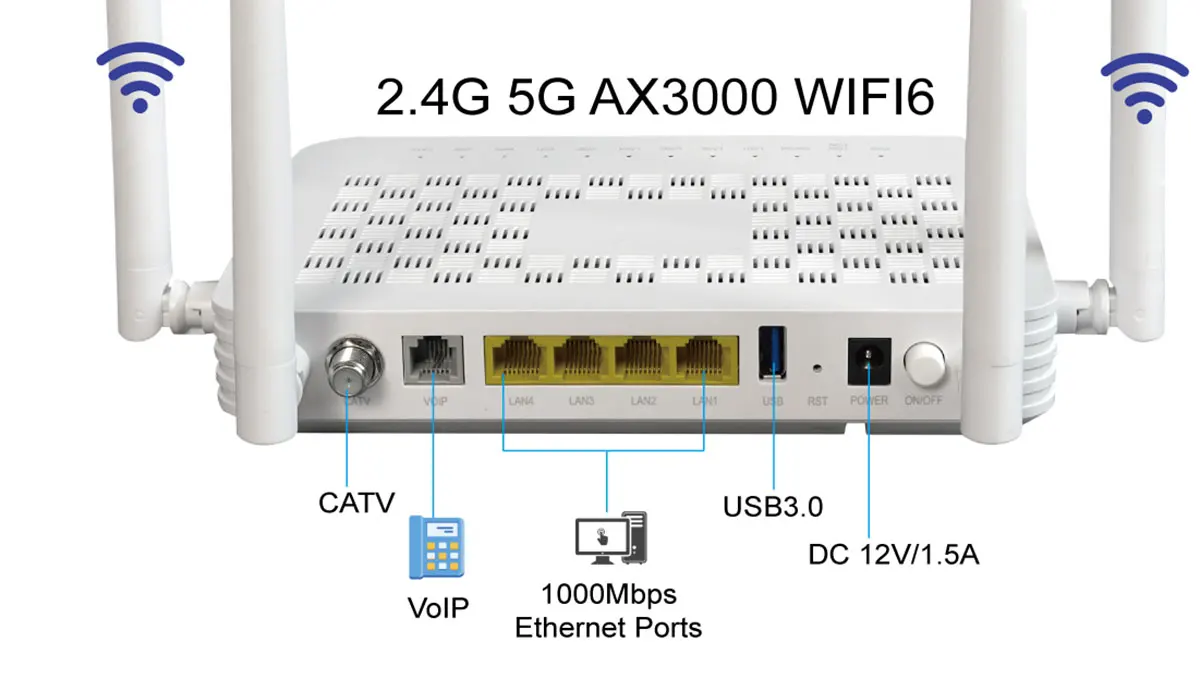

- 4 * GE electrical ports
- 1 * USB 3.0 port
- 1 * VOIP port
- 1 * CATV port
- 1 * AX3000 WiFi6 WLAN port
- WiFi Protocol: Dual-band WiFi6 AX3000 (2.4GHz & 5GHz)
- WiFi Speed: 574 Mbps (2.4GHz), 2402 Mbps (5GHz)
- Antenna: Dual-antenna MIMO (2*2)
Free Quote
Overview
The CATV Wifi ONU AX3000 X1430-C is a highly integrated optical terminal access device designed for home and small business use. It supports both GPON and EPON upstream technologies, providing ultra-bandwidth access and a range of functionalities, including Wi-Fi 6, VoIP, CATV, and Ethernet connectivity. With its dual-band Wi-Fi 6 (AX3000) and multiple ports, the X1430-C is the perfect solution for high-speed internet, voice, and video services.
Key Features of CATV Wifi ONU AX3000
- Dual-Band Wi-Fi 6 (AX3000): 2.4GHz and 5GHz bands with 2×2 MIMO technology, delivering speeds up to 574 Mbps (2.4GHz) and 2402 Mbps (5GHz).
- GPON/EPON Dual-Mode: Supports both GPON and EPON upstream technologies for flexible deployment.
- VoIP Support: Integrated VoIP port with G.711a/u, G.729a/b, and G.722 standards for high-quality voice communication.
- CATV Interface: Provides a CATV port with excellent signal quality (C/N ≥ 43dB, C/CTB ≥ 55dB, C/CSO ≥ 55dB, MER ≥ 32dB, BER ≤ 1*10E-6).
- Multiple Ports: 4 x GE Ethernet ports, 1 x USB 3.0 port, and 1 x CATV port for versatile connectivity options.
- Advanced Management: OMCI, Web UI, TR069, Telnet, and SSH management with CLI support for easy configuration and maintenance.
Specifications of CATV Wifi ONU AX3000
| Category | Details |
|---|---|
| Network Interfaces | 1 x G/EPON, 4 x GE Ethernet, 1 x VoIP, 1 x CATV, 1 x USB 3.0 |

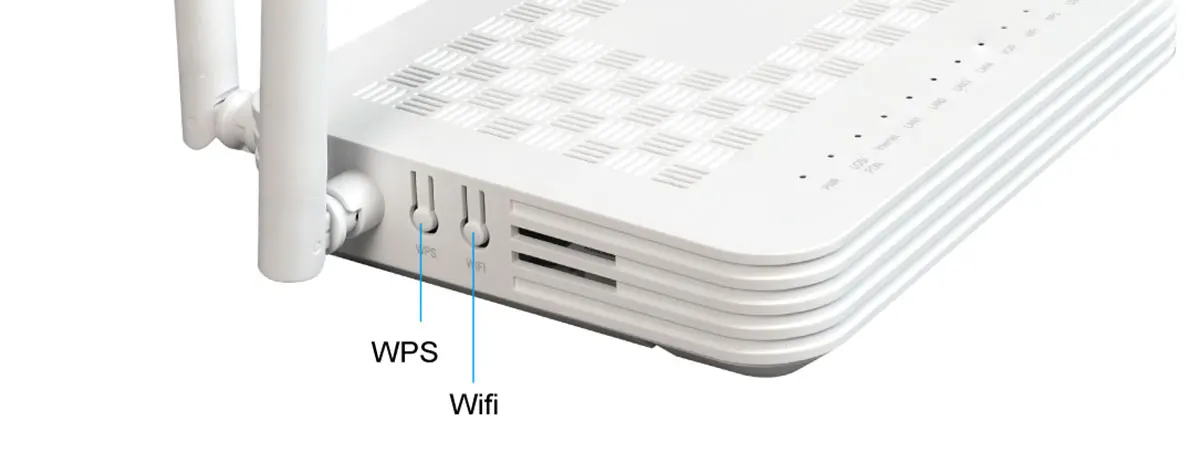

| Wi-Fi 6 (AX3000) | Dual-band (2.4GHz & 5GHz), 2×2 MIMO, WPA3 security, WPS support |
| Hardware | 256MB NAND Flash, 512MB DDR3 Memory |
| CATV Functionality | Remote control, Optical AGC, Output level: 76dBuV, RF bandwidth: 47 – 1000 MHz |
| Environmental | Operating Temperature: 0°C ~ 45°C, Power Supply: 12V/1.5A |
Applications
The X1430-C CATV Wifi ONU AX3000 is ideal for:
- Home broadband access
- Small business networks
- VoIP and video streaming services
- CATV signal distribution
