Dual Band Wifi ONU Router – High-Speed Internet Solution

Key Features of Dual Band Wifi ONU Router

• Dual Band WiFi 5: Supports 2.4GHz and 5GHz bands with speeds up to 300Mbps and 867Mbps respectively.
• Multiple Ports: 4 GE RJ45 ports, 1 USB port, 1 VoIP port, and 1 WiFi 5 WLAN port.
• High-Speed Connectivity: GPON upstream up to 1.25Gbps and downstream up to 2.48Gbps.
• Advanced Security: WPA-PSK, WPA2-PSK, WPA3, AES, and AES+TKIP for secure wireless connections.
• Easy Setup: WPS button for quick and secure connection setup within 2 minutes.

Technical Specifications of Dual Band Wifi ONU Router

Hardware Parameters

• Size: 190mm x 135mm x 33mm
• Power Consumption: ≤8W

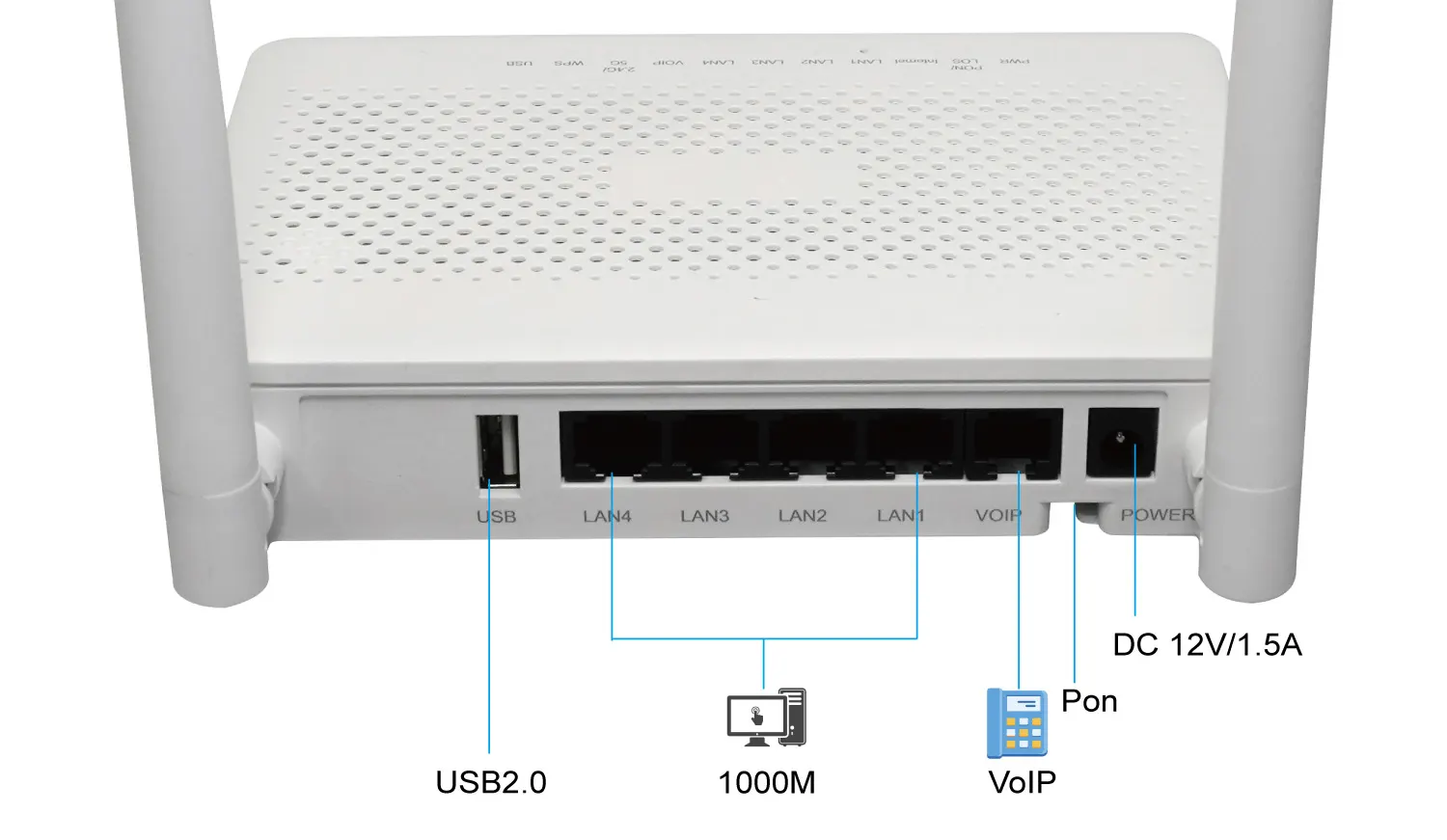

• Ports: 4x RJ45 (GE), 1x RJ11 (POTS), 1x SC/UPC (or SC/APC), 1x DC, 1x USB 2.0
• LED Indicators: POWER, PON/LOS, NET, LAN, POTS, WiFi, WPS, USB

Interface Parameters

• G/EPON Port: GPON Class B+, EPON PX20+
• Ethernet Port: 10/100/1000Mbps, VLAN support, MAC address learning
• VoIP Port: Supports G.711A/G.711U/G.729/G.722, SDP protocol, T.30/T.38/G.711 fax mode

WiFi5

• WiFi Protocol: 2.4GHz 802.11b/g/n, 5GHz 802.11a/n/ac
• Transmit Power: 2.4G 100mW, 5G 200mW
• Antenna: Dual-antenna MIMO (2.4G & 5G)
• WLAN Penetration: One reinforced concrete wall or two ordinary brick walls
• WLAN Access: Up to 64 clients

Environment

• Operating Temperature: 0℃ ~ 45℃
• Storage Temperature: -20℃ ~ 70℃
• Operating Humidity: 5% ~ 95% (non-condensing)
• Power Supply: 12V/1.5A

Why Choose G1412 Wifi ONU Router?

The G1412 Wifi ONU Router is designed to provide high-speed internet access with advanced features for both home and business use. With its dual-band WiFi 5 technology, multiple ports, and robust security features, it ensures a reliable and secure connection for all your devices.
