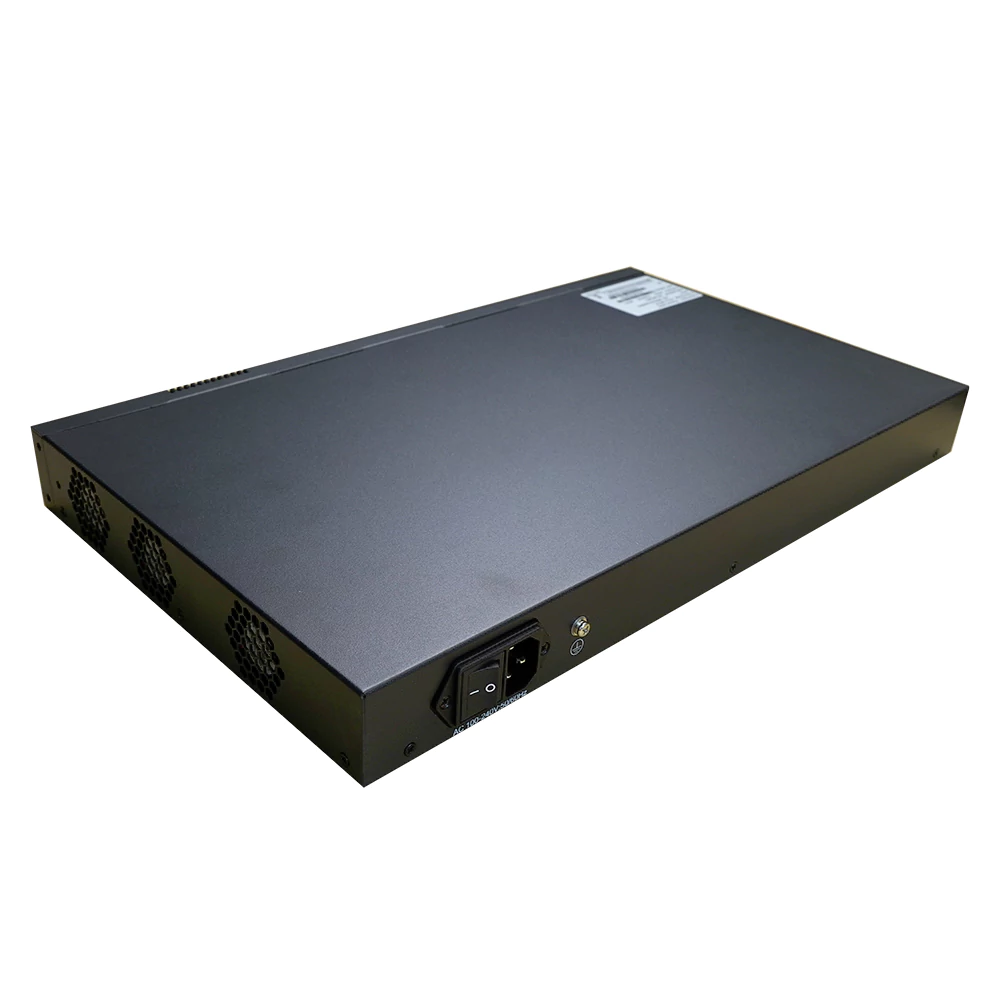

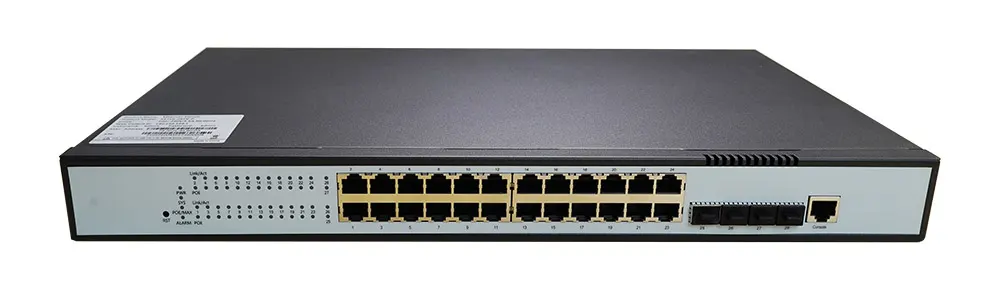

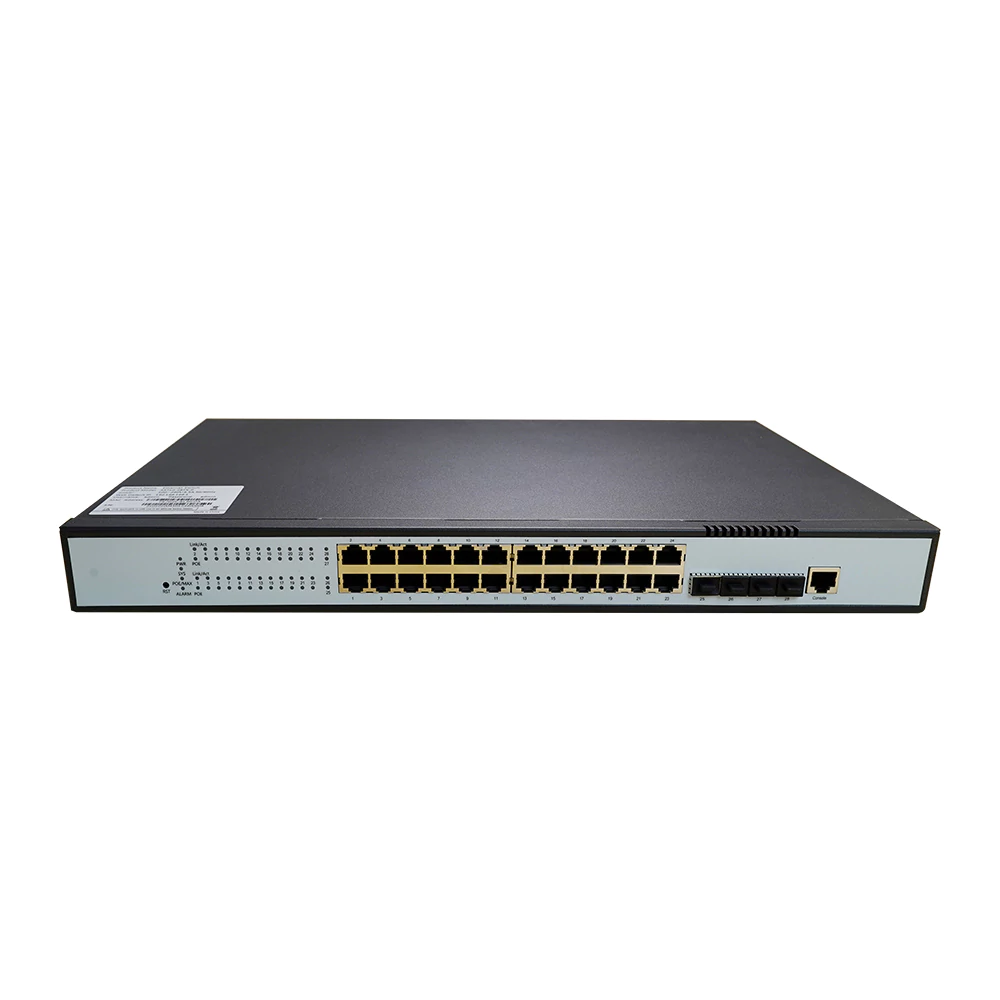

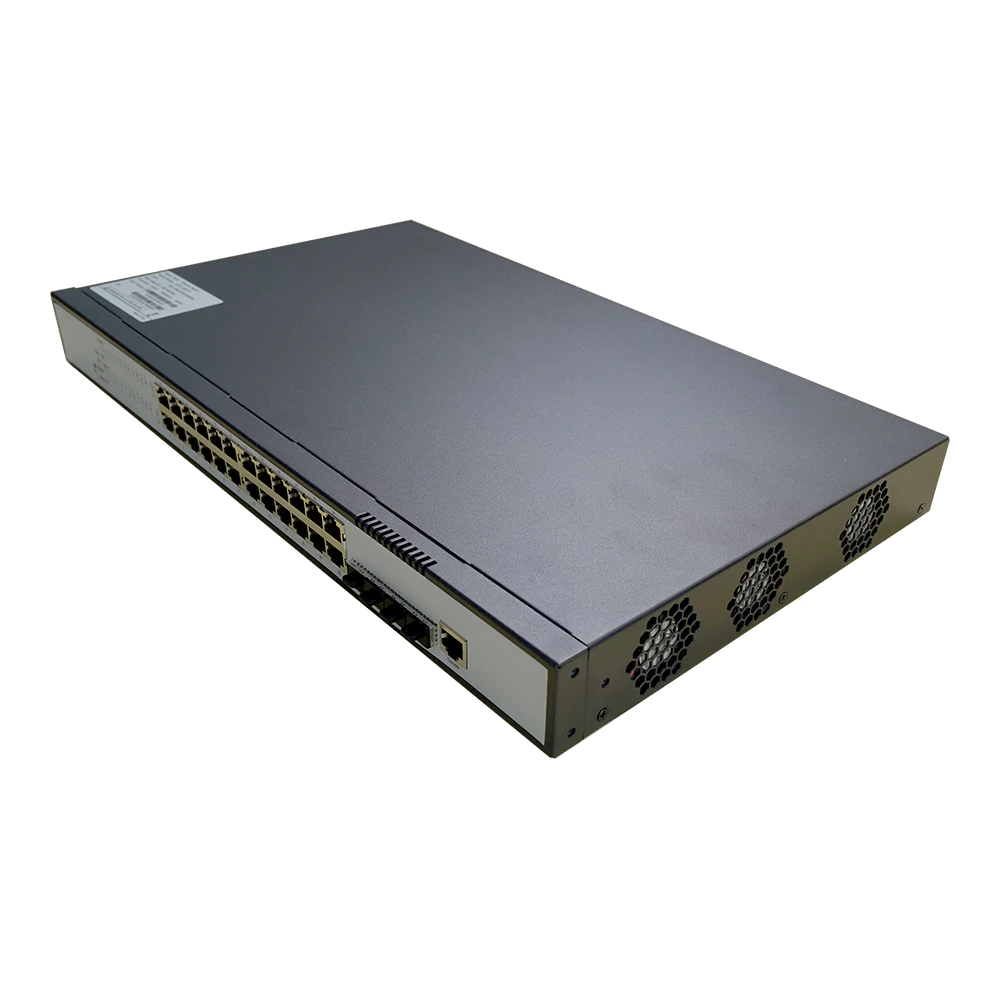

Ethernet Network Switch 24 Ports – SG6324-ACB
- Model: SG6324-ACB
- Ports: 24 x 10/100/1000M Base-T, 4 x 1000M Base-X SFP/10GE SFP+
- Switching Capacity: 128Gbps
- Packet Forwarding Rate: 95Mbps
- MAC Address Table: 16K
- Multicast: 1K
- Routing: 512
- Memory and Storage: Memory: 512MB, Storage: 32MB

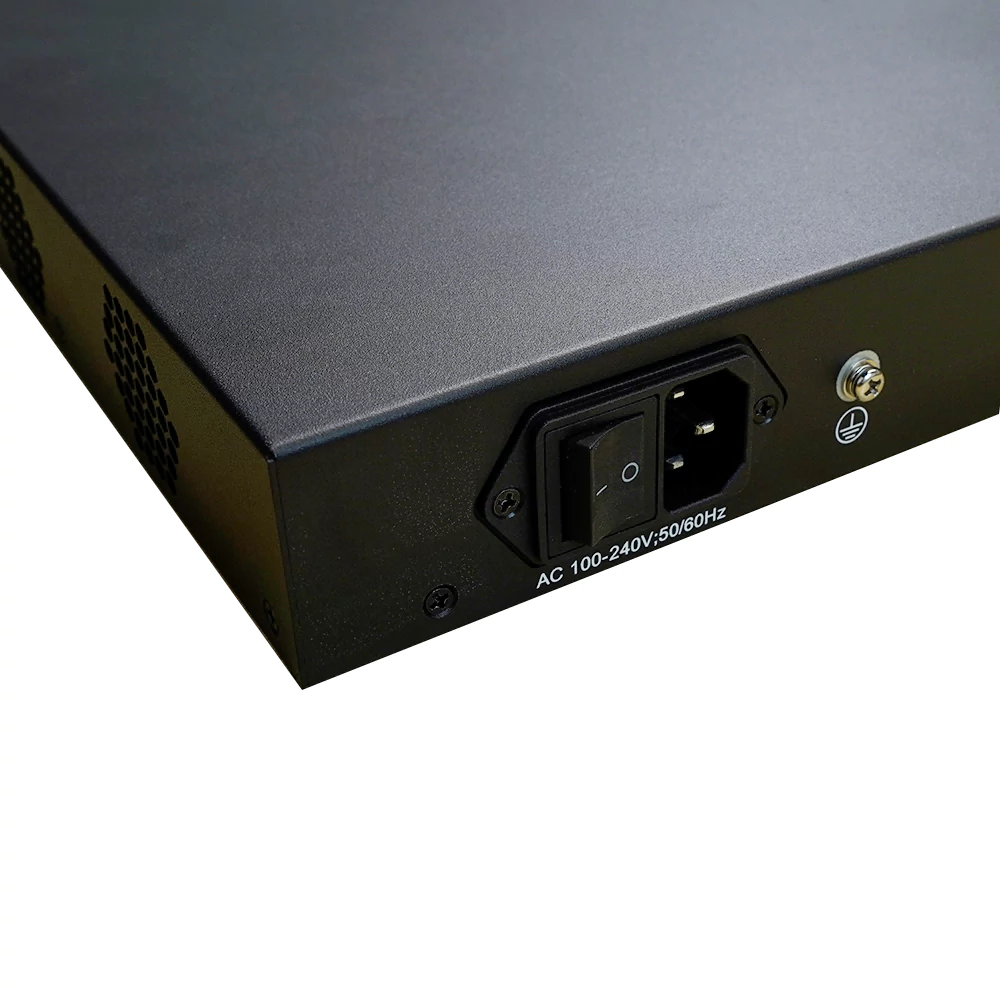

- Power: AC: 100~240V 47/63Hz; DC: 36V~75V; ≤22W
- Weight: ≤3kg
- Dimensions: 440 x 210 x 44 mm
- Operating Temperature: -10℃~55
- Storage Temperature: -40℃～70℃
Free Quote
Product Overview
The Ethernet Network Switch 24 Ports SG6324-ACB is a high-performance Layer 3 Ethernet switch designed to meet the needs of cost-effective Gigabit access and 10-Gigabit uplink for enterprise networks and operator customers. It features a high-performance, low-power network processor, providing Gigabit line-speed forwarding performance and supporting green Ethernet line sleep capability. With the lowest power consumption in its class, it offers powerful QoS and ACL functions, along with IP+MAC+ security features.
Key Features of Ethernet Network Switch 24 Ports
- Carrier-level Stability: Based on Linux OS, supports IPv4/IPv6 dual protocol stack, and multiple link redundancy protocols like STP/RSTP/MSTP/ERPS/LACP.
- Advanced Security: Supports ACL filtering, ARP/DHCP attack protection, DDOS and virus protection, and IEEE 802.1X authentication.
- Powerful QoS: Includes port speed and flow speed limits, service flow classification, and queue scheduling algorithms like SP/WRR/SP+WRR.
- Enhanced Multi-service Capabilities: Supports DHCP Server/Relay, L2-Tunnel, and Ethernet OAM protocols like CFM and EFM.
- Rich Routing Protocols: Supports static and dynamic routing (RIP, OSPF, BGP, ISIS) and IPv4/IPv6 dual protocol stack.
- Easy Network Management: Offers CLI, Telnet, WEB, SNMP V1/V2/V3, SSH2.0, and remote upgrade via FTP/TFTP.
Hardware Specifications of Ethernet Network Switch 24 Ports
| Attribute | Specification |
|---|---|
| Ports | 24 x 10/100/1000M Base-T, 4 x 1000M Base-X SFP/10GE SFP+ |
| Switching Capacity | 128Gbps |
| Packet Forwarding Rate | 95Mbps |
| MAC Address Table | 16K |
| Memory and Storage | 512MB Memory, 32MB Storage |
| Power Consumption | ≤22W |
| Dimensions | 440 x 210 x 44 mm |
| Operating Temperature | -10℃ to 55℃ |
Software Specifications
| Feature | Description |
|---|---|
| VLAN | Supports 4K VLAN, dual Tag VLAN, static and flexible QinQ |
| ACL | Standard and extended ACL, time-based ACL policies |
| QoS | Flow rate limiting, priority marking, queue scheduling algorithms |
| Security | IEEE 802.1X, Radius&TACACS+, MAC address learning limit, port isolation |
| Layer 3 | Static and dynamic routing (RIP, OSPF, BGP, ISIS), VRRP |
