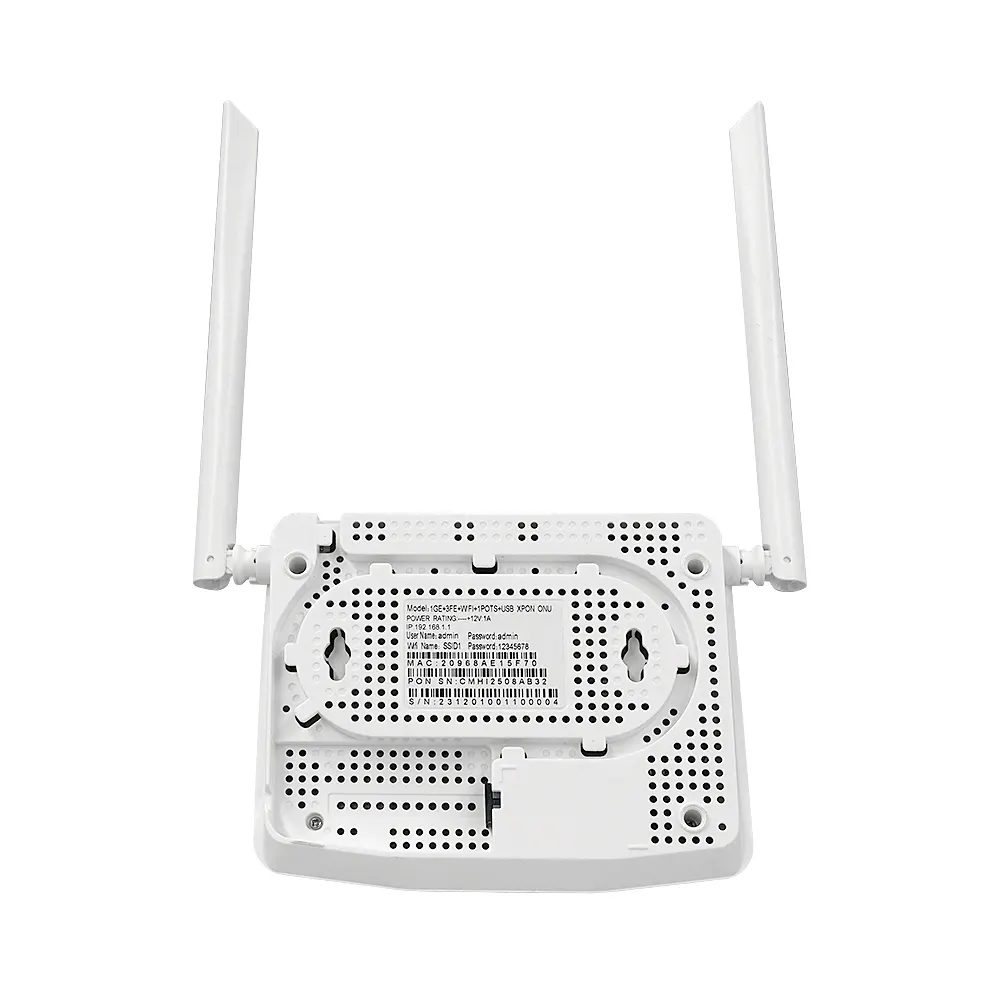

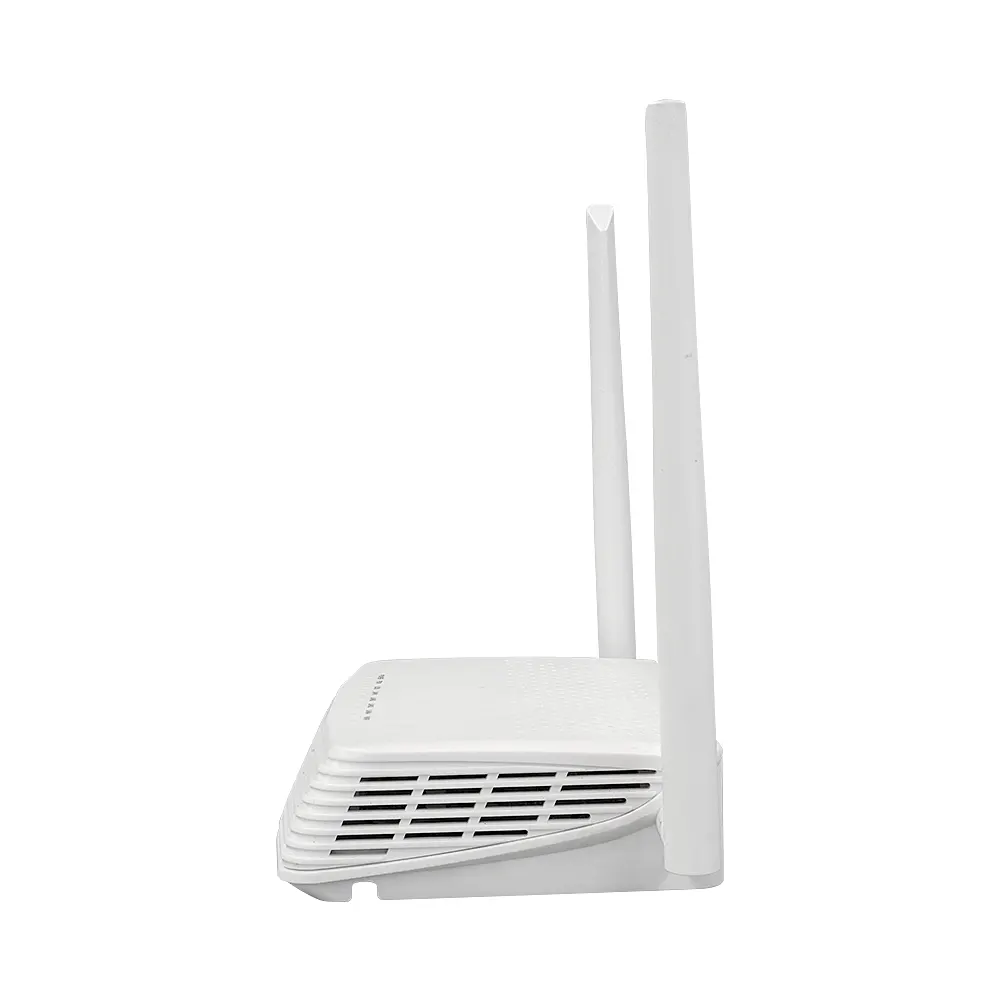

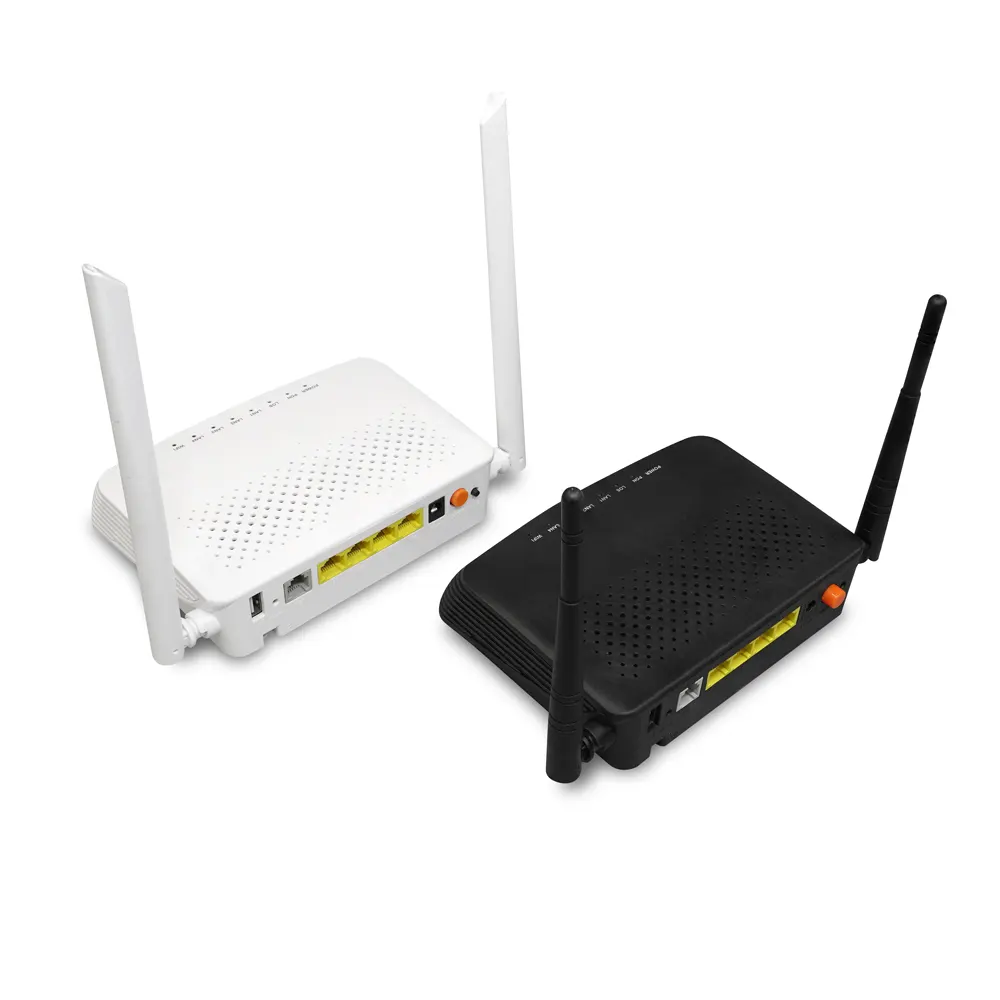

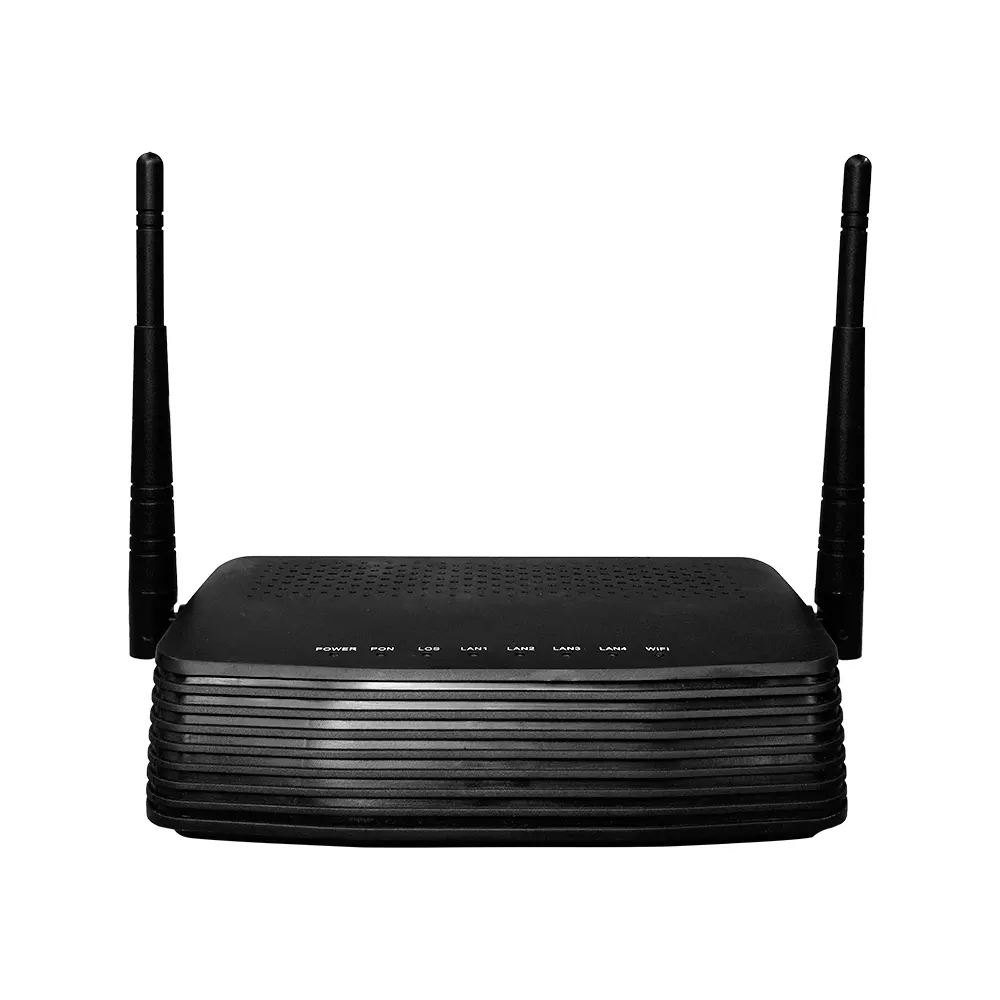

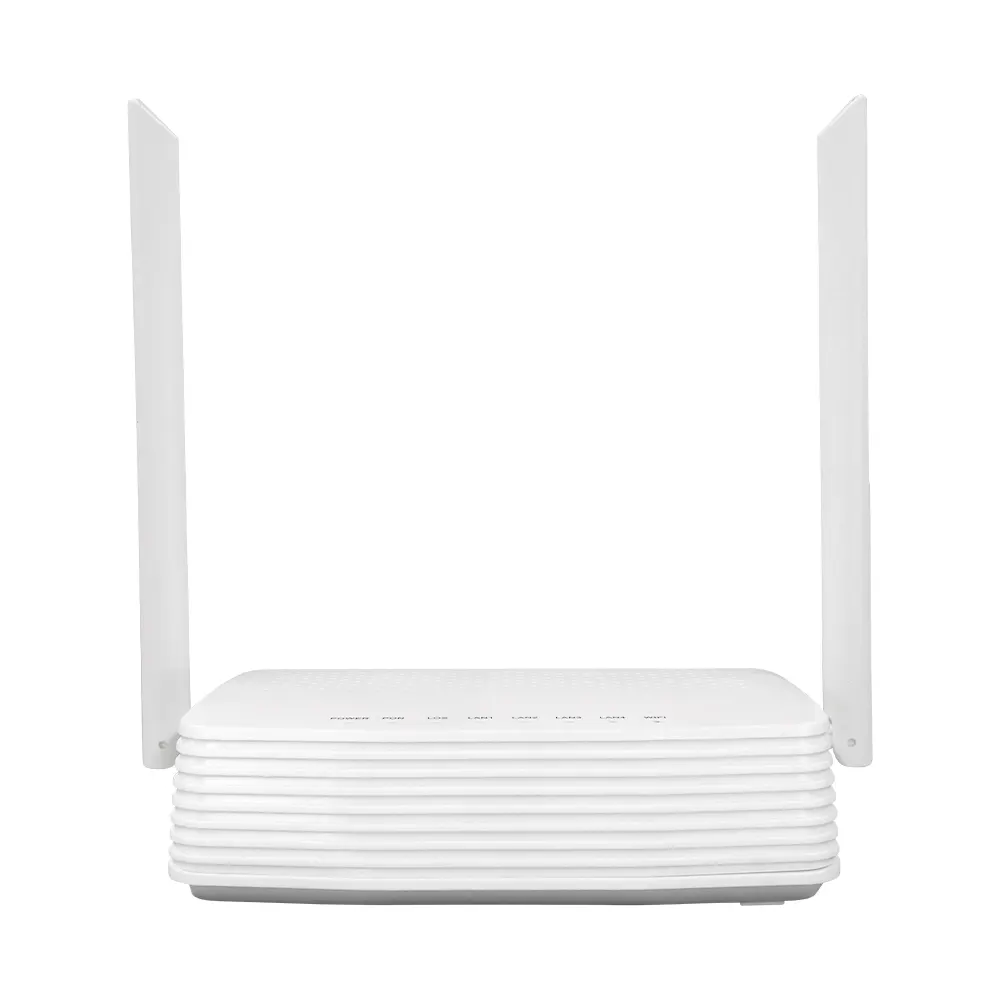

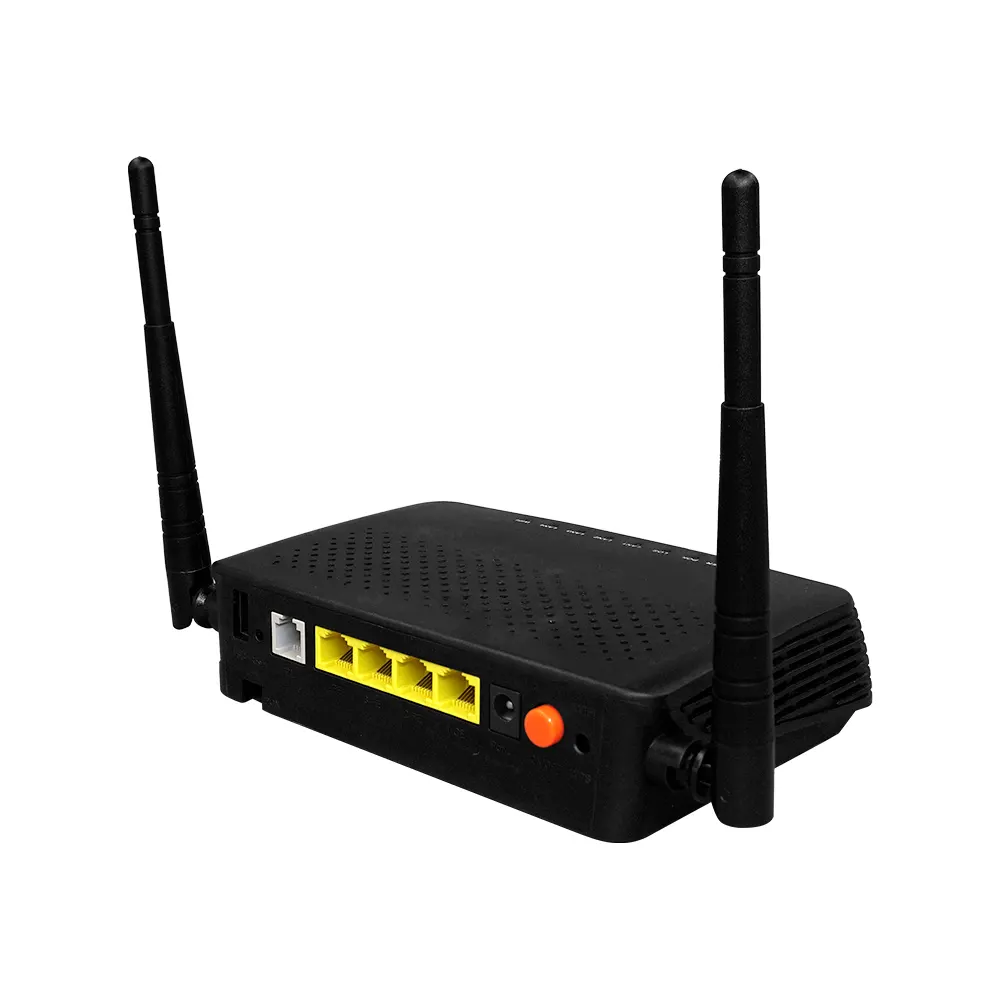

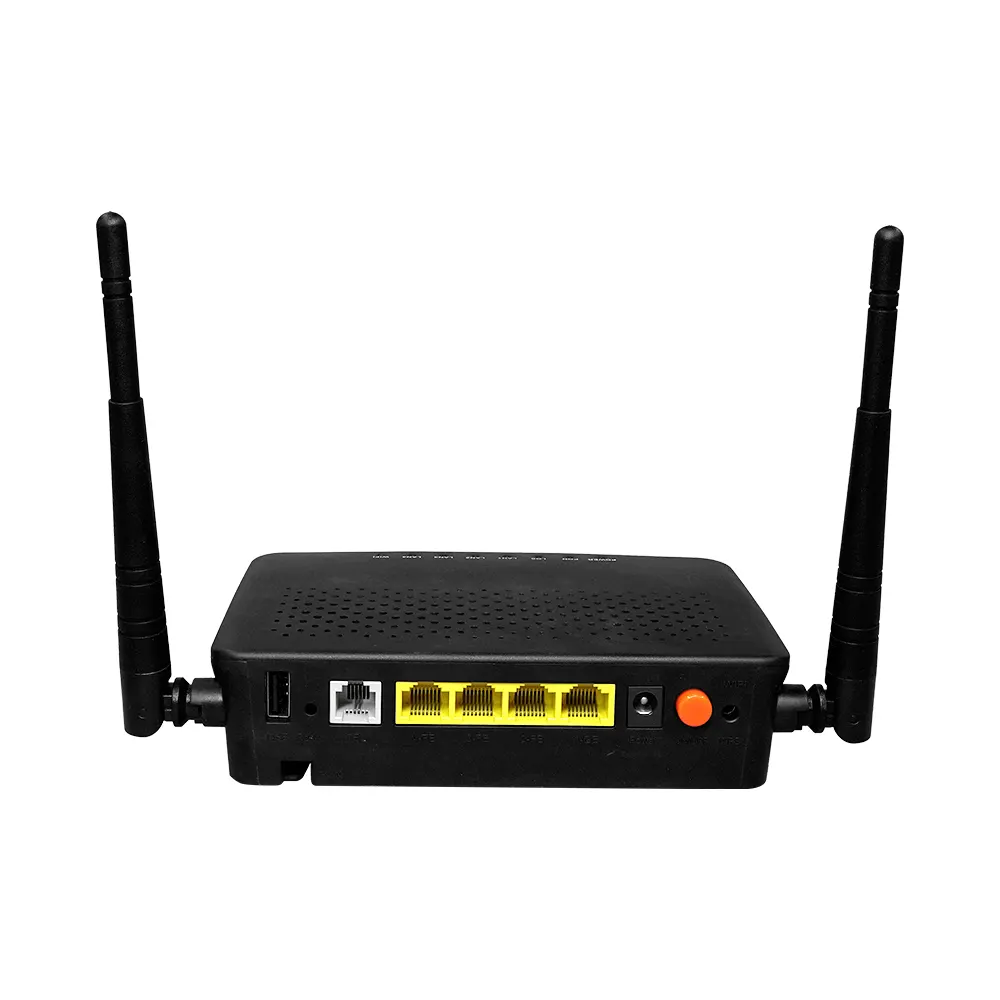

Factory Price XPON ONU Router – Dual-Mode EPON/GPON Fiber Optic Router

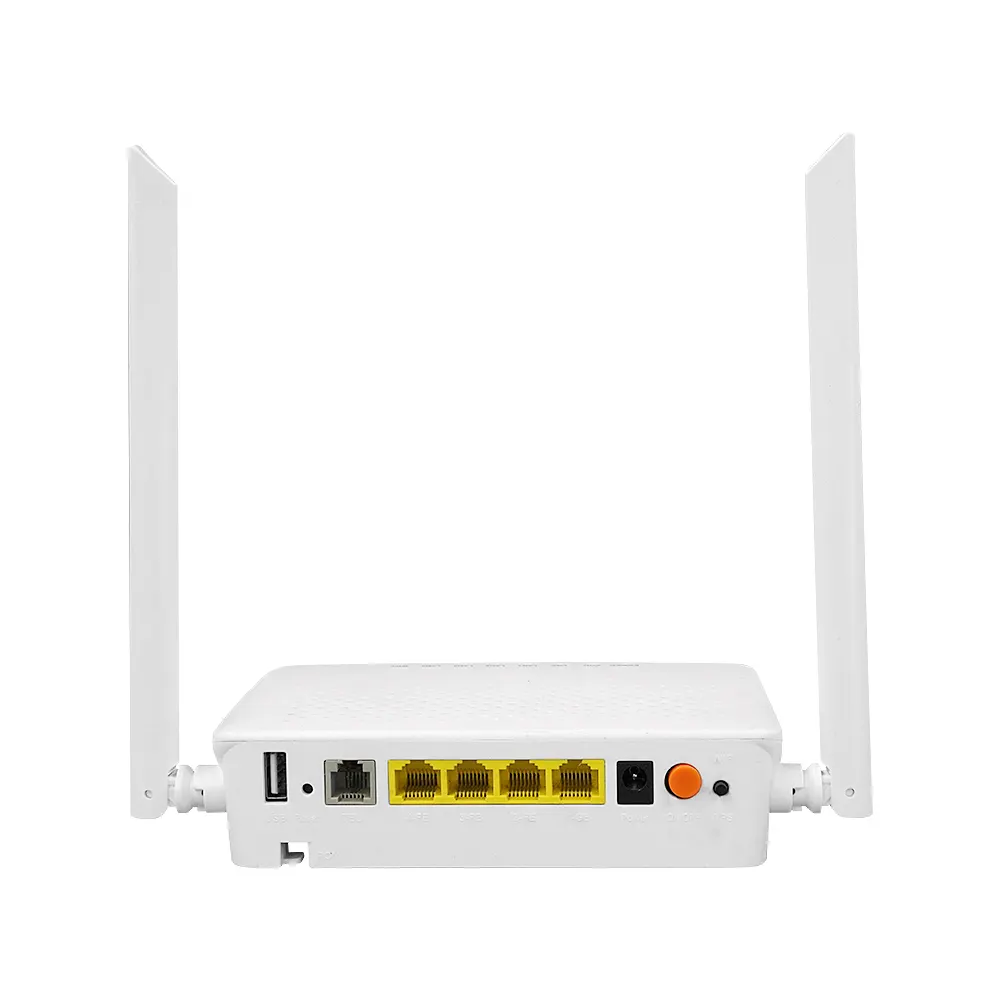

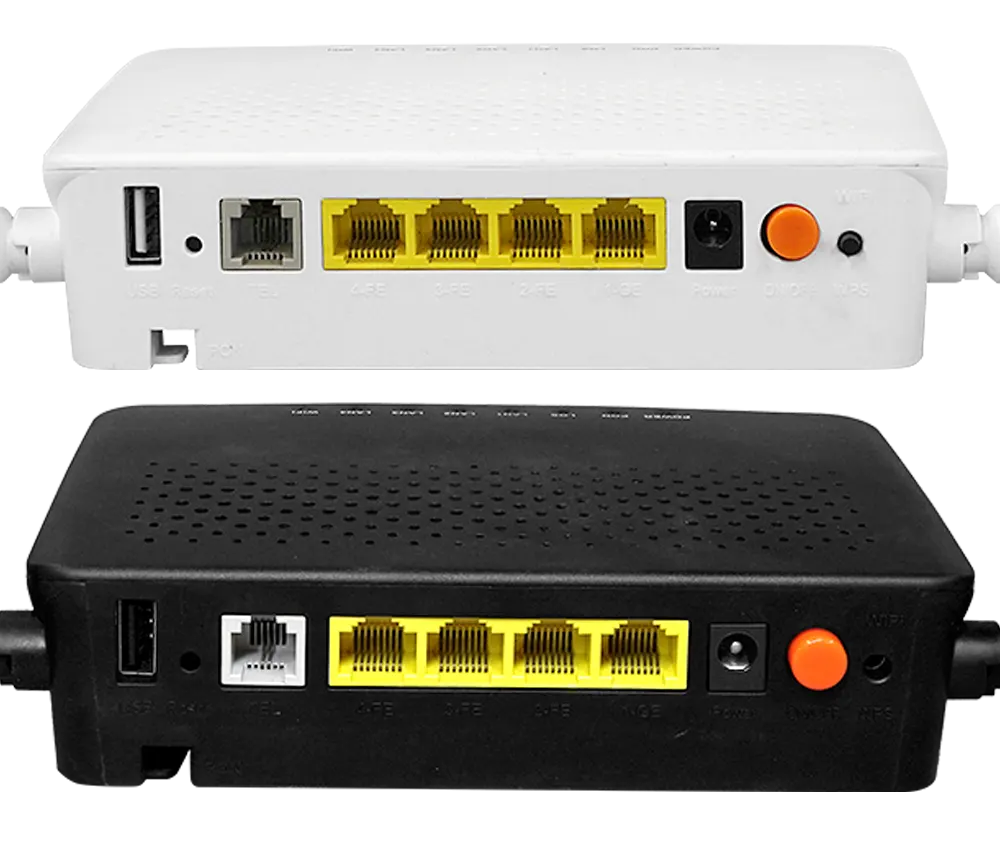

- PON interface: 1 E/GPON port, supporting EPON PX20+ and GPON Class B+ standards.
- LAN interface: 1 Gigabit Ethernet interface (10/100/1000Mbps) and 3 100Mbps of Ethernet interface (10/100Mbps).
- POTS interface: 1 FXS telephone interface, supports VoIP function.
- USB port: 1 USB 2.0 port.
- WiFi: Supports 802.11b/g/n WiFi in the 2.4GHz band, with a maximum speed of up to 300Mbps, and supports MIMO and multiple SSIDs.
Free Quote
Product Overview
Our XPON ONU Router is a high-performance, dual-mode fiber optic network terminal that supports both EPON and GPON standards. Designed for FTTH (Fiber to the Home), FTTO (Fiber to the Office), and FTTD (Fiber to the Desk) applications, this router offers a cost-effective solution for high-speed internet access, VoIP, and WiFi connectivity.
Key Features of Factory price xpon onu router X7403
- Dual-Mode Support: Compatible with both EPON and GPON networks.
- High-Speed WiFi: Supports 2.4GHz 802.11b/g/n WiFi with speeds up to 300Mbps.
- Multiple Ports: 1 x GE (Gigabit Ethernet) and 3 x FE (Fast Ethernet) ports for wired connections.
- VoIP Support: 1 FXS port for voice over IP with support for G.711, G.723, G.726, and G.729 codecs.
- USB Interface: 1 x USB 2.0 port for additional connectivity options.
- Plug and Play: Auto-detection, auto-configuration, and auto firmware upgrade.
- Remote Management: Integrated OAM for remote configuration and maintenance.
- Advanced Networking: Supports NAT, Firewall, IPv4/IPv6 dual stack, QinQ VLAN, and IGMP Snooping.
- Wide Temperature Range: Operates in temperatures from 0℃ to +50℃, suitable for various environments.
Technical Specifications of Factory price xpon onu router X7403
| Parameter | Details |
|---|---|
| PON Interface | 1 x E/GPON port (EPON PX20+ and GPON Class B+) |
| Wavelength | Tx: 1310nm, Rx: 1490nm |
| LAN Interface | 1 x 10/100/1000Mbps, 3 x 10/100Mbps (RJ45) |
| WiFi | IEEE 802.11b/g/n, 2.4GHz, up to 300Mbps |
| POTS Interface | 1 x FXS (RJ11), supports VoIP and fax |
| USB Interface | 1 x USB 2.0 |
| Power Supply | DC 12V, 1/1.5A |
| Power Consumption | ≤10W |
| Dimensions | 150 x 117 x 35mm |
| Weight | 0.23kg |
Applications
Our XPON ONU Router is ideal for:
- Residential Broadband Access (FTTH): Perfect for homes requiring high-speed internet and VoIP services.
- Small Office/Home Office (SOHO): Provides reliable connectivity for small businesses and remote workers.
- Video Surveillance: Supports high-bandwidth applications like IP cameras and video streaming.
- Cost-Effective Fiber Solutions: Ideal for low-cost fiber optic network deployments.
Why Choose Us?
- Factory Price: We offer competitive pricing directly from the factory.
- High Quality: Our products are built to meet international standards and are highly reliable.
- Wide Compatibility: Fully compatible with OLTs based on Broadcom, PMC, and Cortina chipsets.
- Excellent Support: We provide comprehensive technical support and after-sales service.
