G5412A Gigabit XPON WiFi ONU with 4GE Ports – 2.4G 5.8G Dual Band Wifi5 ONT Modem
- Transmission distance: Maximum 20 kilometers
- Data rate: upstream 1.25Gbps, downstream 2.5Gbps
- Wireless Standard: IEEE 802.11a/n/ac (5GHz, 867Mbps)
- Wireless standard: IEEE 802.11b/g/n (2.4GHz, 300Mbps)
- Wireless security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
- VOIP standard: SIP ITU-T G.729/G.722/G.711a/G.711
- 1 SC/APC XPON port
- 4 10/100/1000Mbps LAN ports
- 1 FXS port
- 2 USB 2.0 ports

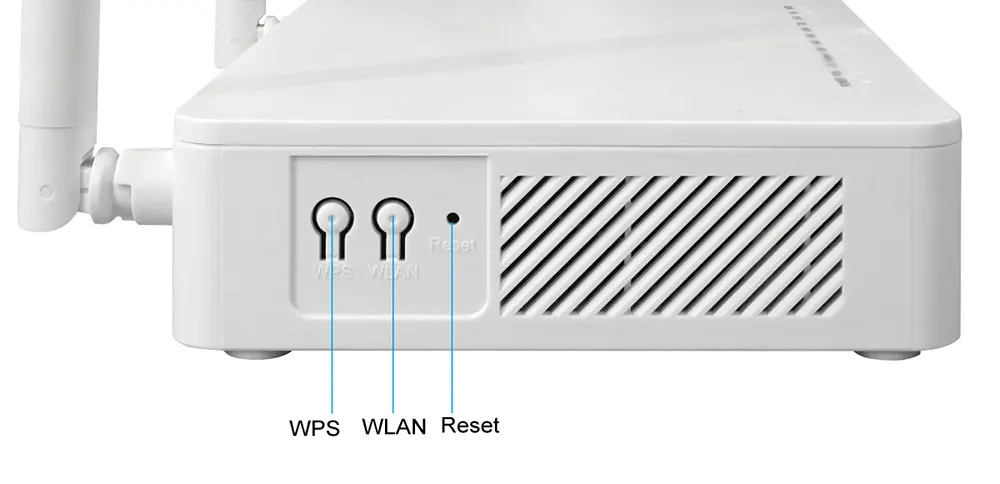

- Buttons: Power switch button, WPS button, WLAN button, Reset button
- Power supply: DC 12V 1.5A
- Antenna: 2 2.4GHz/5GHz 5dBi dual-band external antennas
- Dimensions (L x Width x Height): 205mm x 135mm x 37mm
Free Quote
Product Overview
The G5412A is a high-performance Gigabit XPON WiFi ONU designed for both home and office environments. With 4 Gigabit Ethernet ports, dual-band WiFi, and VoIP support, it provides a seamless internet experience with speeds of up to 1200Mbps. Its robust design ensures reliable connectivity over distances of up to 20Km.
Key Features of Gigabit XPON WiFi ONU
- Dual-band WiFi: Supports 802.11ac with combined speeds of up to 1200Mbps at 2.4GHz and 5GHz.
- High-speed Internet: Upstream speeds of 1.25Gbps and downstream speeds of 2.5Gbps.
- 4 Gigabit Ethernet Ports: Ideal for connecting multiple devices at high speeds.
- VoIP Support: Includes 1 FXS port for analog telephones, supporting SIP standards.
- Remote Management: Supports OMCI for easy remote management.
- External Antennas: Dual-band external antennas enhance wireless range and sensitivity.
Specifications of Gigabit XPON WiFi ONU
| Feature | Details |
|---|---|
| Device Model | G5412A |

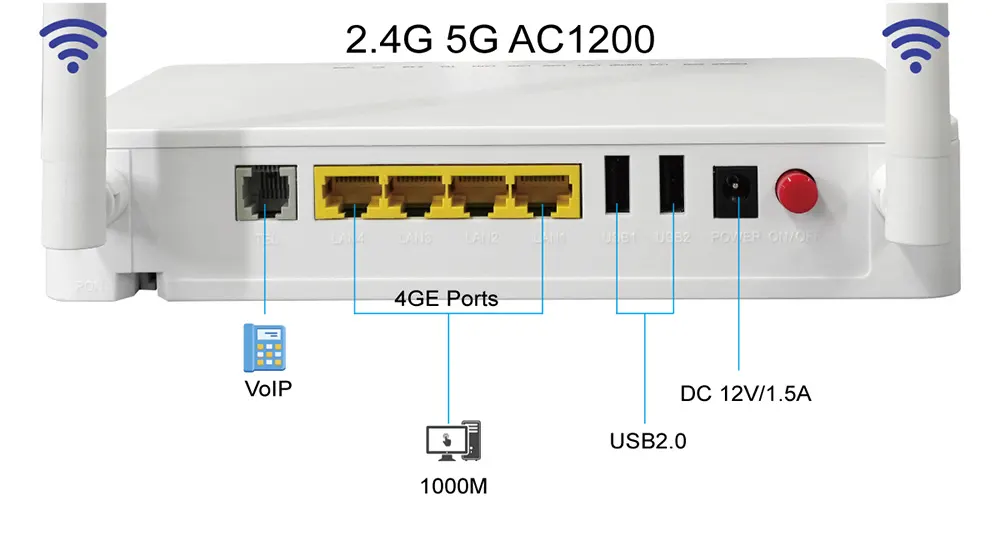

| Ports | 4 x GE LAN, 1 x POTS, 1 x WLAN (Dual-band 802.11AC), 2 x USB 2.0 |
| CPU Chipset | ZTE ZX279128S |
| WiFi Chipset | 2.4GHz: MTK MT7603EN, 5GHz: MTK MT7613AEN |
| RAM | 512MB |
| Flash Memory | 256MB |
| Data Rates | Upstream: 1.25Gbps, Downstream: 2.5Gbps |
| Wireless Standards | IEEE 802.11a/n/ac (5GHz), IEEE 802.11b/g/n (2.4GHz) |
| VOIP Standards | SIP ITU-T G.729/G.722/G.711a/G.711 |
| Power Supply | DC 12V 1.5A |
| Dimensions | 205mm x 135mm x 37mm |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
Why Choose G5412A?
The G5412A Gigabit XPON WiFi ONU is the perfect solution for users seeking high-speed internet, reliable WiFi, and VoIP capabilities. Its dual-band WiFi ensures fast and stable connections, while the 4 Gigabit Ethernet ports allow for multiple wired connections. With easy setup and remote management, the G5412A is ideal for both home and office use.
