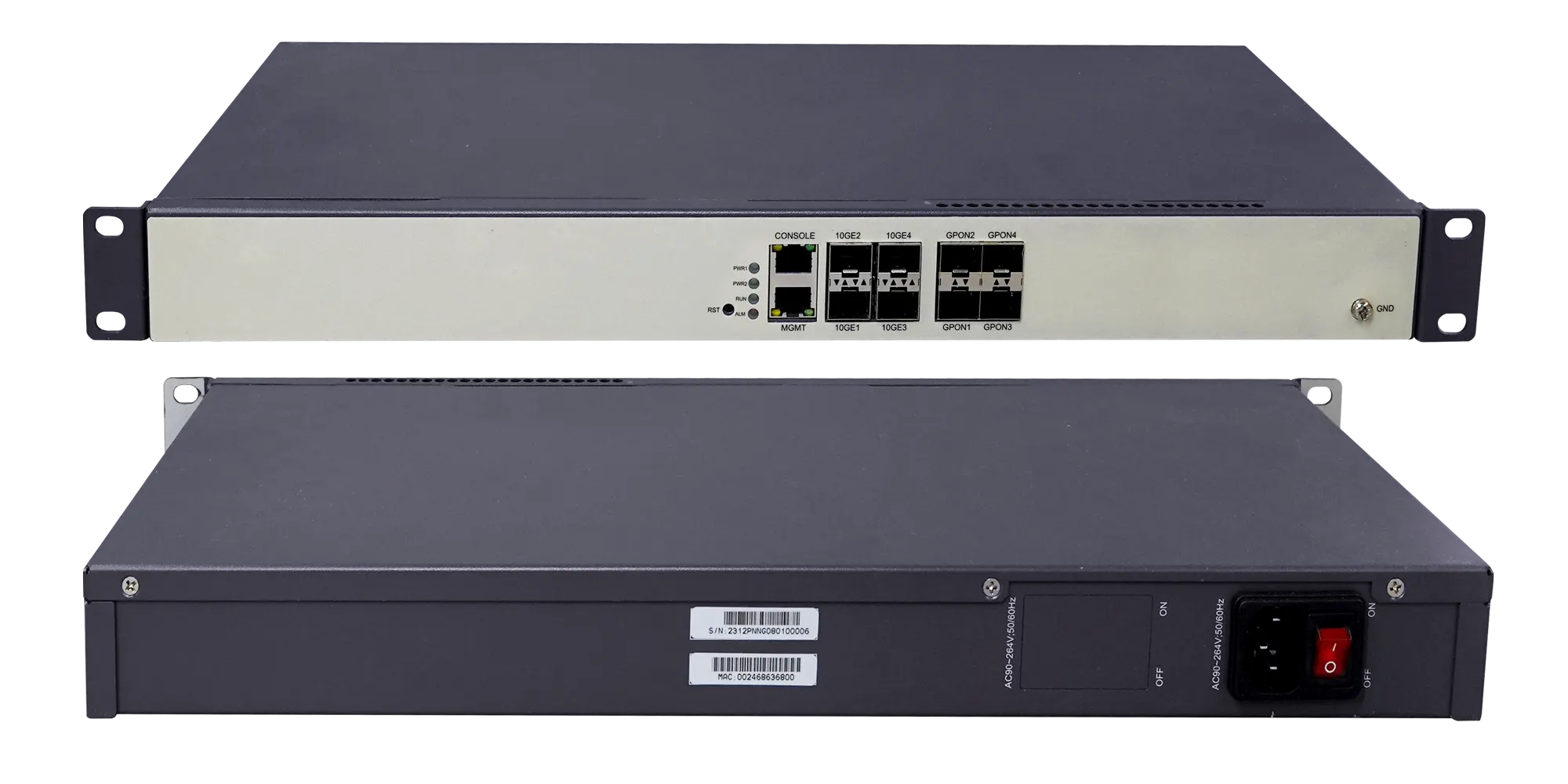

GT04 OLT GPON 4 Ports – High-Capacity GPON OLT for FTTx Networks
- External dimensions: 483mm x 44mm x 220mm (1U size)
- Operating environment: Temperature -10°C to +55°C, humidity 10% to 90%
- Power consumption: <60W
- Power supply: Dual power supply, supports dual AC inputs (90V to 264V)
- Switching Capacity: 80Gbps
- MAC address capacity: 8K
- Uplink Interface: 2 x 10G XE SFP+, compatible with GE optical/copper SFPs
- PON Interface: 4 GPON SFPs, supports Class B+/C+/C++
- Management mode: EMS/Web/CLI/Telnet/SNMP, etc.
- Translated with DeepL.com (free version)
Free Quote
Product Overview
The GT04 OLT GPON 4 Ports is a compact 1U GPON Optical Line Terminal designed for high-performance FTTx deployments. With 4 GPON ports, dual 10G uplinks, and 80Gbps switching capacity, it supports seamless access for homes, enterprises, and telecom networks. Compliant with ITU-T G.984.x/G.988.x standards, it ensures reliable service delivery up to 60km.
The GPon OLT device, as an optical access local equipment, is deployed in the access equipment room or access node and can provide a full service optical access platform. GPON is used to connect ONU devices to access various services of users, and Ethernet is used to access the carrier and core network of each service. can achieve FTTX access with a single device, with a clear network structure and low complexity, easy to deploy.
Key Features: 4x GPON Ports | 80Gbps Switching | 128 Terminals per Port | IPv4/IPv6 Dual Stack | Advanced QoS & Security
Technical Specifications of OLT GPon 4 Ports
| Category | Details |
|---|---|
| Dimensions (W/H/D) | 483mm x 44mm x 220mm (1U Rack-Mountable) |
| Operating Environment | -10°C to +55°C, 10%–90% RH |
| Power Supply | Dual AC (90V–264V), <60W Consumption |
| Switching Capacity | 80Gbps Backplane & Control Board |
| Uplink Interfaces | 2x 10G XE SFP+ (GE Compatible) |
| PON Interfaces | 4x GPON SFP (Class B+/C+/C++) |
| MAC Capacity | 8K Addresses |
| Management | EMS, Web, CLI, SNMP, Telnet |
| Standards | ITU-T G.984.x/G.988.x, IEEE 802.1Q/1ad |
Key Features of OLT GPon 4 Ports
GPON Performance
- 128 ONUs per PON port | 60km Max Distance
- Downstream 2.488Gbps / Upstream 1.244Gbps
- AES-128 Encryption & DBA (Dynamic Bandwidth Allocation)
Advanced Networking
- L2/L3 Switching: VLAN, QinQ, RSTP, OSPF, BGP
- IPv4/IPv6 Dual Stack & Multicast (IGMP/MLD Snooping)
- QoS: 8 Priority Queues, CAR, Traffic Shaping
Security & Reliability of OLT GPon 4 Ports
- Dual Power Redundancy (AC/DC)
- Anti-DDoS, ARP Protection, ACLs
- SNMPv3, SSHv2, HTTPS Management
Applications
Ideal for:
- FTTH/FTTB/FTTE Deployments
- Enterprise & Campus Networks
- Carrier-Grade IPTV & VoIP Services
Why Choose GT04 GPON OLT ?
- High Density: Serve 512 ONUs with 4 ports.
- Future-Ready: Smooth IPv6 migration and L3 routing.
- Easy Management: Web/SNMP/CLI for unified control.
