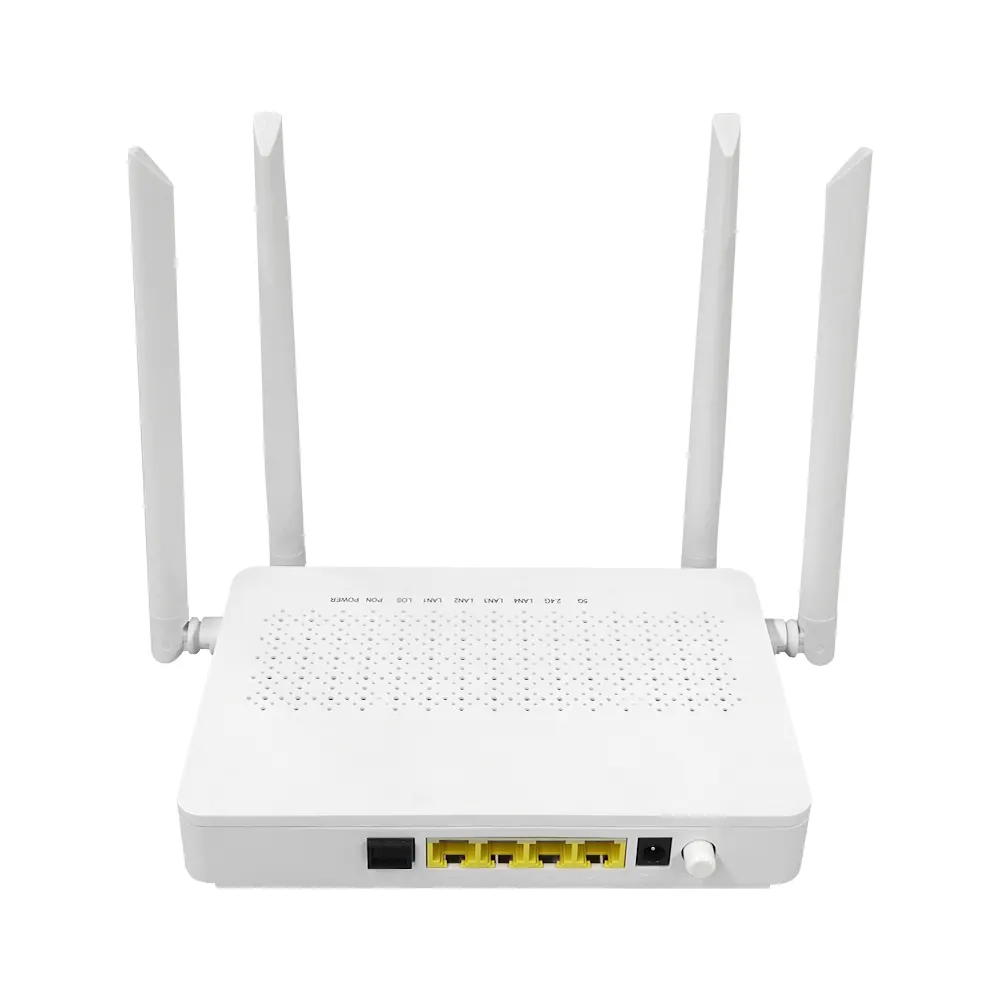

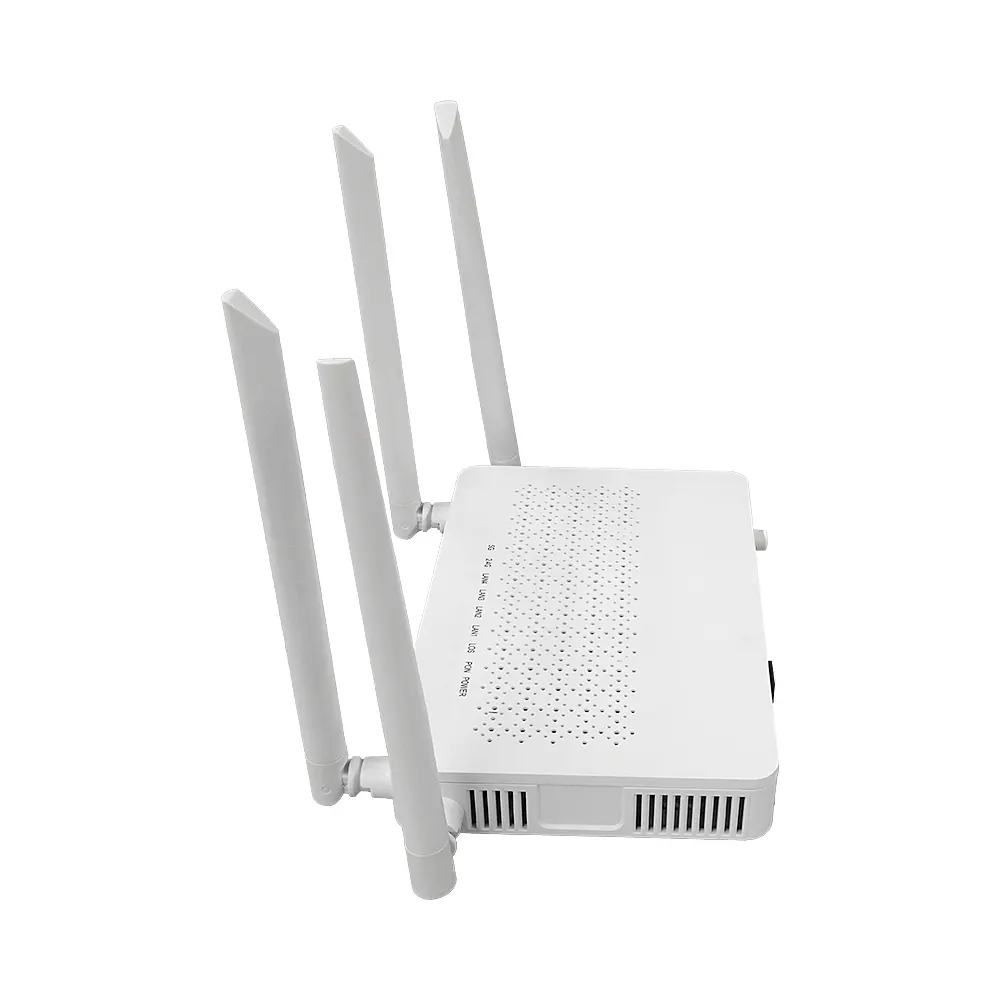

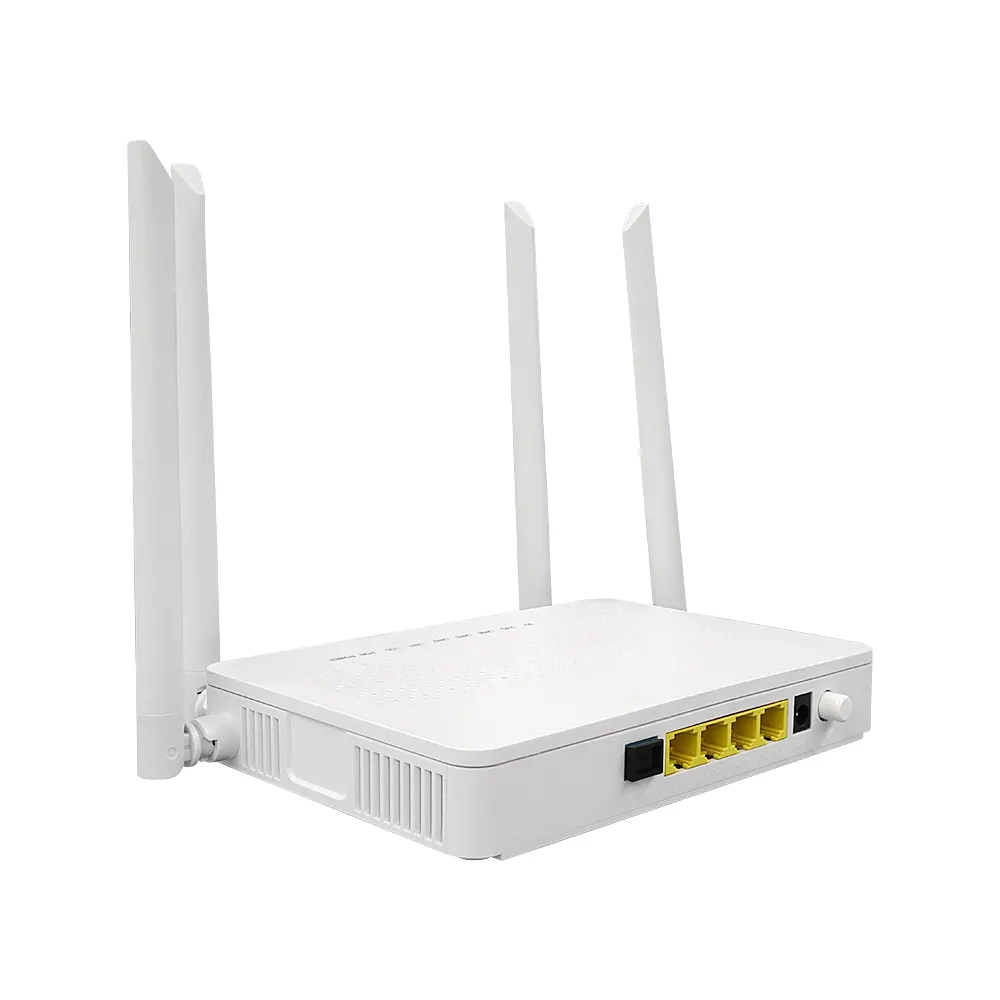

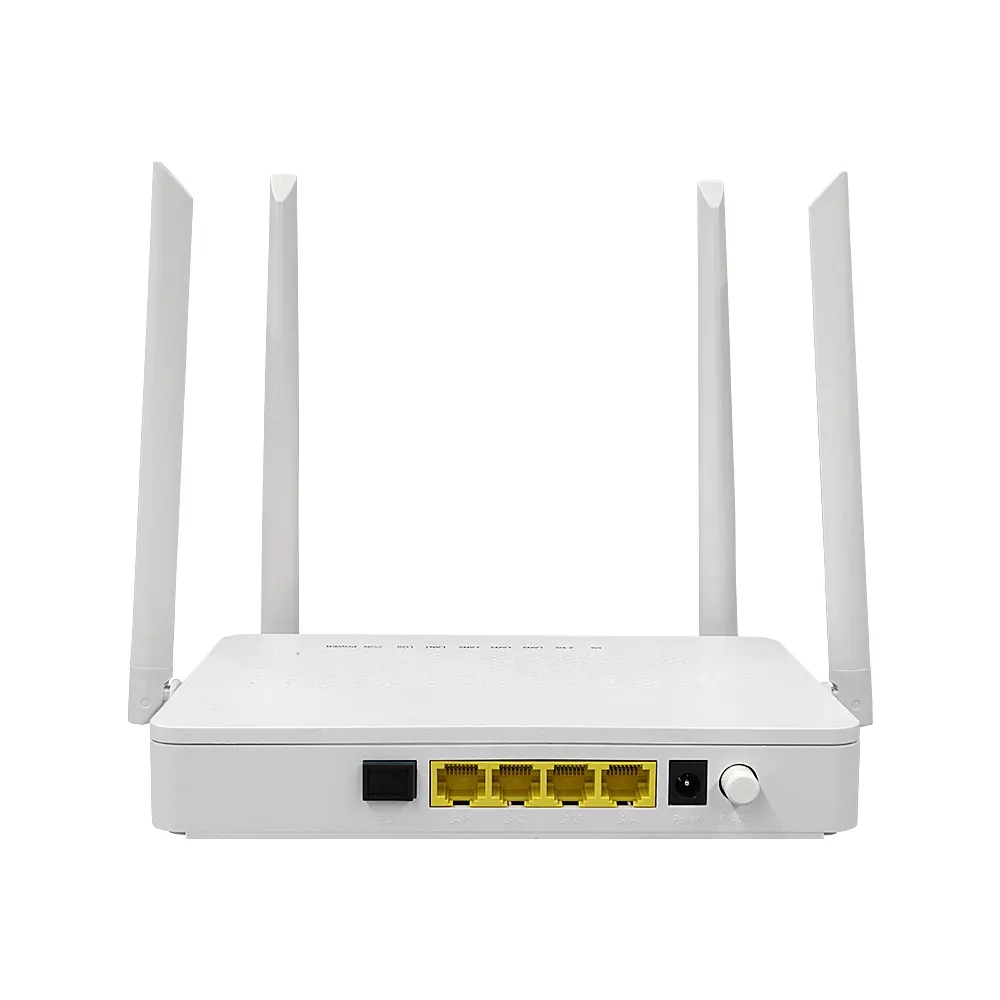

ONT Router Dual Band Wifi5 – High-Performance Networking Solution for FTTH/O Scenarios

Product Overview

The ONT Router Dual Band Wifi5 is a state-of-the-art networking device designed for multi-service integration in FTTH/O scenarios. It features 4 Gigabit Ethernet ports, dual-band Wifi (2.4G and 5G), and supports both GPON and EPON standards. With advanced features like hardware NAT, multiple WAN configurations, and EasyMesh Wifi, this router is perfect for high-speed internet and seamless connectivity.

Key Features of ONT Router Dual Band Wifi5 X3412A

• Compliance with IEEE 802.3ah (EPON) & ITU-T G.984.x (GPON) standards
• Dual-band Wifi (2.4G and 5G) with Wifi5 support
• 4 Gigabit Ethernet ports for high-speed wired connections
• Supports IPv4 and IPv6 management and transmission
• TR-069 remote configuration and maintenance
• Layer 3 gateway with hardware NAT for fast data transmission
• Multiple WAN configurations with Route/Bridge mode
• Supports Layer 2 802.1Q VLAN, 802.1P QoS, and ACL
• IGMP V2 and MLD proxy/snooping for efficient multicast traffic handling
• DDSN, ALG, DMZ, Firewall, and UPNP services for enhanced security and functionality
• Bi-directional FEC for improved data integrity

Hardware Specifications of ONT Router Dual Band Wifi5 X3412A

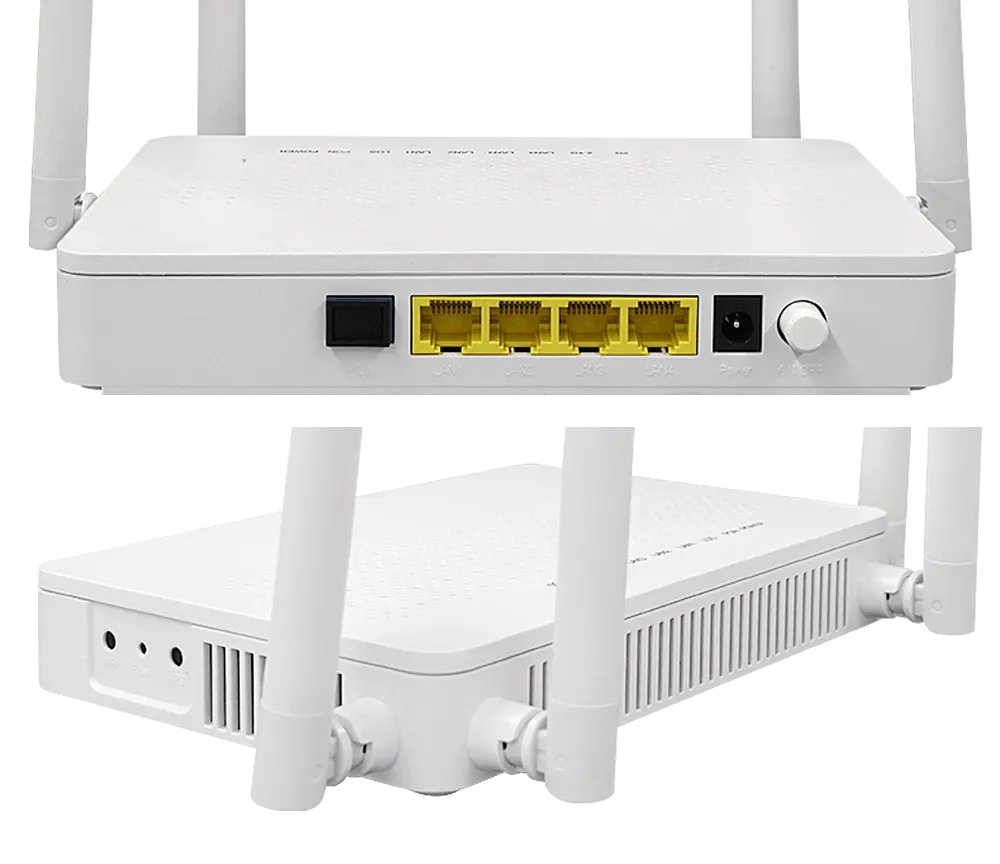

• Interface: 1* G/EPON + 4* GE + 2.4G/5.8G WLAN
• Power Adapter Input: 100V-240V AC, 50Hz-60Hz
• Power Supply: DC 12V/1.5A

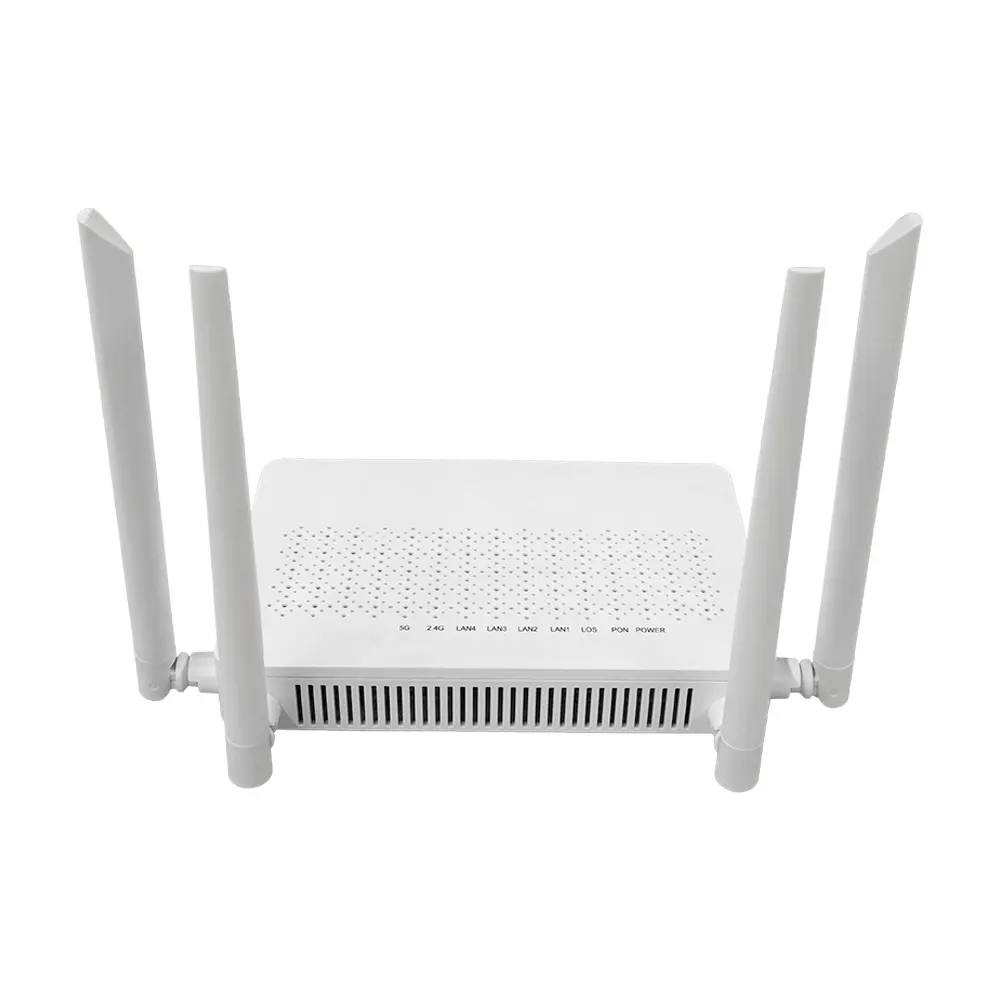

• Indicator Lights: POWER, PON, LOS, LAN1, LAN2, LAN3, LAN4, 2.4G, 5G
• Buttons: Power switch, Reset, WLAN, WPS
• Power Consumption: <18W
• Working Temperature: -20℃～+55℃
• Environment Humidity: 5% ~ 95% (non-condensing)
• Dimensions: 180mm x 122mm x 30mm (Without antenna)
• Net Weight: 0.28Kg

PON Interface

• Interface Type: SC/APC, CLASS B+
• Transmission Distance: 0～20km
• Working Wavelength: Uplink 1310nm; Downlink 1490nm
• RX Optical Power Sensitivity: -27dBm
• Transmission Rate:
  • GPON: Up 1.244Gbps; Down 2.488Gbps
  • EPON: Up 1.244Gbps; Down 1.244Gbps

Wireless Specifications

• Interface Type: External 4*2T2R Antenna
• Antenna Gain: 5dBi
• Maximum Rate:
  • 2.4G WLAN: 300Mbps
  • 5.8G WLAN: 866Mbps
• Working Mode:
  • 2.4G WLAN: 802.11 b/g/n
  • 5.8G WLAN: 802.11 a/n/ac

Ethernet Interface

• Interface Type: 4* RJ45
• Interface Parameters: 10/100/1000BASE-T

Application Scenarios

The ONT Router Dual Band Wifi5 is ideal for FTTH/O scenarios, providing high-speed internet access and seamless connectivity for homes and small businesses. Its advanced features make it suitable for environments requiring robust networking capabilities, including multiple WAN configurations, VLAN support, and high-speed Wifi.
