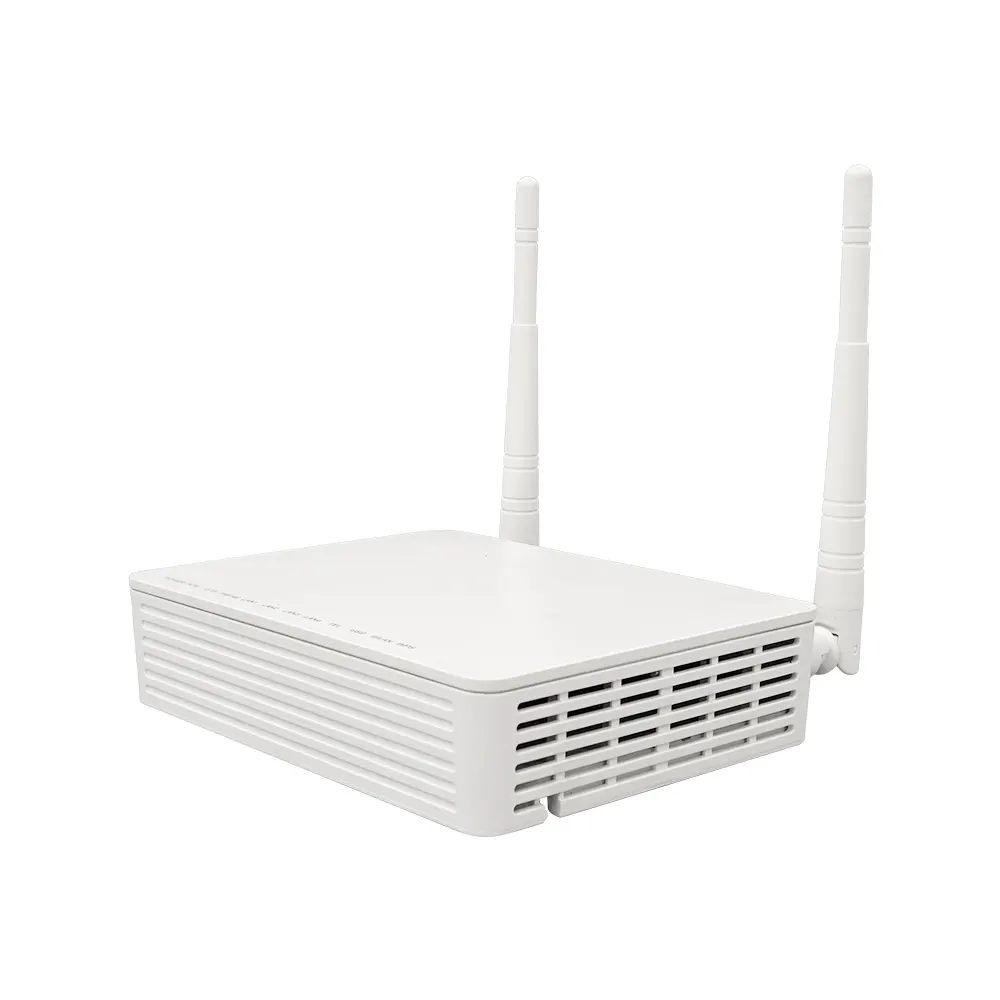

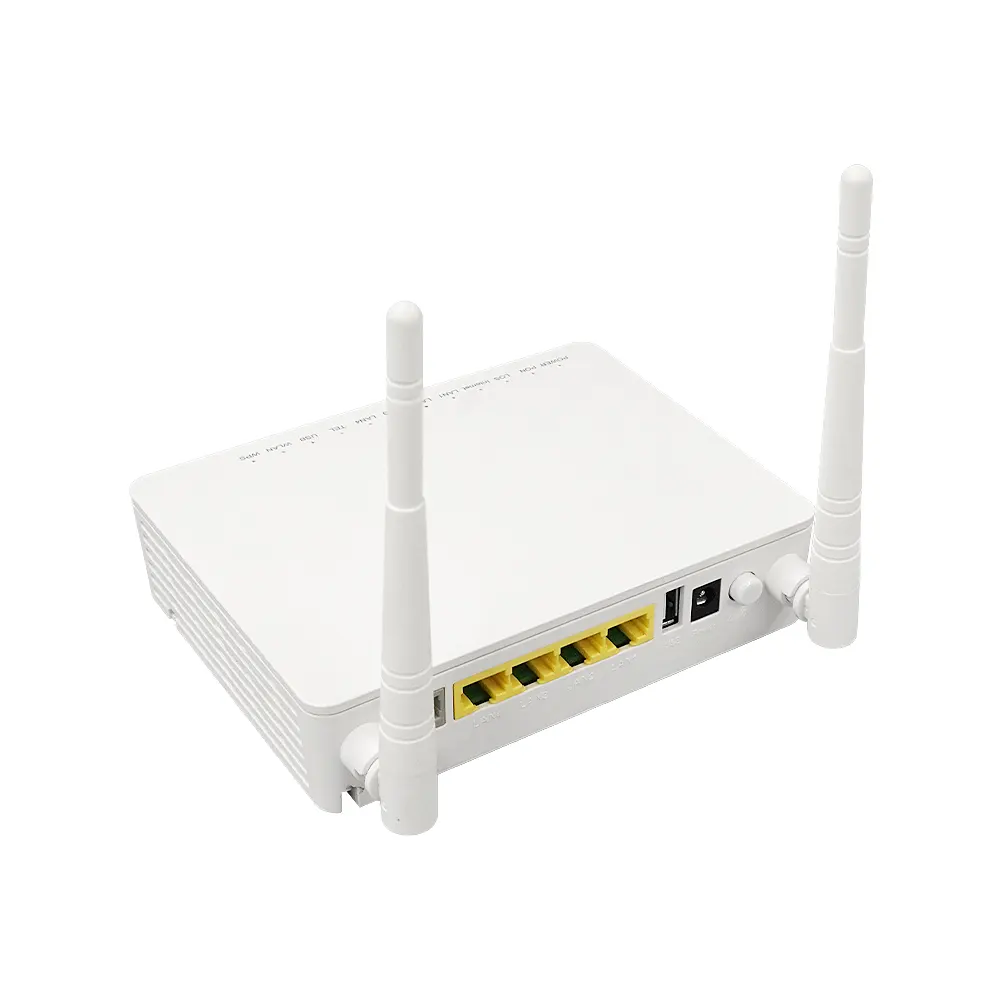

Single Band WiFi ONT Modem – Dual Mode GPON/EPON Fiber Optic Network Terminal
- 1 Gigabit Ethernet port (10/100/1000Mbps).
- 3 100 Gigabit Ethernet ports (10/100Mbps).
- 1 POTS (traditional telephone service) interface with VoIP support.
- 1 USB 2.0 port.
- PON interface: 1 E/GPON port, supports EPON PX20+ and GPON Class B+ standards.
- Wavelength: transmit 1310nm, receive 1490nm.
- Transmission distance: 20 kilometers.
- Power supply: DC 12V, power consumption ≤10W.
Free Quote
Product Introduction
The Single Band WiFi ONT Modem is a high-performance, dual-mode GPON/EPON fiber optic network terminal designed for FTTH (Fiber to the Home), FTTO (Fiber to the Office), and FTTD (Fiber to the Desk) applications. With 4 Ethernet LAN ports (1 Gigabit + 3 Fast Ethernet), VoIP support, USB interface, and 2.4GHz WiFi, this modem offers a cost-effective and versatile solution for high-speed internet access, video surveillance, and SOHO broadband needs.
Special Features of Single Band WiFi ONT Modem X5403
- Dual Mode Support: Compatible with both GPON and EPON networks.
- Plug and Play: Auto-detecting, auto-configuration, and auto firmware upgrade.
- Advanced Networking: Supports NAT, Firewall, IPv4/IPv6 dual stack, QinQ VLAN, and IGMP Snooping.
- Integrated OAM: Remote configuration and maintenance for easy management.
- 2.4GHz WiFi: Compliant with IEEE 802.11b/g/n, supports MIMO with up to 300Mbps speed.
- VoIP Support: 1 FXS RJ11 port with G.711/G.723/G.726/G.729 codec and fax mode support.
- USB 2.0 Interface: For additional connectivity options.
Technical Specifications OF Single Band WiFi ONT Modem
| Feature | Details |
|---|---|
| PON Interface | 1 E/GPON port (EPON PX20+ and GPON Class B+), Wavelength: Tx1310nm, Rx1490nm, SC/UPC connector |
| LAN Interface | 1 x 10/100/1000Mbps + 3 x 10/100Mbps auto-adaptive Ethernet ports |
| Wireless | IEEE 802.11b/g/n, 2.4GHz, MIMO, 2T2R, 2 external antennas (5dBi), up to 300Mbps |
| POTS Interface | 1 FXS RJ11 port, supports G.711/G.723/G.726/G.729 codec, T.30/T.38 fax mode |
| USB Interface | USB 2.0 |

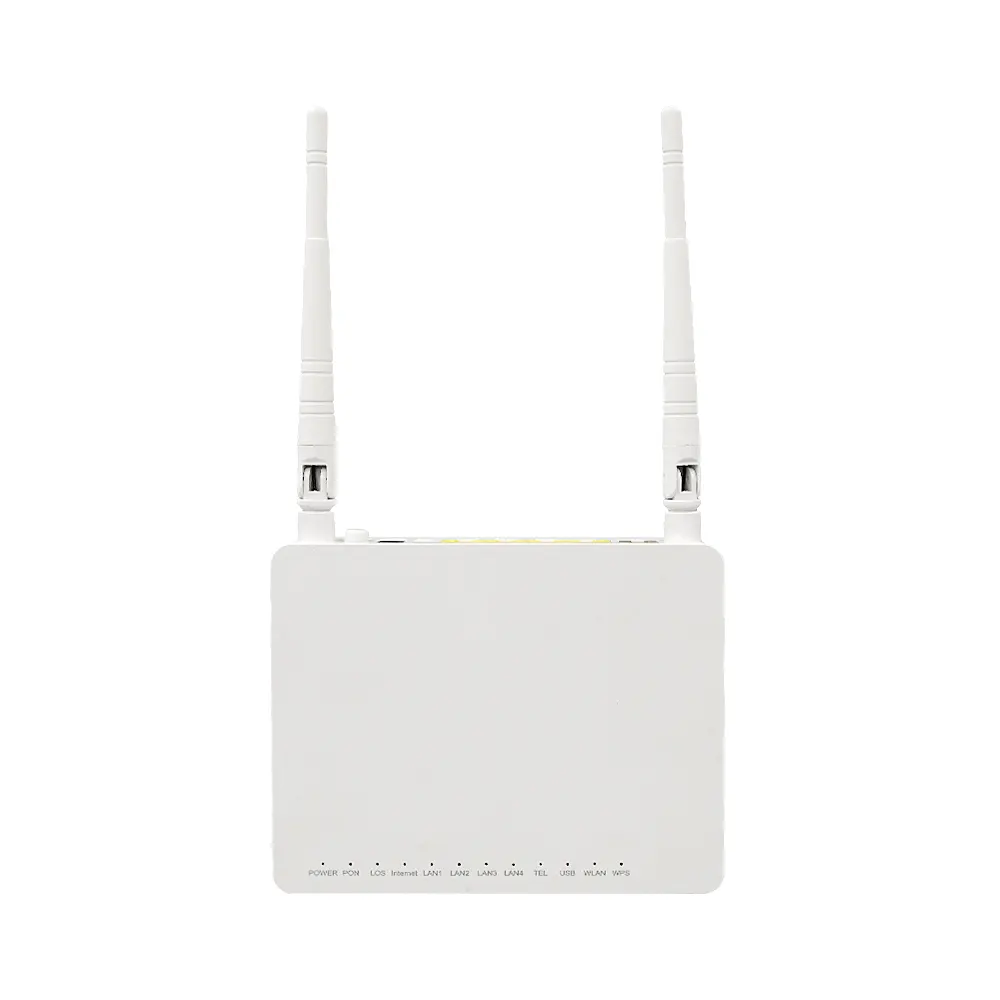

| LED Indicators | 13 LEDs for PWR, PON, LOS, WAN, WiFi, FXS, ETH1-4, WPS, USB |
| Operating Conditions | Temperature: 0°C to +50°C, Humidity: 5% to 90% (non-condensing) |
| Power Supply | DC 12V, 1/1.5A, Power Consumption: ≤10W |
| Dimensions | 150mm x 140mm x 35mm (L x W x H) |
| Weight | 0.24kg |
Applications
The Single Band WiFi ONT Modem is ideal for:
- FTTH (Fiber to the Home): Provides high-speed internet access for residential users.
- FTTO (Fiber to the Office): Ensures reliable connectivity for small to medium-sized offices.
- FTTD (Fiber to the Desk): Delivers high-performance networking for individual workstations.
- SOHO (Small Office/Home Office): Perfect for small businesses and home offices requiring robust internet and VoIP services.
- Video Surveillance: Supports high-bandwidth applications like IP cameras and video streaming.
