Single Port EPON ONU – Compact and High-Performance Fiber Optic Network Terminal
- Type: GPON or EPon Single-mode
- Pon interface type: SC-UPC/SC-APC
- Network coverage radius: 20KM
- Uplink rate: 1.25Gbps
- Downlink rate: 2.5Gbps
- Dimensions: 105mm (Length) x 85mm (Width) x 25mm (High)
- Input: 12V/0.5A DC
- Power consumption: <3W
Free Quote
Product Overview

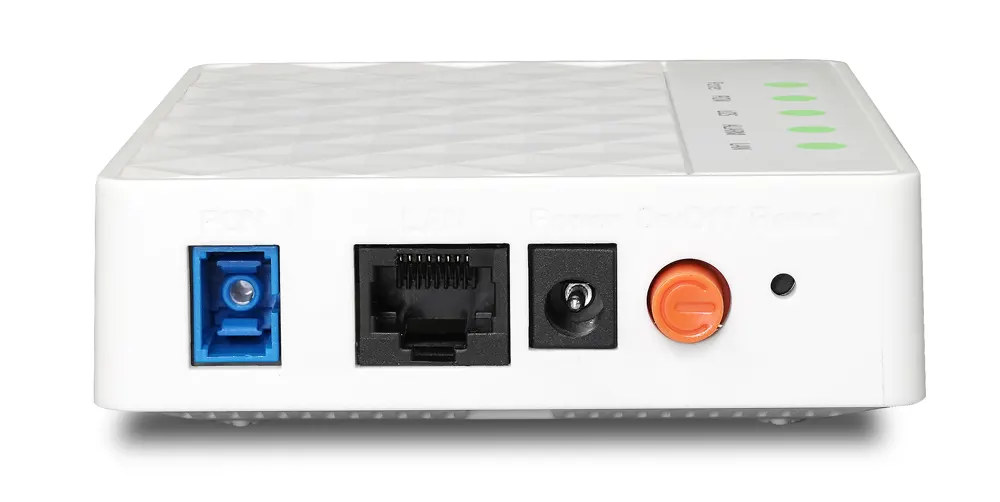

The Single Port EPON ONU F601S Micro Mini ONU ONT HGU is a passive optical network terminal developed by Hosecom. It features built-in Layer 2 switching and Layer 3 home gateway routing functions. This compact, high-performance, and low-power FTTH optical network unit supports GPON mode, making it ideal for operators and ISPs in FTTH networking.
Key Features of Single Port EPON ONU
- Supports port-based rate limitation and bandwidth control
- Compliant with IEEE802.3ah & ITU-T G.984 adaptive interface
- Up to 20KM transmission distance
- Supports data encryption, group broadcasting, and port VLAN separation
- Dynamic Bandwidth Allocation (DBA) support
- ONU auto-discovery, link detection, and remote software upgrade
- Power-off alarm function for easy link problem detection
- Broadcasting storm resistance and port loop detection
- ACL support for flexible data packet filtering
- PPPoE, DHCP Server, IPTV, and NAT support
- System breakdown prevention for stable operation
- Software online upgrading
- MAC/Port/URL filter support
Specifications of Single Port EPON ONU
| PON Interface | GPON, SC-UPC/SC-APC, 20KM coverage, 1.25Gbps upstream, 2.5Gbps downstream |
|---|---|
| Ethernet Interface | 1x 10/100/1000M auto-negotiation, RJ45, 100m distance |
| Dimensions | 105mm(L) x 85mm(W) x 25mm(H) |
| Environment | Operating temperature: 0℃~60℃, Operating humidity: 10%~85% (non-condensing) |
| Power Supply | 12V/0.5A DC, <3W power consumption |
| Management | Web, TELNET, TR069, OAM, OMCI |
Why Choose F601S?
The F601S Single Port ONU is an entry-level fiber optic network terminal that offers high performance at a low cost. Its compact design and advanced features make it perfect for FTTH solutions, providing reliable and efficient network connectivity for both operators and end-users.
