4GE AC1200 XPON CATV ONU – High-Performance Wifi Fiber ONT Modem with CATV Support
- 4 x GE LAN
- 1 x SC/APC XPON port
- 1 x WLAN (Dual band 802.11AC)
- 2 x USB 2.0
- 1 x CATV
- Transmission distance: Maximum 20Km
- Uplink: 1.25Gbps
- Downstream: 2.5Gbps
- Wireless standard: IEEE802.11a/n/ac, 5GHz 867Mbps, IEEE802.11b/g/n, 2.4GHz 300Mbps
- Operating frequency: 2.4GHz and 5GHz
- Buttons: Power switch, WPS button, WLAN button, Reset button
- Power supply: DC 12V 1.5A
- Antenna: 2 x 2.4GHz/5GHz 5dBi dual-band external antenna
- Size: 205mm x 135mm x 37mm
Free Quote
Product Overview

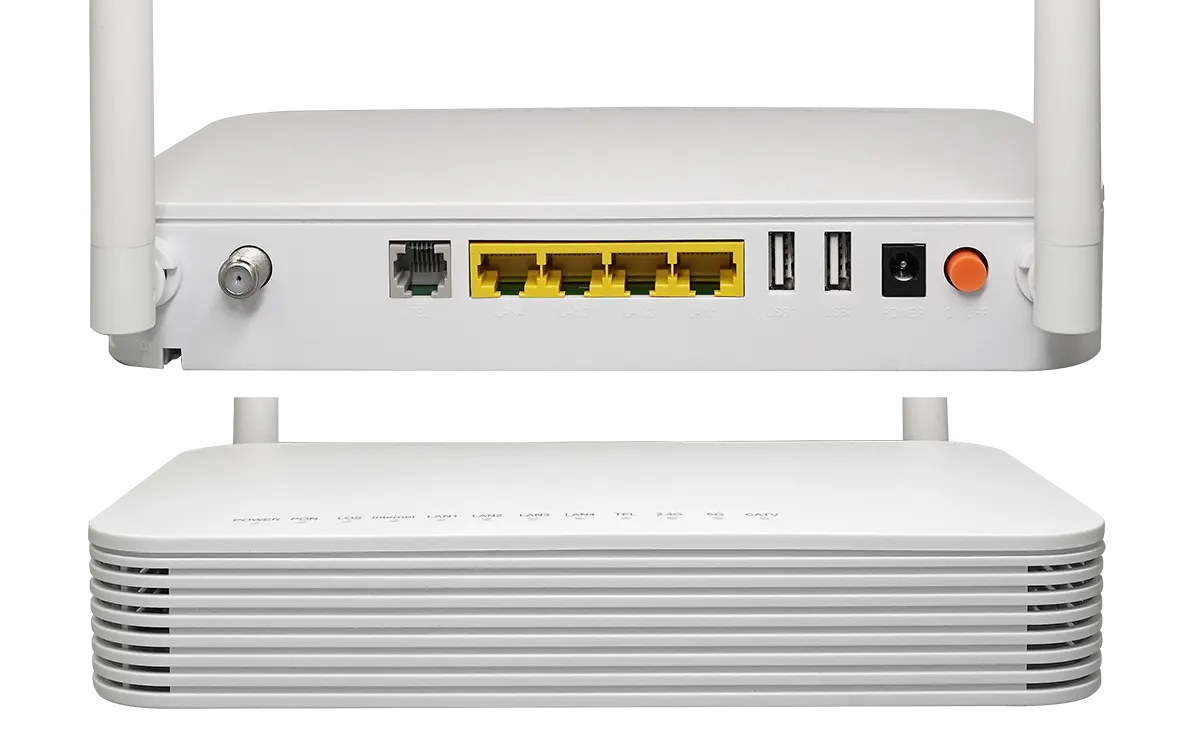

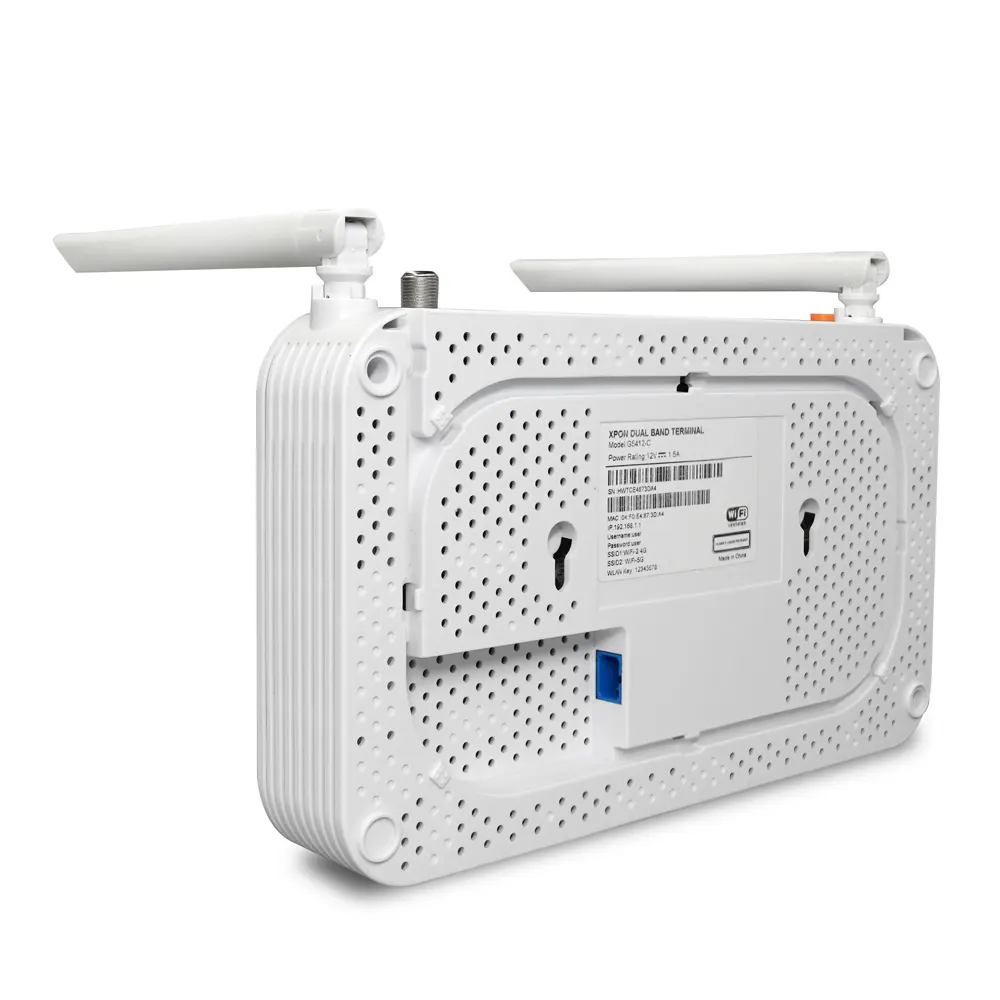

The G5412C Wifi Fiber ONT Modem with CATV is a state-of-the-art CATV ONT Modem designed to deliver high-speed internet and CATV services. With dual-band WiFi, gigabit Ethernet ports, and advanced VoIP features, this device is perfect for both home and office use.
This product provides two USB 2.0 interfaces, it adopts 4 Gigabit Ethernet ports, 1 VoIP port, and 1 CATV interface. G5412C adopts dual-band AC1200 Wifi solution, providing a maximum wifi connection speed of 1200Mbps. G5412C can adapt to mainstream brands of OLT equipment on the market.
Key Features of Wifi Fiber ONT Modem with CATV
- Supports 802.11ac, compatible with 802.11 b/g/n/ac products
- Dual-band WiFi for combined wireless speeds of up to 1200Mbps
- Supports client-side CATV interface functions
- Downstream 2.5Gbps and upstream 1.25Gbps with transmission distance up to 20Km
- Supports OMCI (ONT Management Control Interface) remote management
- Easy Setup Assistant for quick and hassle-free installation
Specifications of Wifi Fiber ONT Modem with CATV
| Category | Details |
|---|---|
| Device Model | G5412C |
| CPU Chipset | ZTE ZX279128S |
| WiFi Chipset | 2.4GHz: MTK MT7603EN, 5GHz: MTK MT7613AEN |
| RAM | 512MB |
| FLASH | 256MB |
| Data Rates | Upstream: 1.25Gbps, Downstream: 2.5Gbps |
| Wireless Standards | IEEE802.11a/n/ac, IEEE802.11b/g/n |
| Operation Frequency | 2.4GHz and 5GHz |
| Wireless Security | WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| VOIP Standards | SIP ITU-T G.729/G.722/G.711a/G.711 |
| CATV Interface | 1 x CATV interface |
| Power Supply | DC 12V 1.5A |
| Dimensions | 205mm x 135mm x 37mm |
Package Contents
- 1 x XPON ONU
- 1 x Power Adapter
