Wifi ONU Dualband XPon – High-Performance Modem for GPON/EPON Networks
- Interfaces: 1* G/EPON + 4* GE + 2* FXS + USB
- Power Adapter Input: 100V-240V AC, 50Hz-60Hz
- Power Supply: DC 12V/1.5A

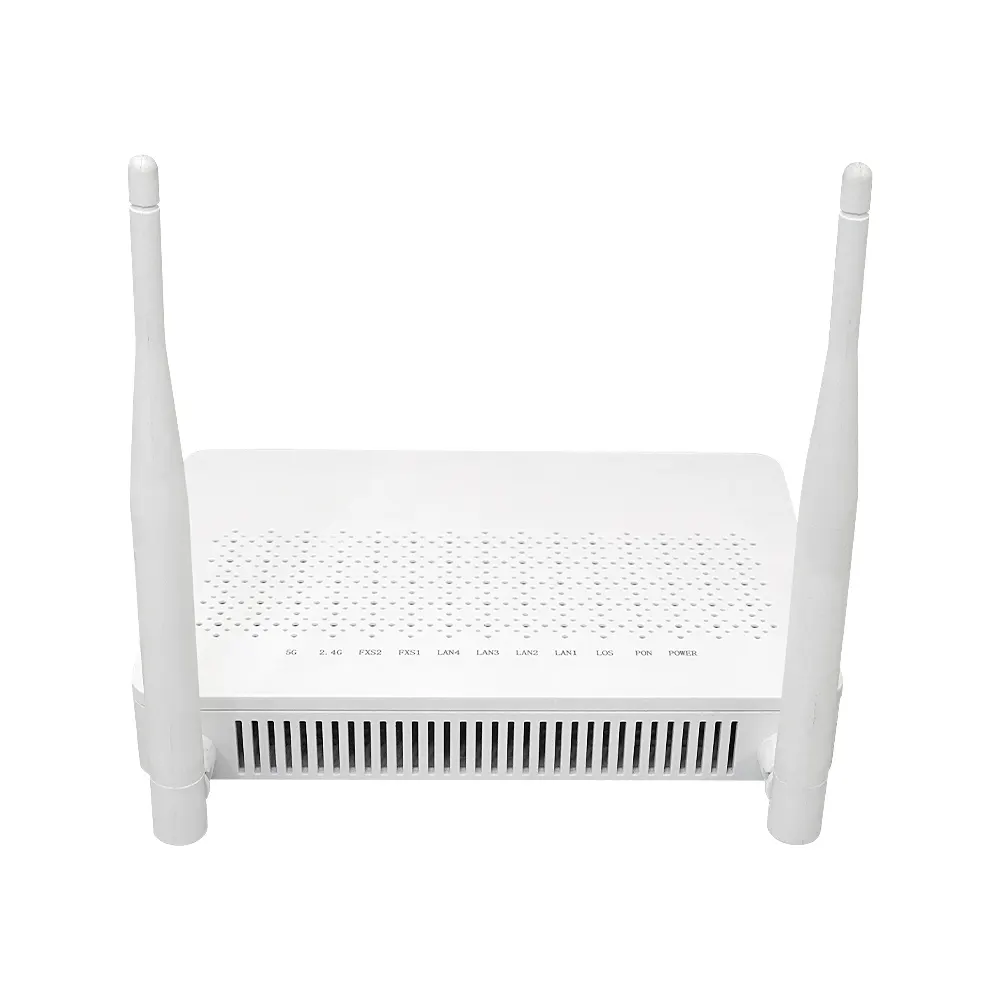

- Indicators: POWER/PON/LOS/LAN1/LAN2/LAN3/LAN4/FXS1/FXS2/2.4G/5G
- Buttons: Power On/Off Button, Reset Button, WLAN Button, WPS Button
- Power Consumption: <18W
- Operating Temperature: -20°C ~ +50°C
- Ambient Humidity: 5% ~ 95% (non-condensing)
- Dimensions: 180mm x 122mm x 30mm (without antenna)
- Net Weight: 0.25Kg
- Interface Type: SC/APC, CLASS B+
- Transmission Distance: 0-20km
- Operating Wavelength: Uplink 1310nm; Downlink 1490nm
Free Quote
Product Overview
The Wifi ONU Dualband XPon is a state-of-the-art modem designed for multi-service integration networks. It is equipped with 4 Gigabit Ethernet ports, 2 POTS ports for VoIP, and dual-band Wifi (2.4G and 5G). This device is ideal for FTTH/O scenarios, offering seamless connectivity and high-speed internet access.
Key Features of Wifi ONU Dualband XPon
- Compliance with IEEE 802.3ah (EPON) & ITU-T G.984.x (GPON) standards
- Dual-band Wifi (2.4G and 5G) with support for multiple SSIDs
- Support for IPv4 and IPv6 management and transmission
- TR-069 remote configuration and maintenance
- Layer 3 gateway with hardware NAT
- Multiple WAN configurations with Route/Bridge mode
- Layer 2 802.1Q VLAN, 802.1P QoS, and ACL support
- IGMP V2 and MLD proxy/snooping
- DDSN, ALG, DMZ, Firewall, and UPNP services
- Bi-directional FEC support
Hardware Specifications of Wifi ONU Dualband XPon

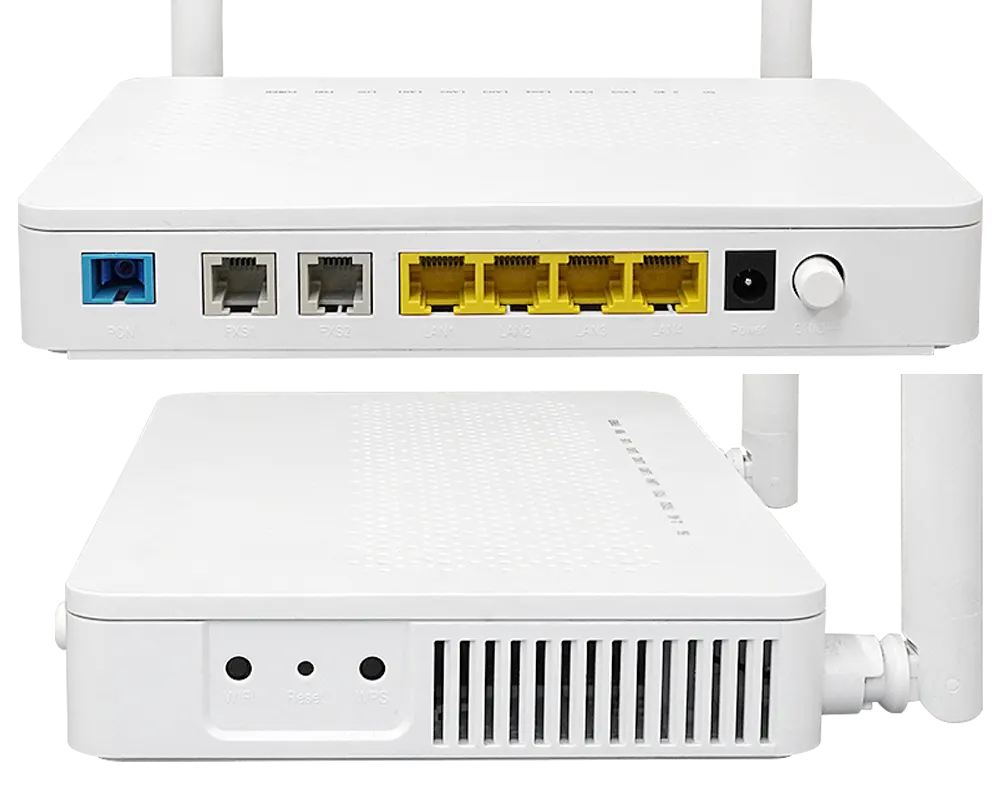

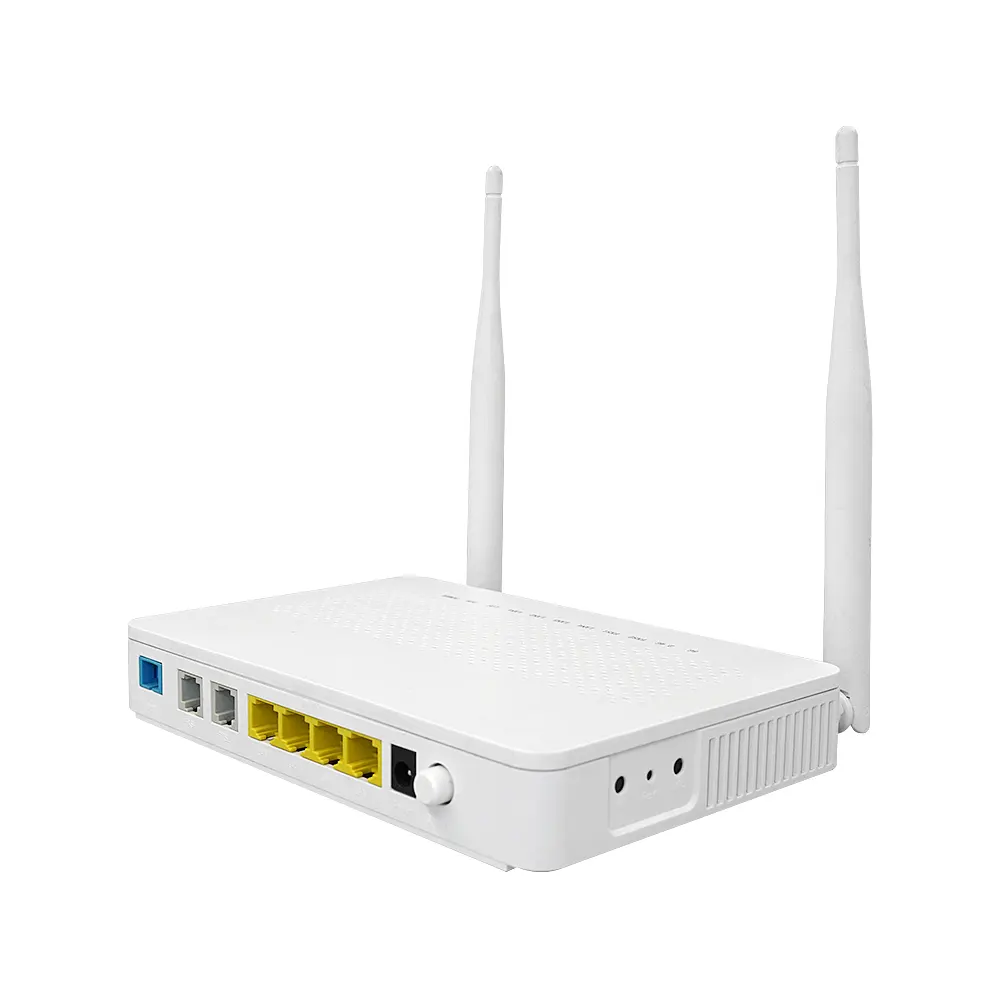

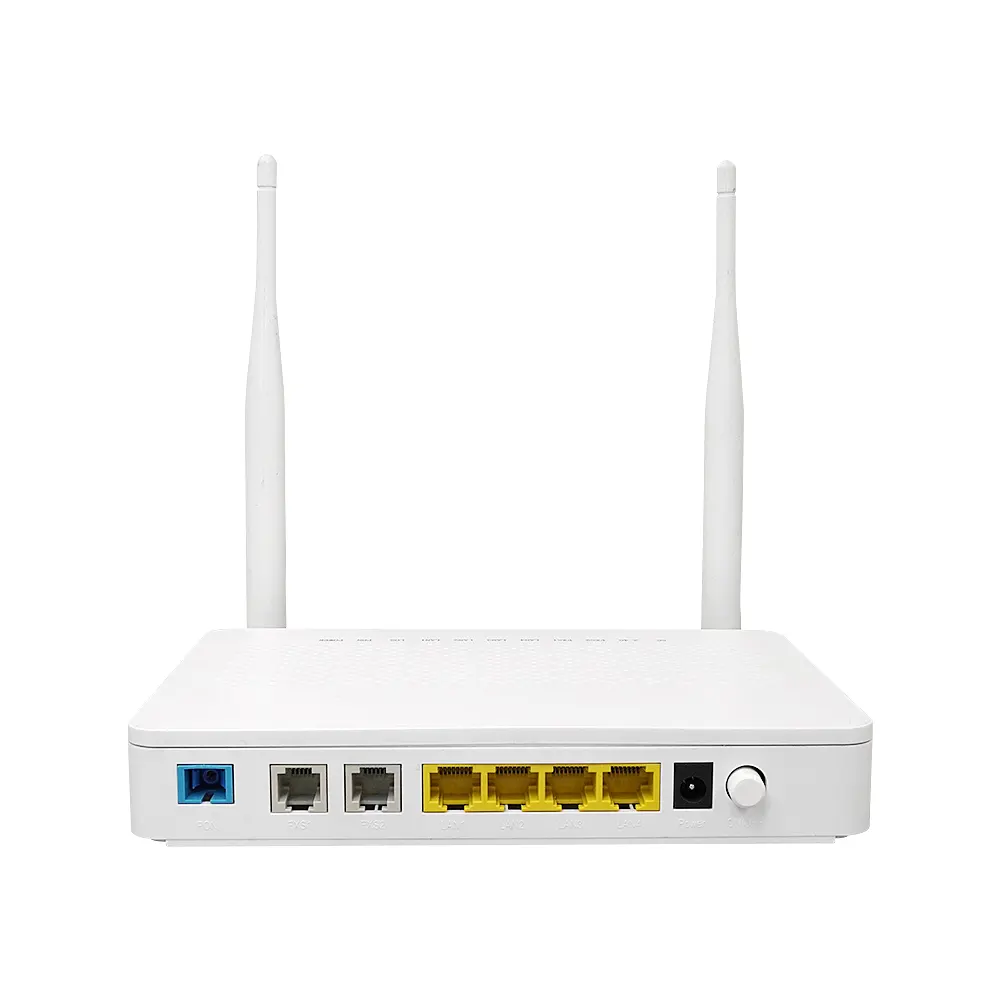

- Interface: 1* G/EPON + 4* GE + 2* FXS + USB
- Power Adapter Input: 100V-240V AC, 50Hz-60Hz
- Power Supply: DC 12V/1.5A

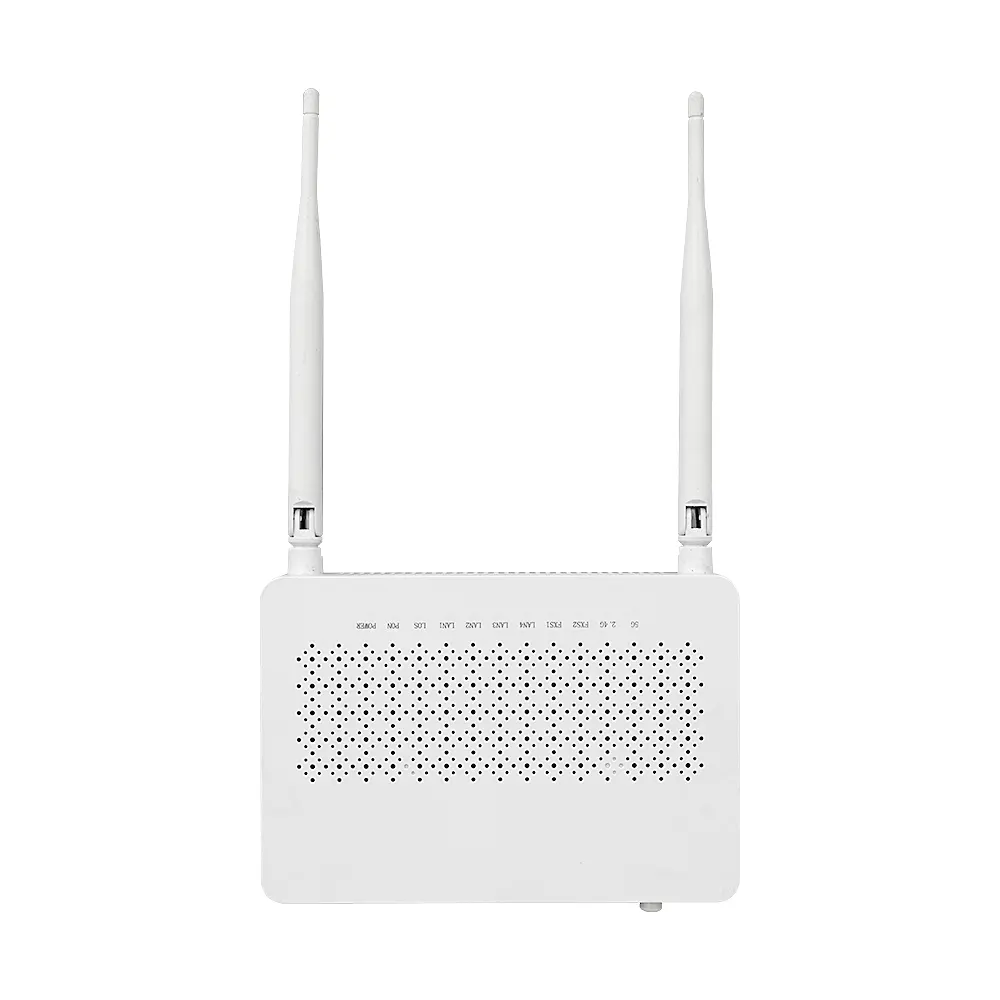

- Indicator Lights: POWER/PON/LOS/LAN1/LAN2/LAN3/LAN4/FXS1/FXS2/2.4G/5G
- Buttons: Power switch, Reset, WLAN, WPS
- Power Consumption: <18W
- Working Temperature: -20℃～+50℃
- Environment Humidity: 5% ~ 95% (non-condensing)
- Dimensions: 180mm x 122mm x 30mm (without antenna)
- Net Weight: 0.25Kg
PON Interface
- Interface Type: SC/APC, CLASS B+
- Transmission Distance: 0～20km
- Working Wavelength: Up 1310nm; Down 1490nm
- RX Optical Power Sensitivity: -27dBm
- Transmission Rate:
- GPON: Up 1.244Gbps; Down 2.488Gbps
- EPON: Up 1.244Gbps; Down 1.244Gbps
Wireless Specifications
- Interface Type: External 2*2T2R External Antenna
- Antenna Gain: 5dBi
- Maximum Interface Rate:
- 2.4G WLAN: 300Mbps
- 5.8G WLAN: 866Mbps
- Interface Working Mode:
- 2.4G WLAN: 802.11 b/g/n
- 5.8G WLAN: 802.11 a/n/ac
POTS Interface
- Interface Type: 2*FXS, RJ11 connector
- Supported Codec: G.711
Ethernet Interface
- Interface Type: 4* RJ45
- Interface Parameters: 10/100/1000BASE-T
