XGSPON Fiber Modem ONT Router – High-speed 10Gbps symmetrical fiber terminal
- Transmission rate: downlink and uplink symmetric 10Gbps

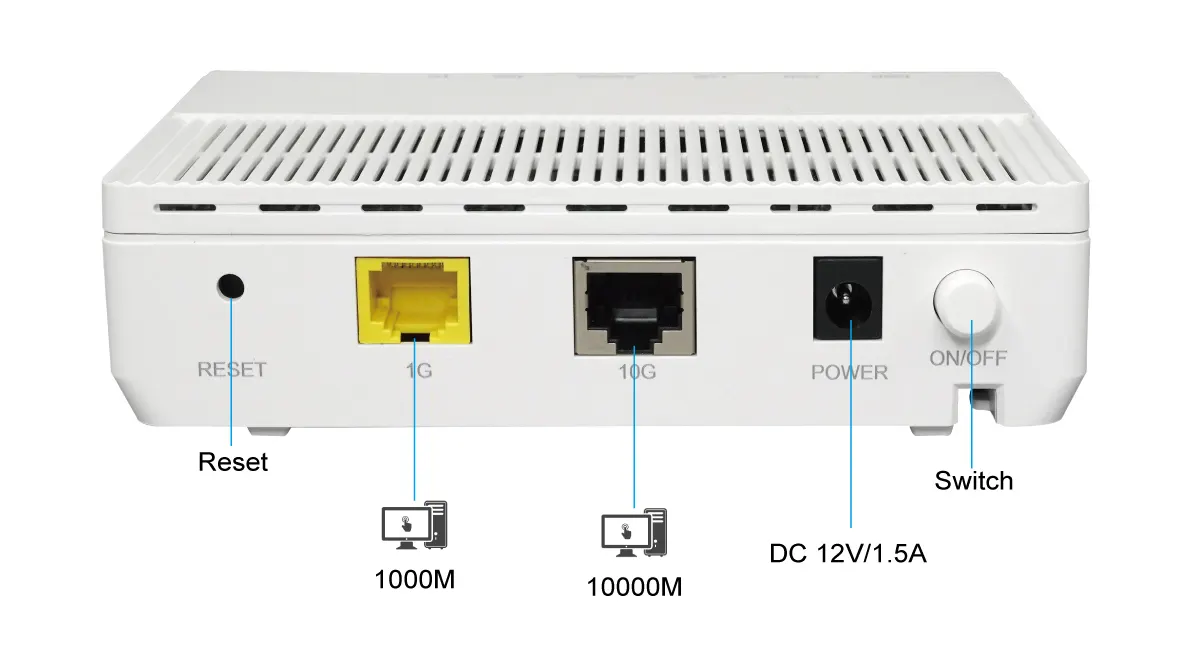

- 1 x 10Gbps RJ45 interface
- 1 1Gbps RJ45 interface
- Flash memory: 128MB NAND</li&gt;</li>
- Memory: 256MB D
- DR4
- LED indicator: Power supply + PON + LOS + 10GE + 1GE
- Button: On/Off, Reset
- Operating temperature: 0°C ~ 45°C
- Storage temperature: -20°C ~ 70°C
- Relative humidity: 5% ~ 95%, non-condensing
- Weight: 0.6 kg
- Size: 27 × 25 × 4 cm
- Power supply: DC 12V/1A
Free Quote
Product Overview
The XGSPON Fiber Modem ONT Router XGS1200 is a high-performance XGS-PON ONU router designed for enterprise campuses and video backhaul scenarios. It has one 1GE Ethernet interface and one 10GE 10 Gigabit Ethernet interface. It offers symmetrical 10Gbps downstream and upstream transmission rates, ensuring high-quality voice, data, and HD video services.
Key Features of XGSPON Fiber Modem ONT Router
- 10Gbps Symmetrical Speed: Both downstream and upstream speeds of 10Gbps for high-speed data transfer.
- Dual Ethernet Ports: One 10Gbps and one 1Gbps RJ45 interface for versatile connectivity.
- Advanced QoS: Supports 8 queues with strict priority, ensuring optimal traffic management.
- Robust Management: OMCI, Web UI, TR069, and SSH management with CLI commands for easy configuration and monitoring.
- High Reliability: Dual-system software backup and rollback for uninterrupted service.
Technical Specifications of XGSPON Fiber Modem ONT Router
| Parameter | Value |
|---|---|
| Model | XGS1200 |
| Transmission Rate | 10Gbps Downstream & Upstream |
| Ethernet Ports | 1 x 10Gbps, 1 x 1Gbps |
| CPU | 1GHz Dual-Core |
| Memory | 256MB DDR4 |
| Flash | 128MB NAND |
| Operating Temperature | 0°C ~ 45°C |
| Dimensions | 27 × 25 × 4 cm |
| Weight | 0.6 kg |
| Power Supply | DC 12V/1A |
Layer 2 Features:
MAC learning (SVL)/aging
Support max frame length to1518 bytes
VLAN tagging for untagged packets
Support VLAN 1-4094
VLAN transparent/translation
QoS:
Support 8 Queues with Strict Priority
Ethernet port rate limitation
802.1ppriority
SP/WRR/SP+WRR
Service flow classification
Multicast:
IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376)
IGMP snooping and lGMP Proxy
MLD v1/2
Management:
OMCI/Web U//TRO69
SSH management with CLl commands
Dual-system software backup and rollback
Applications
The XGS1200 is ideal for:
- Enterprise Campuses
- Video Backhaul
- High-Speed Internet Access
- HD Video Streaming
