XPon Dualband Wifi5 ONT Router – 4GE Fiber Modem Terminal
- 1* G/EPON interface: SC/UPC/APC interface,
- 4* Ethernet interface: 10 MBPS/100 MBPS, 1000 MBPS, RJ- 45, IEEE802.3-2005 standard
- 1* VOlP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
- 1*CATV, C/N:≥43dB,C/CTB:≥55B,C/CSO>55dB, MER≥32dB, BER≤1*10E-6
- 1* USB interface: standard USB 2.0 interface
- Dual-band WIFI5 AC1200 (2 x2 MIMO (2.4G&5G))
Free Quote
Product Overview
The XPon Dualband Wifi5 ONT Router G1412C is a highly integrated GPon and EPon dual-mode adaptive optical terminal unit with dual-frequency Wi-Fi 5 AC1200. It supports ultra-bandwidth access through GEPon upstream technology and provides users with basic WiFi function, routing, and gigabit Ethernet function. The upstream network ports of the G1412C are GEPon ports. It has 4 GE RJ45 ports, 1 USB port, 1 VoIP port, and a WiFi 5 WLAN port. It also features a CATV interface to provide client TV access.
Specifications of XPon Dualband Wifi5 ONT Router

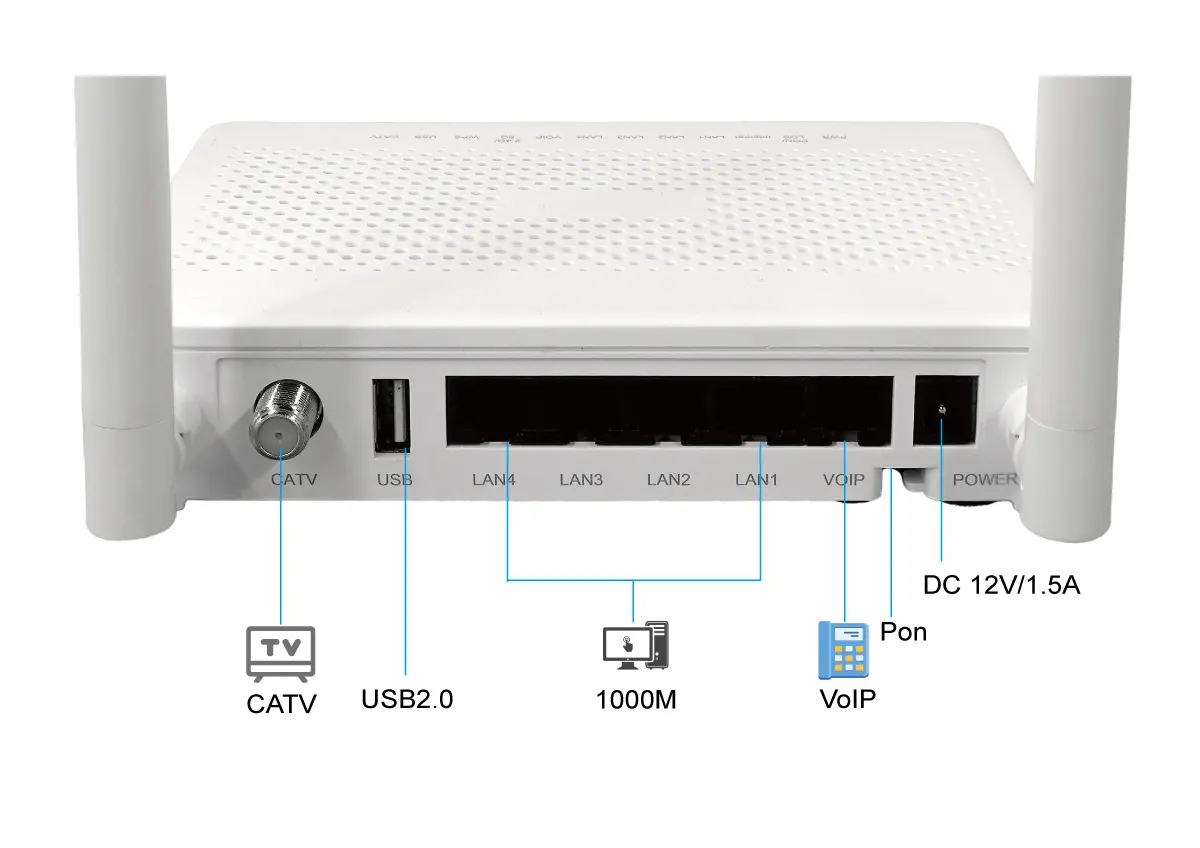

- Ports: 4x RJ45(GE), 1x RJ11(POTS), 1x Reset, 1x Power, 1x LED, 1x WiFi, 1x WPS, 1x SC/UPC (or SC/APC), 1x POTS, 1x DC, 1x CATV, 1x USB 2.0
- Size: 190mm x 135mm x 33mm (L x W x H)
- Power Consumption: ≤8W

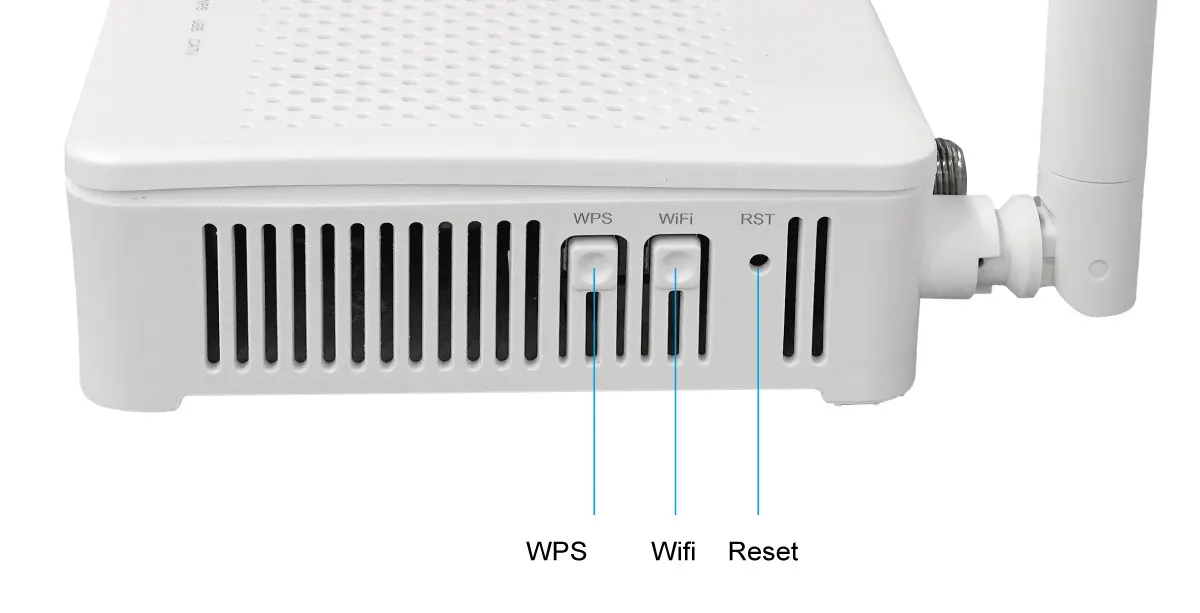

- LED Indicators: POWER, PON/LOS, NET, LAN, POTS, WiFi, WPS, USB
- G/EPON Port: GPON Class B+, EPON PX20+, Upstream 1.25Gbps, Downstream 2.48Gbps (GPON), Downstream 1.25Gbps (EPON)
- Ethernet Port: 10/100/1000Mbps Autonegotiation, VLAN tagging, MAC address learning
- VoIP Port: Call waiting, Call Forwarding, Three-party calls, G711A/G711U/G729/G722, SDP protocol, T.30/T.38/G.711 fax mode
- WiFi5: 2.4GHz 802.11b/g/n, 5GHz 802.11a/n/ac, Dual-antenna MIMO, WPS, WPA-PSK, WPA2-PSK, WPA3, AES, AES+TKIP, 2.4G 300Mbps, 5G 867Mbps
- CATV: Remote control, Optical AGC -10~+2dBm, Output level 76dBuV, RF bandwidth 47-1000 MHz, In-band flatness +1.25dB, Output return loss >12dB, C/N>43dB, C/CTB≥55dB, C/CSO>55dB, MER≥32dB, BER≤1*10E-6
- Operating Temperature: 0℃~45℃
- Storage Temperature: -20℃~70℃
- Operating Humidity: 5%~95% (non-condensing)
- Power Supply: 12V/1.5A
Key Features of XPon Dualband Wifi5 ONT Router
- Dual-mode GPon and EPon support
- Dual-band Wi-Fi 5 AC1200 with MIMO technology
- 4 Gigabit Ethernet ports for high-speed connectivity
- VoIP support for advanced telephony features
- CATV interface for TV access
- USB 2.0 port for additional connectivity
- Advanced QoS and VLAN support
- IPv6/IPv4 dual-stack support
- Comprehensive management options including OMCI, Web UI, and TR069
Applications
The G1412C XPon Dualband Wifi5 ONT Router is ideal for:
- Residential broadband access
- Small and medium-sized business networks
- VoIP telephony services
- IPTV and CATV services
- High-speed internet access with advanced WiFi capabilities
