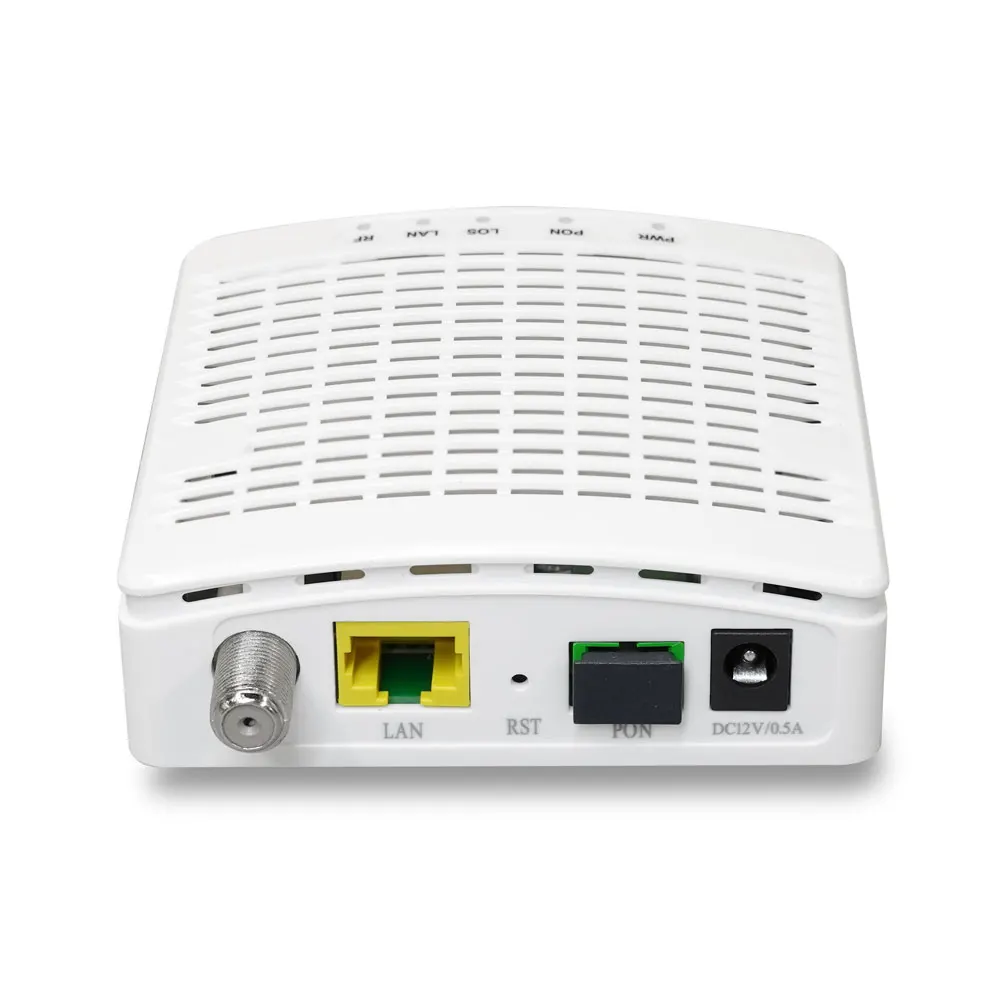

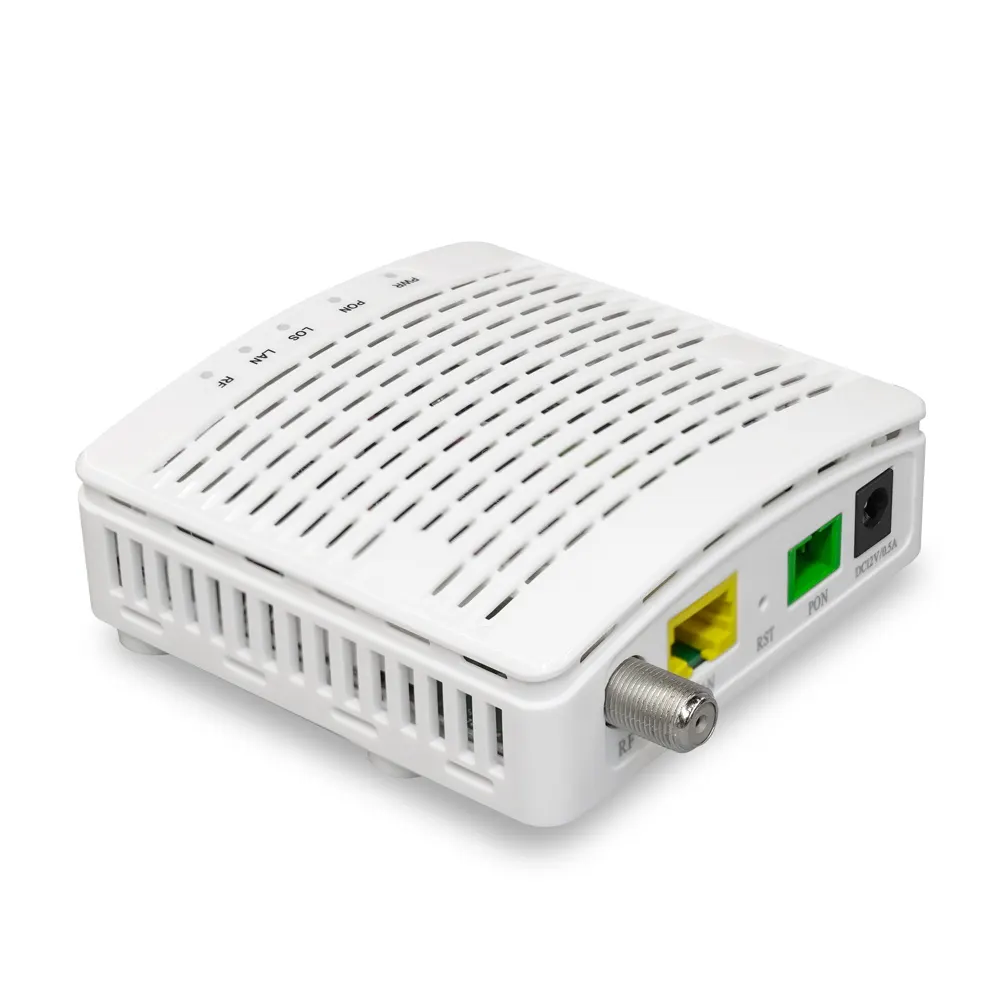

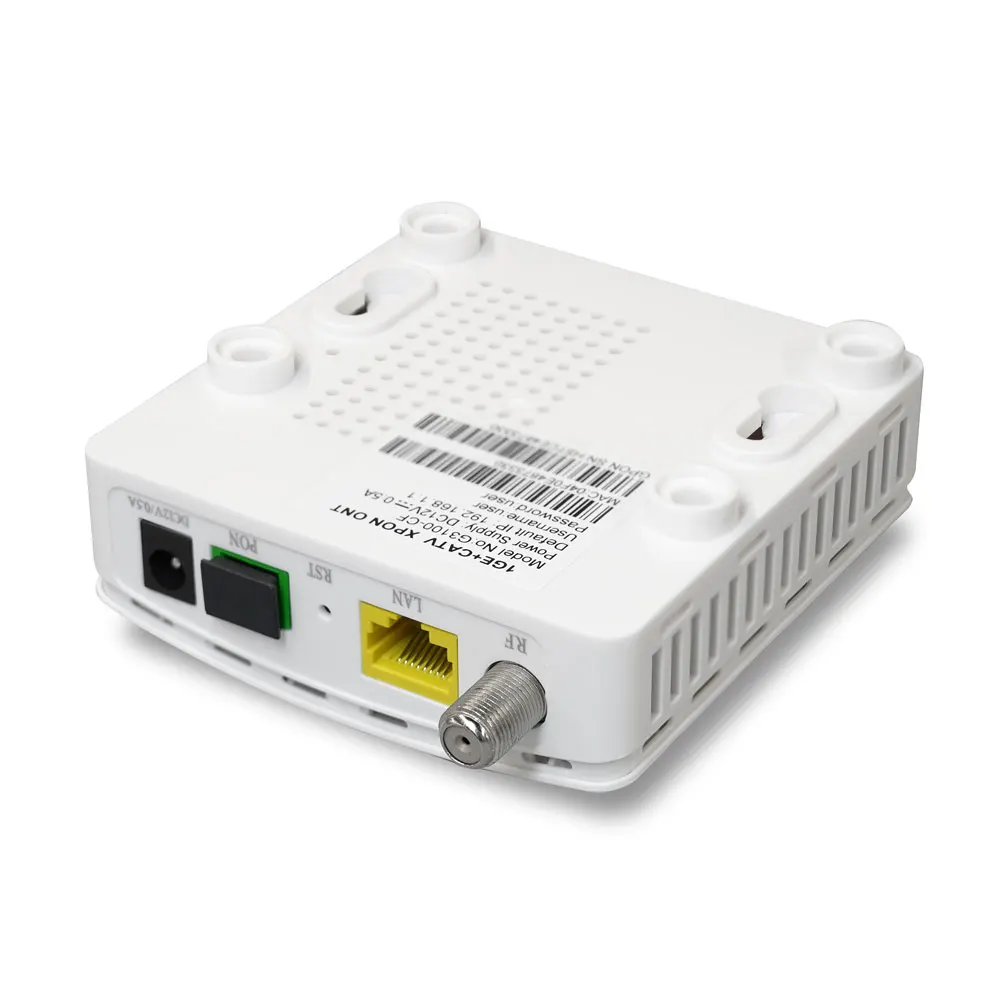

XPON Micro ONU 1GE CATV | Residential Gateway for FTTH and FTTB Applications
PON Interface: GPON (ITU-T G.984.x) / EPON (IEEE 802.3ah)
Wavelength: Uplink 1310nm, Downlink 1490nm
Transmission speed GPON: 1.244Gbps uplink, 2.488Gbps downlink
Transmission speed EPON: uplink/downlink 1.244Gbps
Transmission distance: up to 20 kilometers
LAN port: 1 Gigabit Ethernet (1GE)
Features: Auto-negotiation, VLAN support
CATV Interface: Wavelength range: 1150 ~ 1600nm
RF Output Level: ≥80 dBμV
Input Voltage: 110V~255V AC
Output Voltage: DC 12V/1A
Temperature: -10°C ~ 45°C
Humidity: 5% ~ 95% (non-condensing)
Routing Function: NAT, QoS, Firewall
Remote Management: TR-069, OMCI

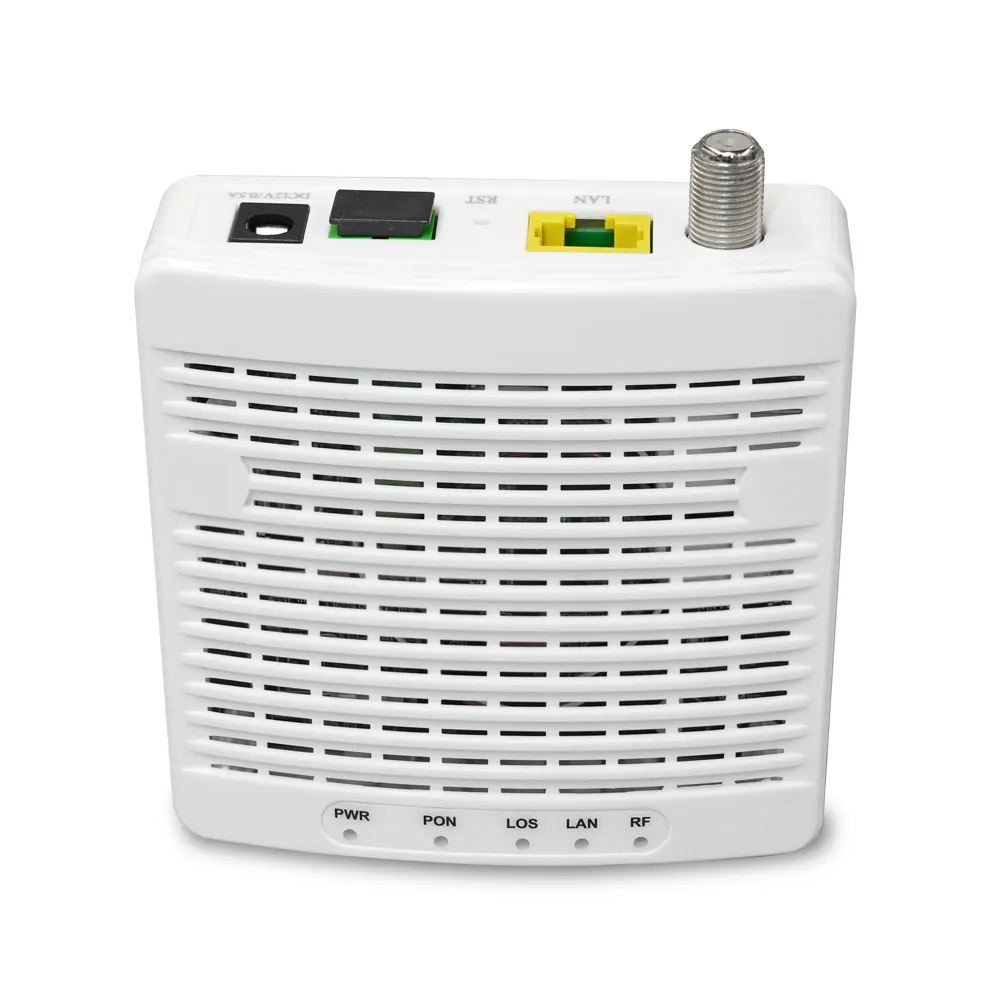

LED Indicators: PWR, PON, LOS, LAN, RF
Free Quote
Overview
The G3100-CF XPON Micro ONU 1GE CATV is a cutting-edge residential gateway designed for FTTH (Fiber To The Home) and FTTB (Fiber To The Building) applications. This device integrates advanced routing, switching, and CATV signal conversion capabilities, making it an ideal solution for both residential and SOHO users.
With compliance to ITU-T G.984 and IEEE 802.3ah standards, the G3100-CF ensures reliable and secure broadband access, delivering high-speed internet and CATV services over a single fiber connection.
Key Features of XPon Micro ONU 1GE CATV
- 1GE Ethernet Port: Supports auto-negotiation and MDI/MDIX auto-sensing for seamless connectivity.
- CATV Support: Converts CATV optical signals into electrical RF signals, enabling high-quality video delivery.
- Advanced Routing: Built-in Layer 3 routing and residential gateway functionality with support for NAT, QoS, VLAN, and more.
- Dual PON Mode: Automatically adapts to GPON or EPON modes, ensuring compatibility with various OLTs.
- Remote Management: Supports TR-069 and OMCI for easy remote configuration, software updates, and maintenance.
- High-Speed Data Transfer: GPON upstream up to 1.244Gbps and downstream up to 2.488Gbps.
- Robust Design: Carrier-grade reliability with dual software partitions for automatic rollback and integrity checking.
Specifications of XPon Micro ONU 1GE CATV
| Item | Specification |
|---|---|
| Working Wavelength | PON: TX1310nm, RX1490nm; CATV: 1150~1600nm |
| Transmission Distance | Up to 20km |
| Transmission Rate | GPON: Up 1.244Gbps, Down 2.488Gbps; EPON: Up/Down 1.244Gbps |
| Optical Connector | SC/APC |
| CATV Optical Power Range | +2 ~ -18 dBm |
| RF Output Level | ≥80 dBμV |
| Power Supply | 110V~255V AC, DC 12V/1A |
| Operating Temperature | -10°C ~ 45°C |
| Humidity | 5% ~ 95% (non-condensing) |
Applications
The ONU 1GE CATV is perfect for:
- FTTH (Fiber To The Home): Provides high-speed internet and CATV services to residential users.
- FTTB (Fiber To The Building): Ideal for small office and multi-dwelling unit (MDU) deployments.
- CATV Networks: Delivers high-quality video content over fiber optic networks.
Why Choose G3100-CF XPON Micro ONU 1GE CATV?
- Carrier-Grade Reliability: Designed for high availability and easy maintenance.
- Flexible Deployment: Supports both GPON and EPON modes, ensuring compatibility with various network infrastructures.
- Advanced Features: Includes VLAN, QoS, NAT, and firewall capabilities for enhanced network performance and security.
- Easy Management: Remote configuration and updates via TR-069 and OMCI.
