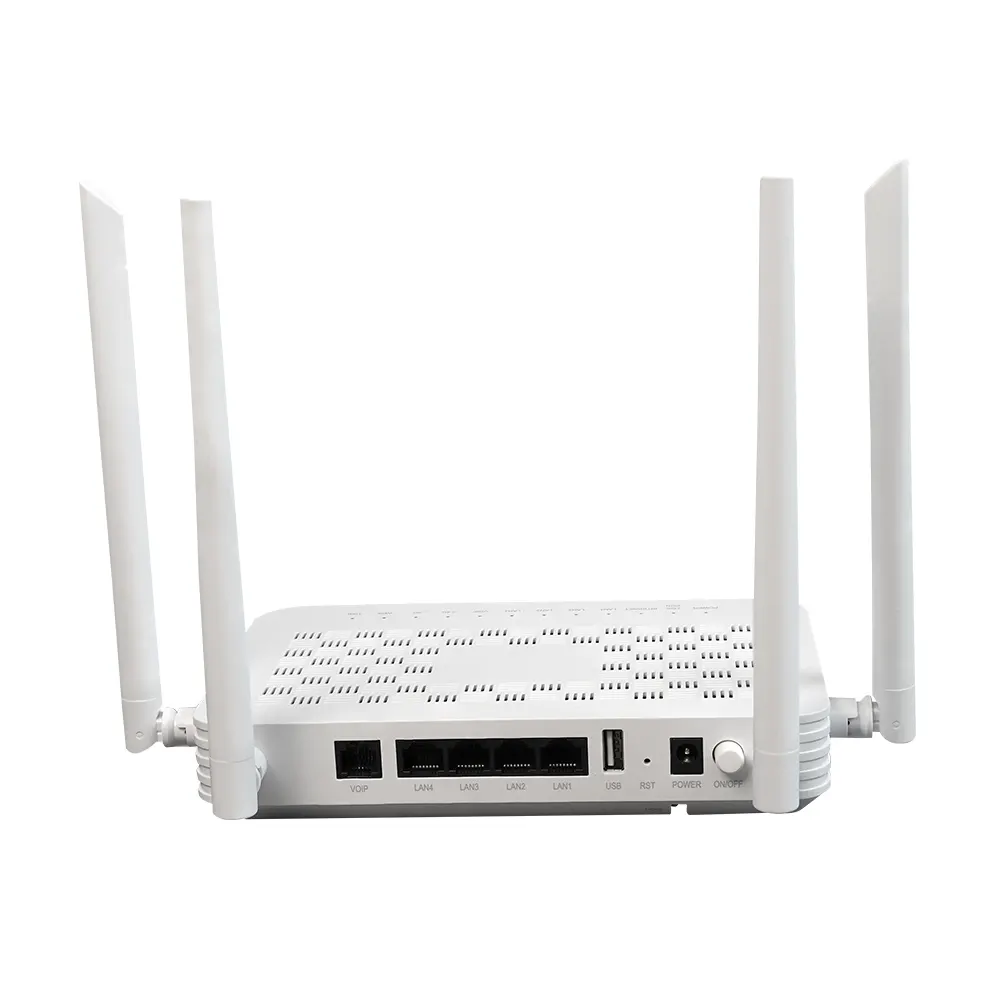

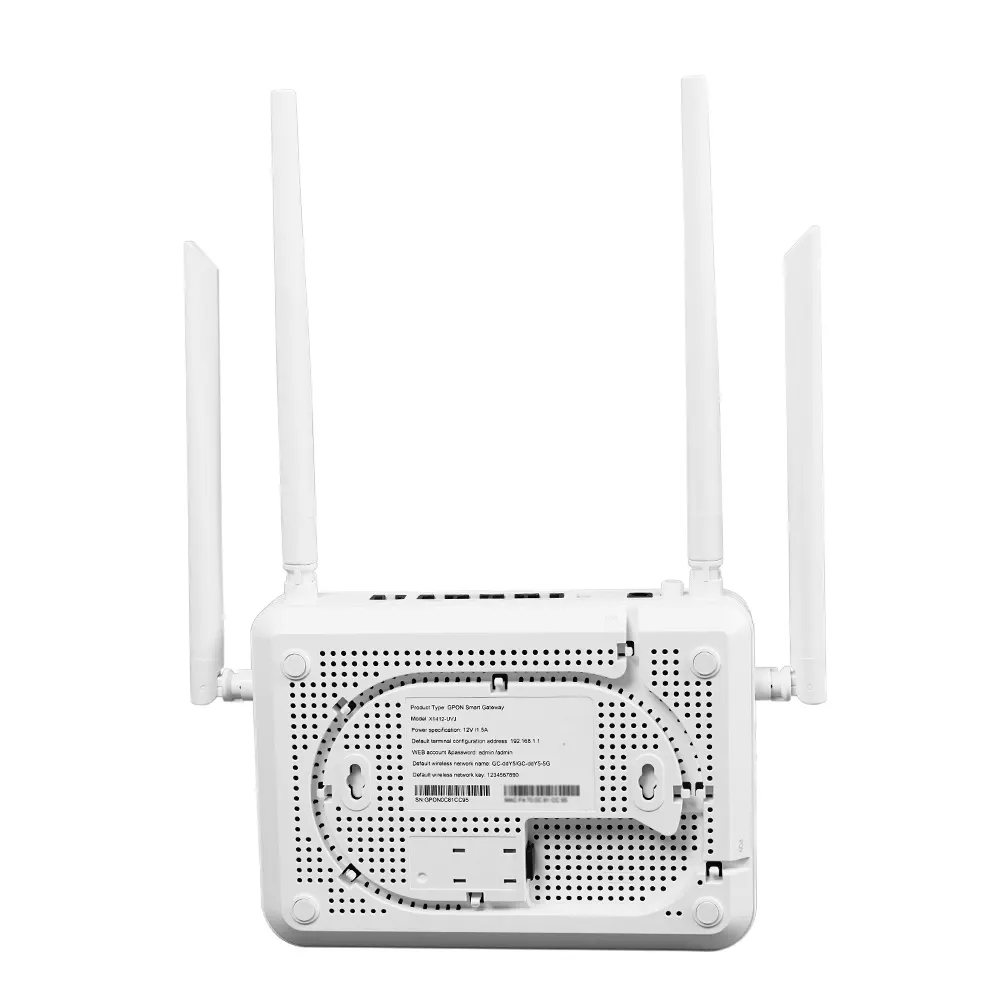

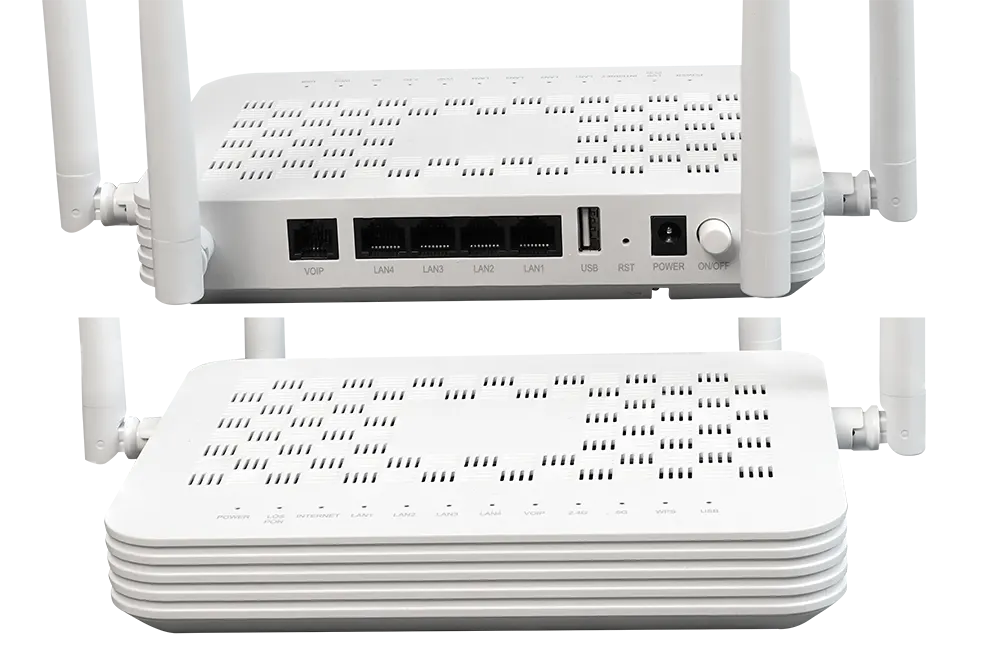

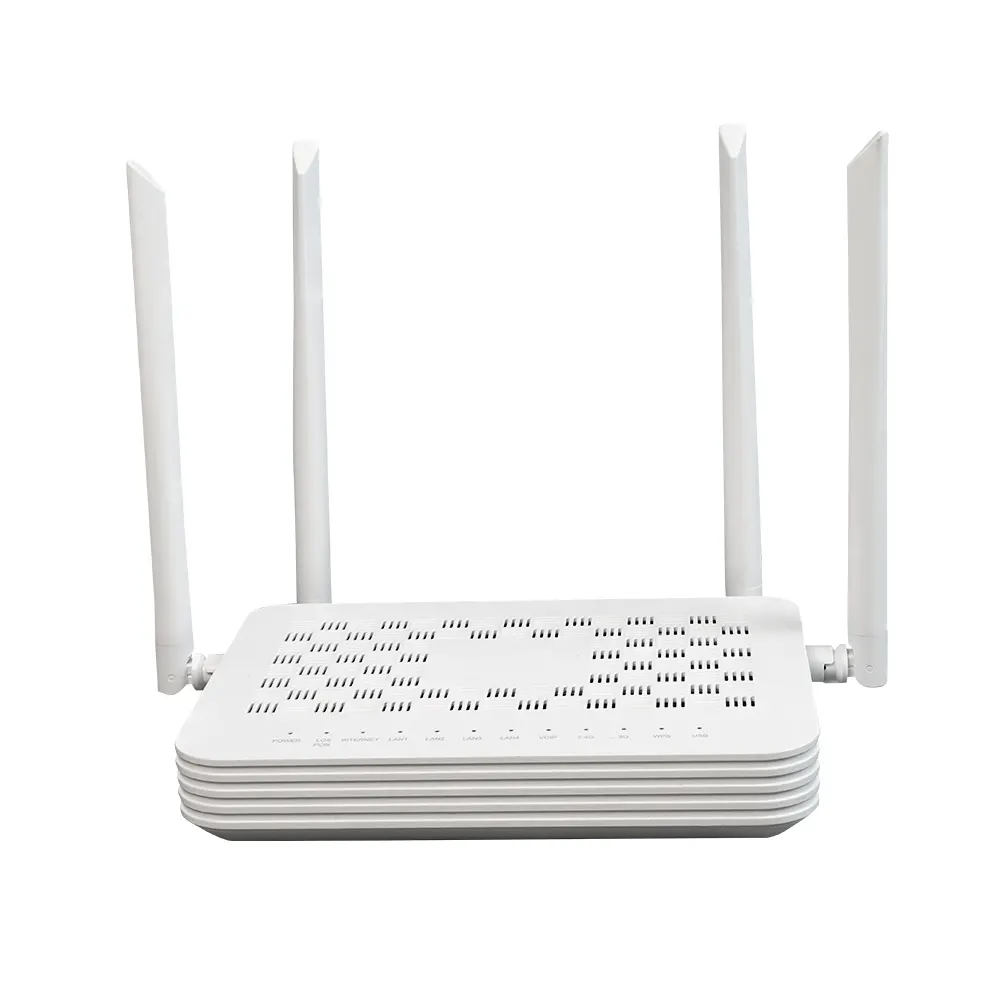

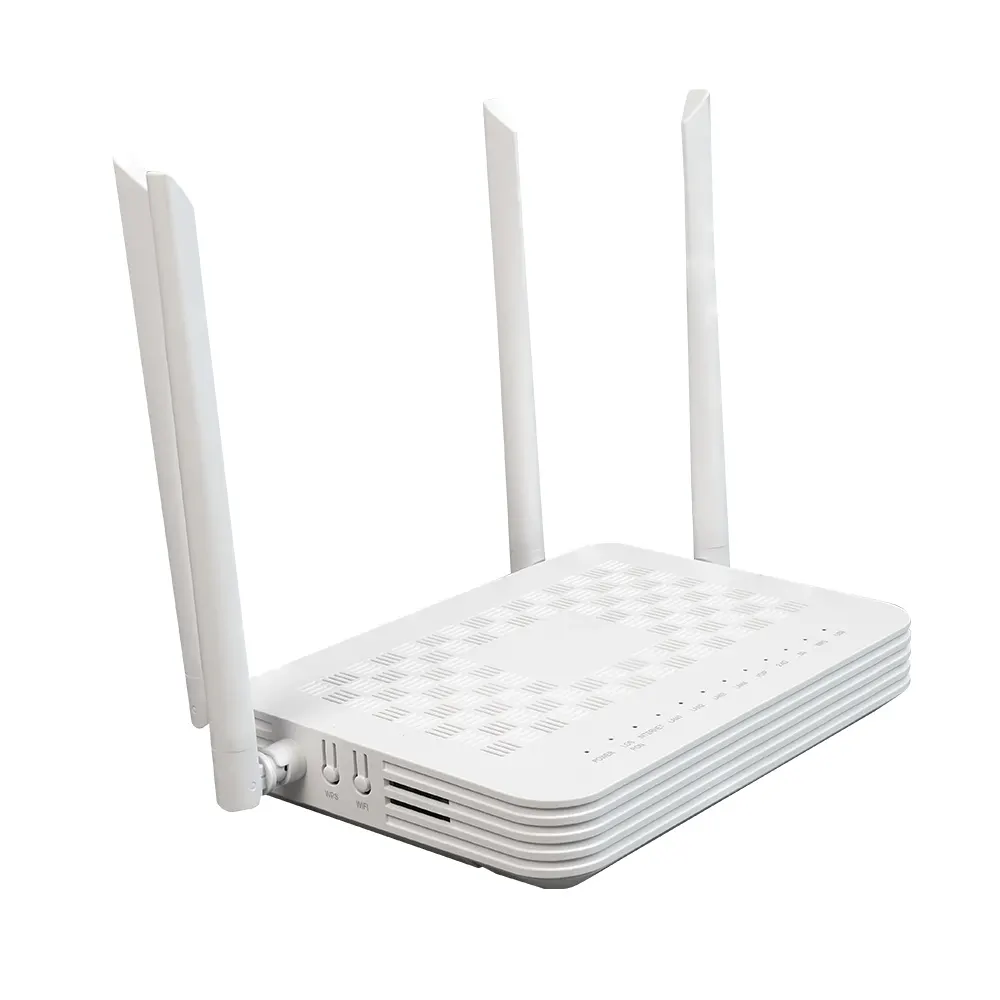

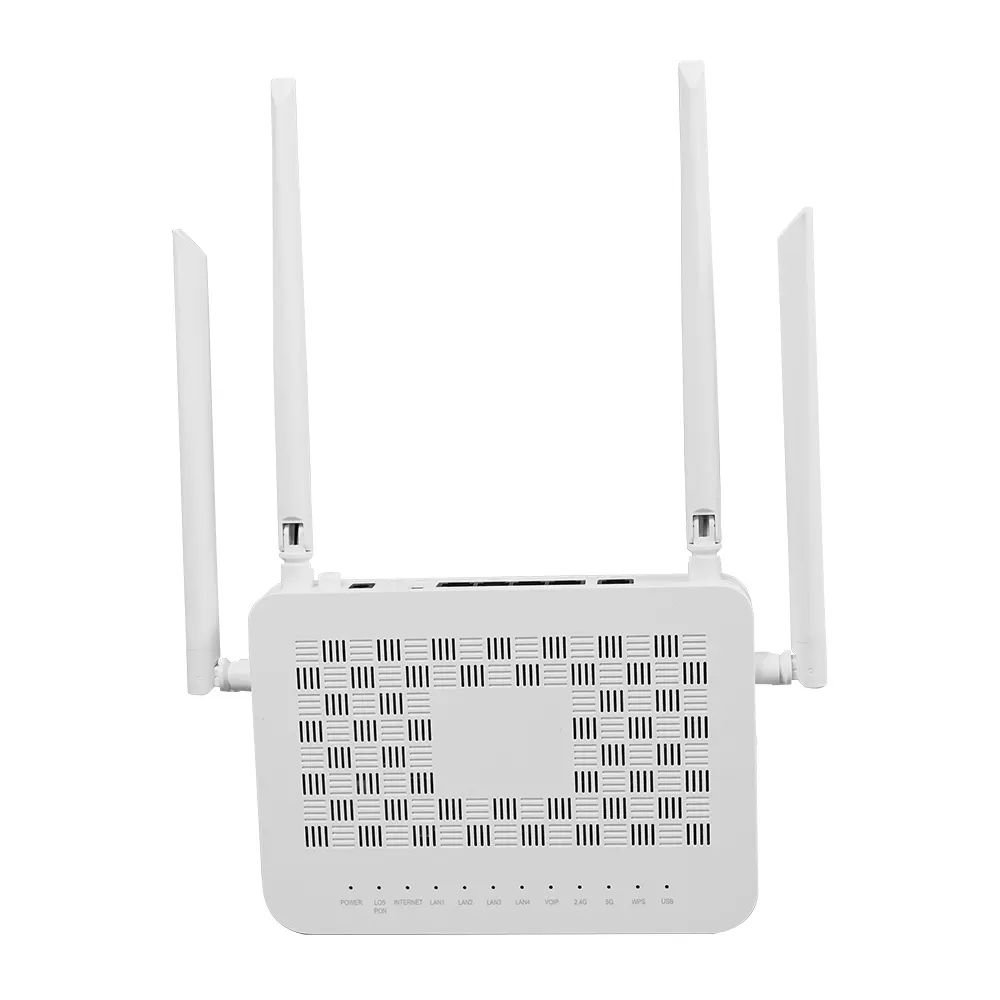

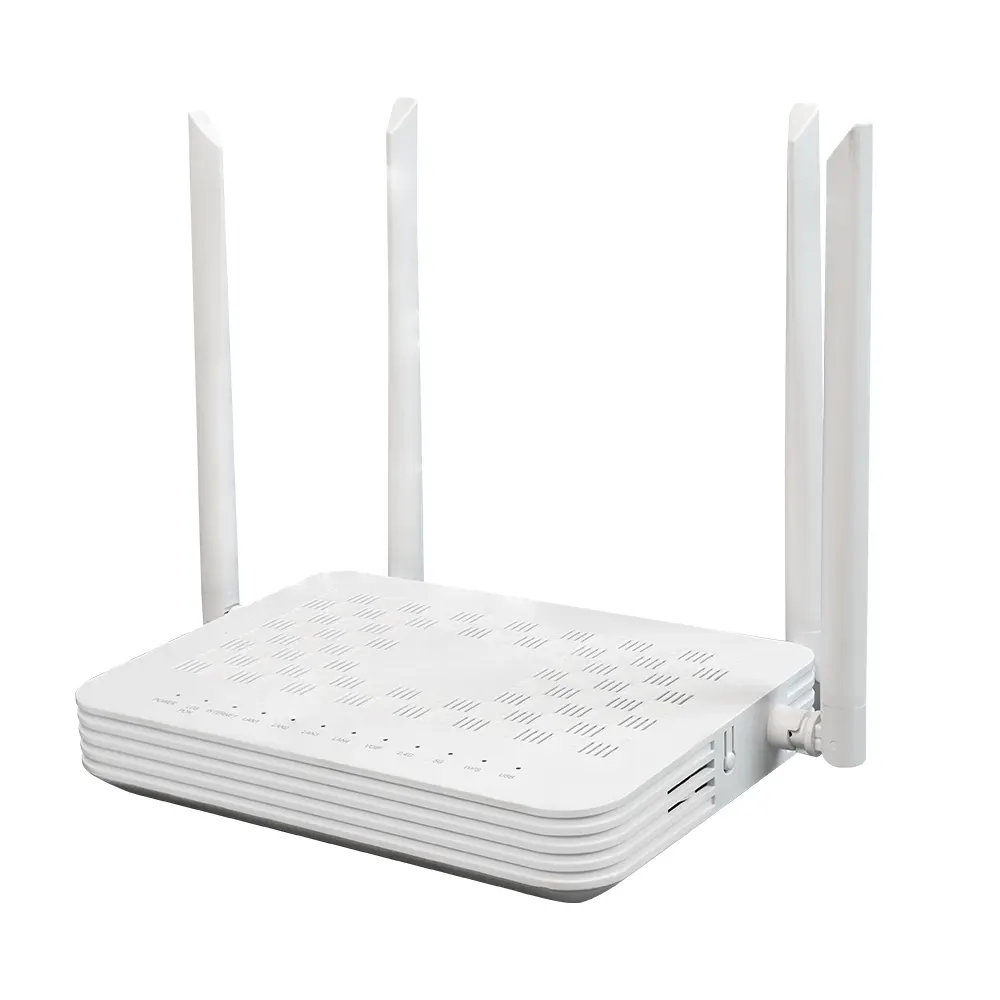

X1412 XPON ONU Wifi5 Router – High-Performance Dual-Band WiFi5 Router with GPON/EPON Support
- 1 x G/EPON interface (SC/UPC/APC)
- 4 x Ethernet ports (10/100/1000 Mbps, RJ-45)
- 1 x VOIP port (RJ-11)
- 1 x USB 3.0 port
- Dual-band WiFi5 (2.4GHz & 5GHz)
- Size: 190mm x 135mm x 33mm
- Power Consumption: ≤8W
- Power Supply: 12V/1.5A
- 2.4GHz Wifi: 300Mbps, supports 802.11b/g/n
- 5GHz Wifi: 867Mbps, supports 802.11a/n/ac
Free Quote
Product Overview
The X1412 XPON ONU Wifi5 Router is a state-of-the-art optical network terminal designed for fiber-optic network operators. It supports both GPON and EPON technologies, providing ultra-high bandwidth access for home and business users. With dual-band WiFi5 (2.4GHz & 5GHz), this router ensures seamless wireless connectivity, while its multiple ports (4 GE, 1 VoIP, 1 USB 3.0) offer versatile wired connections.
Key Features of XPON ONU Wifi5 Router
- Dual-Band WiFi5: 2.4GHz (300Mbps) and 5GHz (867Mbps) for high-speed wireless connectivity.
- GPON/EPON Dual-Mode: Supports both GPON and EPON upstream technologies for flexible deployment.
- 4 Gigabit Ethernet Ports: High-speed wired connections for multiple devices.
- VoIP Support: Integrated RJ-11 port for voice-over-IP services.
- USB 3.0 Port: High-speed data transfer and storage options.
- Advanced QoS: 8 queues with strict priority for optimized traffic management.
- IPv6/IPv4 Dual Stack: Future-proof networking with support for both IPv4 and IPv6.
- WPS Push Button: Easy and secure Wi-Fi setup with WPS functionality.
Technical Specifications of XPON ONU Wifi5 Router
| Interface | Details |
|---|---|
| G/EPON Port | 1 x SC/UPC/APC, GPON (Upstream: 1.25Gbps, Downstream: 2.48Gbps), EPON (Upstream: 1.25Gbps, Downstream: 1.25Gbps) |
| Ethernet Ports | 4 x RJ-45 (10/100/1000 Mbps) |
| VoIP Port | 1 x RJ-11, supports G.711, G.729, G.722 standards |
| USB Port | 1 x USB 3.0 |
| WiFi5 | Dual-band (2.4GHz & 5GHz), 2.4G: 300Mbps, 5G: 867Mbps, WPA3 security |
| Power Supply | 12V/1.5A |
| Dimensions | 190mm x 135mm x 33mm |
| Operating Temperature | 0°C to 45°C |
Why Choose X1412 ONU Router?
The X1412 XPON ONU Wifi5 Router is the ideal solution for fiber-optic network operators and end-users seeking high-speed internet access with advanced features. Its dual-band WiFi5 ensures fast and reliable wireless connectivity, while the multiple ports provide flexibility for various wired connections. With support for both GPON and EPON, this router is future-proof and adaptable to different network environments.
